100KV Brushless Motor For Drone, 12S

0 reviews • Write a review

from

$391.04

Ex Tax: $391.04

Stock: In Stock
Model: RDDLZ-BDM-100
Weight: 1.00
SKU: RDDLZ-BDM-100

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

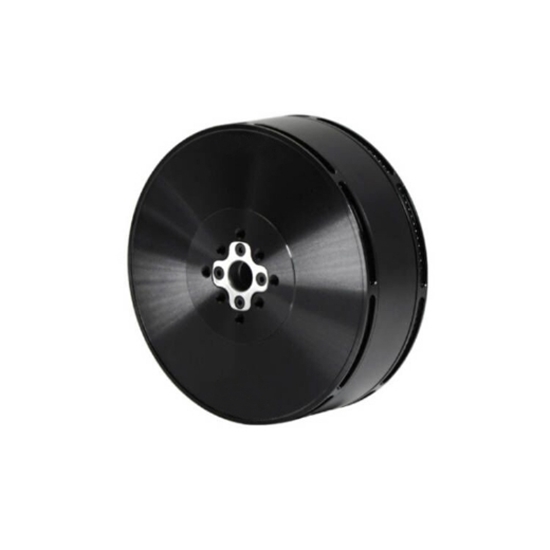

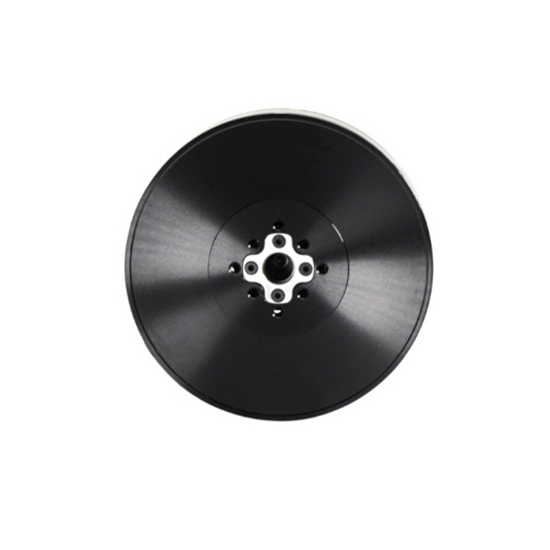

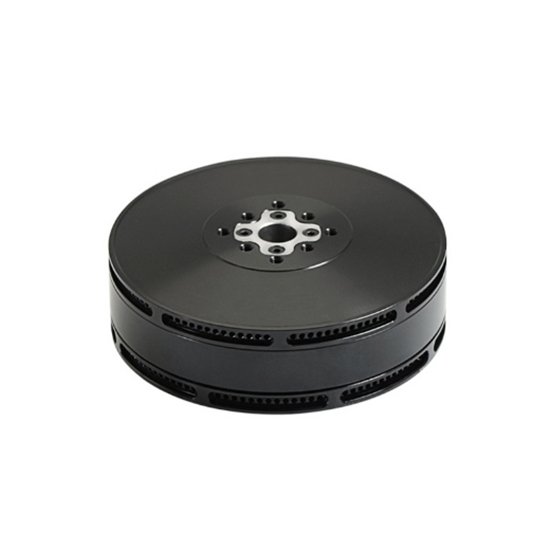

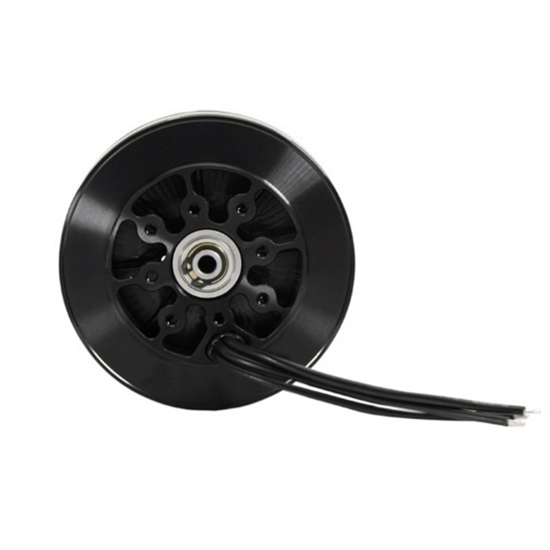

Low cost heavy lift drone motor for sale online. 100KV brushless motor should be attached to the 30-inch propeller, spin it and generate the thrust that your multi-rotor drone can fly. The 12S drone motor supports multi-rotor aircraft, suitable for various working environments.

Specifications

Model: RDDLZ-EOLO-8114
Motor KV: 100
Number of Stator Slots: 36
Number Of Rotor Poles: 42
Motor Internal Resistance: 70mΩ
Motor Size: φ88.6*35.0mm

Shaft Diameter: 12mm
Stator Outer Diameter: 81mm
Stator Thickness: 14mm
Motor Silicone Wire: 20AWG 100mm
Weight (Including Wire): 430g
Rated Voltage (Lipo): 12S

No-Load Current: 0.8A/10V
Max Continuous Power: 2400W
Max Continuous Current: 50A/30s
Recommended ESC: 40A
Recommended Propeller: C30*10
Recommended Take-off Weight of Single Axis: ≤4500g

Features

High-efficiency 100KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

Dimensions (Unit: mm)

Tips: Does higher KV mean faster speed?

KV describes the RPM (revolutions per minute) a brushless motor does per Volt that is put into it. Generally speaking, the more KV a motor has, the more RPM and more power. For example, a 9000KV brushless motor would be faster than a 2200KV motor. If KV is like horsepower, then Turns are the physical attribute of a motor.
