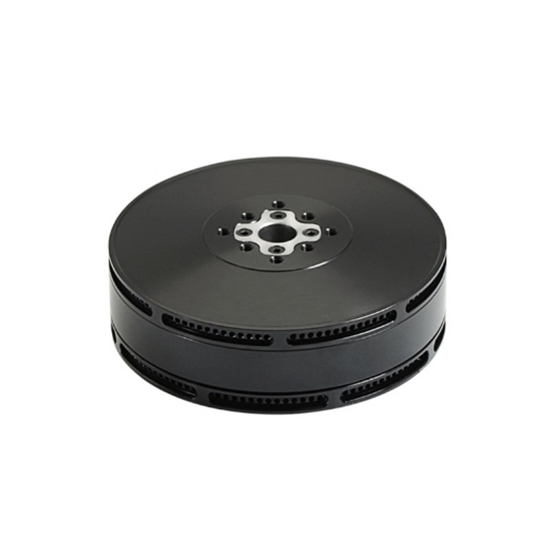

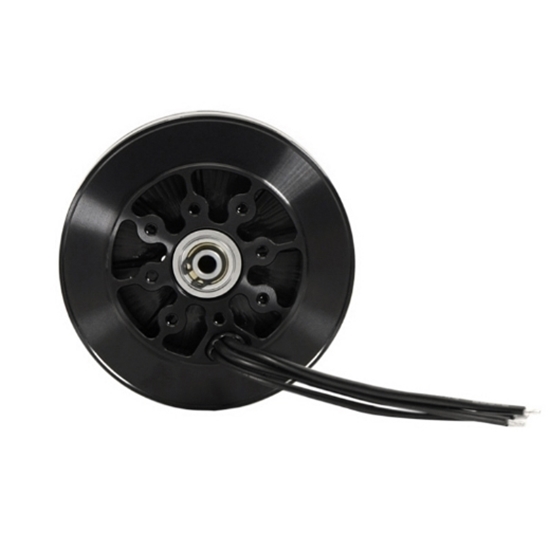

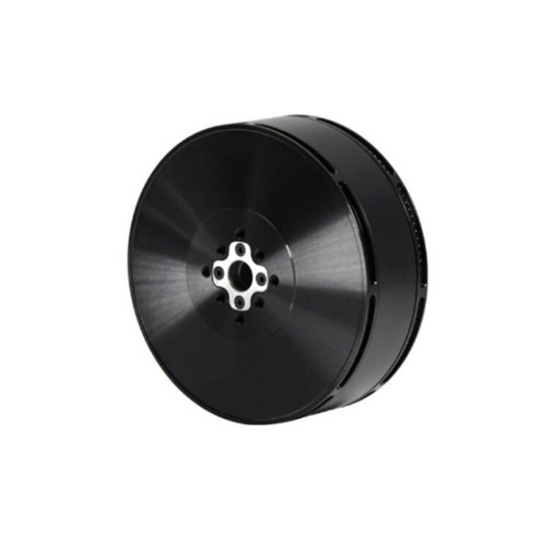

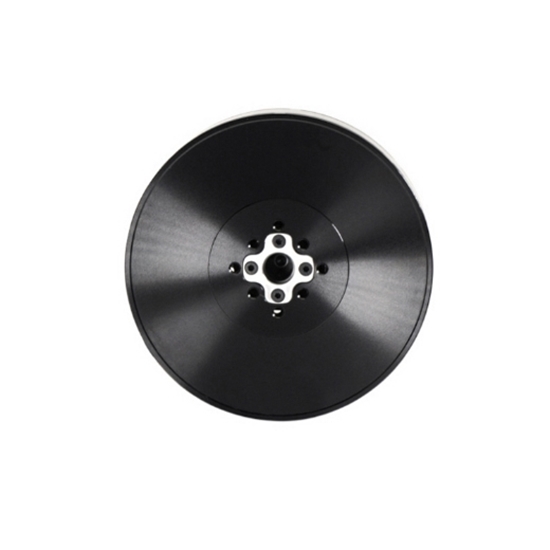

130KV Brushless Motor For Drone, 6S/12S

0 reviews • Write a review

from

$291.94

Ex Tax: $291.94

Stock: In Stock
Model: RDDLZ-BDM-130
Weight: 1.00
SKU: RDDLZ-BDM-130

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a 130KV brushless motor for the multirotor drone. 100KV/260KV heavy lift drone motors are also available. 12S/6S brushless motor works with a 22~24 inch propeller that can make your drone fly. Brushless drone motors are suitable for various working environments.

Specifications

Model	RDDLZ-EOLO-7206
Motor KV	100	130	260
Number of Stator Slots	36	36	36
Number of Rotor Poles	42	42	42
Motor Size	φ79.0*33.2mm	φ79.0*33.2mm	φ79.0*33.2mm
Shaft Diameter	4.0mm	4.0mm	4.0mm
Motor Silicone Wire	20AWG 100mm	20AWG 100mm	20AWG 100mm
Phase-to-Phase Internal Resistance	297mΩ	297mΩ	45mΩ
Motor Weight (Including Wires)	209g	200g	200g
Rated Voltage (Lipo)	12S	12S	6S
No-Load Current	0.3A/10V	0.5A/10V	1.1A/10V
Maximum Continuous Power	900W	1600W	968W
Maximum Continuous Current	18A/30s	32A/30s	32A/30s
Recommended ESC	40A	40A	50A
Recommended Propeller	C24*7.5	C24*7.5	C24*7.5

Features

High-efficiency 100KV/130KV/260KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

Dimensions (Unit: mm)

Tips: Multi-rotor Drone vs. Fixed-wing Drone

Multi-rotor: Multi-rotor refers to a rotorcraft with more than 3 axes, which adjusts the pulling force and torque through the relative rotation speed between the paddles, and controls the hovering, rotation, or flight of the aircraft. The multi-rotor UAV is the most widely used UAV style. It is easy to use, easy to maintain and has a free view of the brushless 360° panoramic gimbal. It is the main force in aerial photography. The large six-axis UAV has a load of 30 kg at the helicopter s level. The 130KV brushless motor is designed for multi-rotor drones.

Fixed wing: Fixed-wing refers to an aircraft that is heavier than air flying in the atmosphere by the forward thrust or pulling force generated by the power device, and the lift generated by the fixed wing of the fuselage. Fixed-wing UAVs are fast, have a long-range, and have a high ceiling. They are difficult to carry and are suitable for surveying, mapping and large-scale shooting. Not suitable for aerial photography in film and television.
