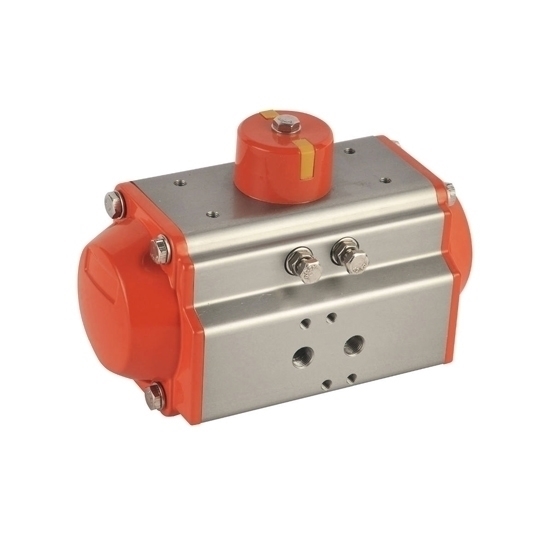

Pneumatic valve actuator is an executive device that uses air pressure to drive ball valve, butterfly or regulating valve. The pneumatic actuator is easy to repair and maintain, and has good adaptability to the environment.

Specifiation

• Model: RDDLZ-AT100D
• Bore Size: 100mm (3.9 inch)
• Air Supply Port: 1/4 inch
• Power Source: Compressed Air
• Actuator Type: Double Acting
• Air Pressure: 2.5bar ~ 8bar
• Max Working Pressure: 10bar
• Operating Temperature (Optional): -20℃ ~ 80℃, -35℃ ~ 80℃, -20℃ ~ 150℃
• Rotation Angle: 90°±5%
• Body Material: Aluminum Alloy
• Life Time: One Million Time

Dimensions

RDDLZ-AT100D

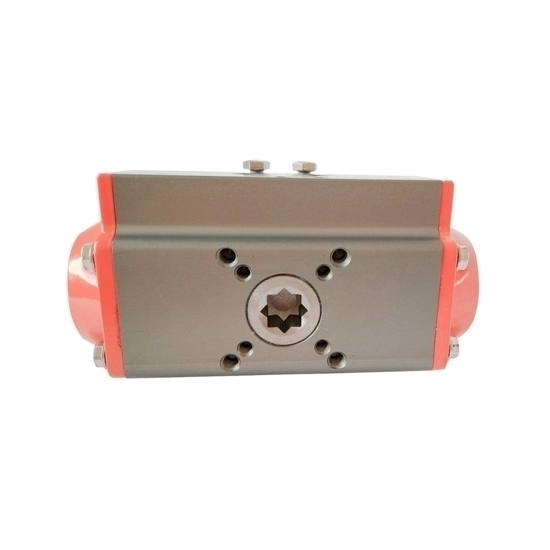

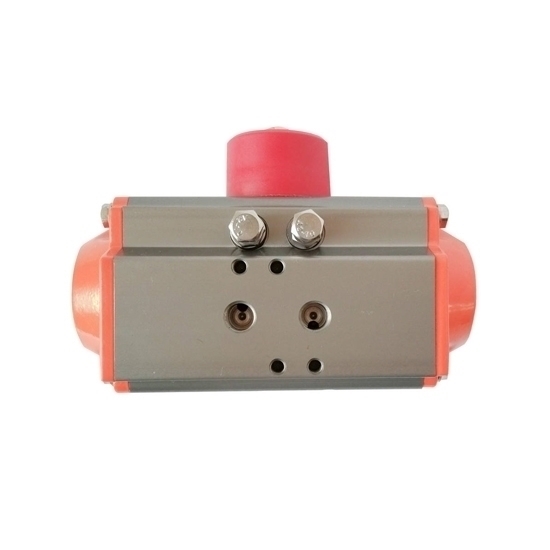

Details

Tips: What is a pneumatic valve actuator?

Pneumatic valve actuators are actuators that use air pressure to drive open, close or adjust valves, also known as pneumatic actuators or pneumatic devices, but they are generally called pneumatic heads. Pneumatic actuators are sometimes equipped with certain auxiliary devices. Commonly used are valve positioners and handwheel mechanisms. The function of the valve positioner is to use the feedback principle to improve the performance of the actuator, so that the actuator can achieve accurate positioning according to the control signal of the controller. The function of the handwheel mechanism is to use it to directly control the control valve to maintain normal production when the control system is powered off, gas out, the controller has no output or the actuator fails.
