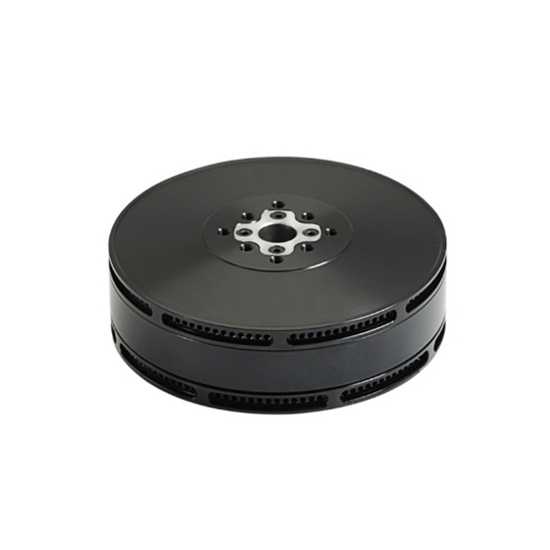

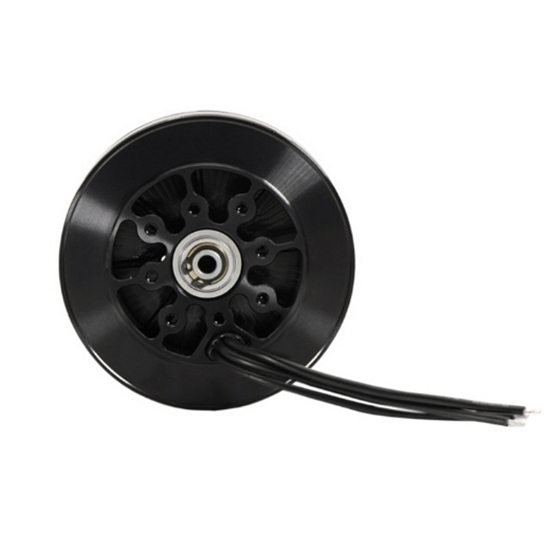

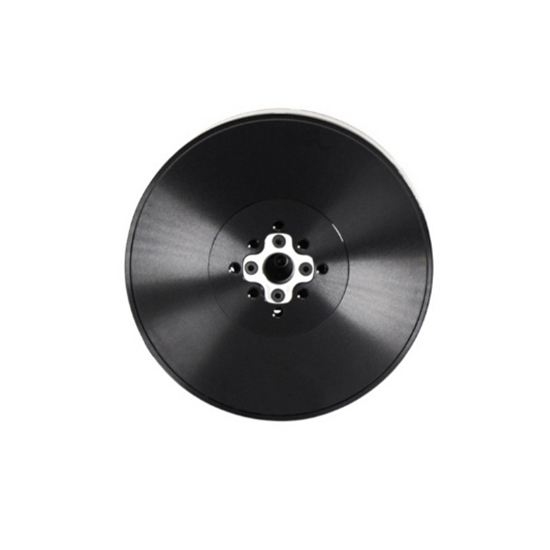

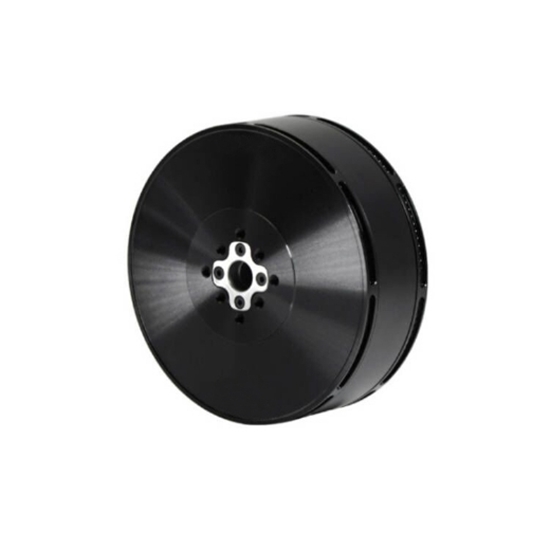

170KV Brushless Motor For Drone, 6S/12S

0 reviews • Write a review

from

$322.38

Ex Tax: $322.38

Stock: In Stock
Model: RDDLZ-BDM-170
Weight: 1.00
SKU: RDDLZ-BDM-170

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap heavy lift drone motor features 90KV, 110KV, 135KV and 170KV. 6S/12S brushless motor is suitable for heavy lift drone position and speed control. Small drone motor works with 26/28/29 inch propellers that can generate upward thrust to make your drone fly.

Specifications

Model	RDDLZ-EOLO-7208
Motor KV	90	110	135	170
Number of Stator Slots	36	36	36	36
Number of Rotor Poles	42	42	42	42
Motor Size	φ79.0*27.0mm	φ79.0*27.0mm	φ79.0*27.0mm	φ79.0*27.0mm
Shaft Diameter	12.0mm	12.0mm	12.0mm	12.0mm
Motor Silicone Wire	20AWG 100mm	20AWG 100mm	20AWG 100mm	20AWG 100mm
Phase-to-Phase Internal Resistance	253mΩ	173mΩ	125mΩ	76mΩ
Motor Weight (Including Wires)	236g	240g	237g	240g
Rated Voltage (Lipo)	12S	12S	6S	6S
No-Load Current	0.4A/10V	0.5A/10V	0.6A/10V	0.8A/10V
Maximum Continuous Power	1150W	1500W	750W	950W
Maximum Continuous Current	23A/30s	30A/30s	30A/30s	38A/30s
Recommended ESC	40A	40A	50A	50A
Recommended Propeller	CN268/CN289.5/C289.5/CL289.5	CN268/CN289.5/C28*9.5	C289.5/CN289.5	C289.5/CL289.5/CN28*9.5

Features

High-efficiency 90KV/110KV/135KV/170KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

Dimensions (Unit: mm)

Tips: Which motor is suitable for drones?

Generally, brushed motors are used for the smallest drones, while larger drones and UAVs will use brushless motors because they can carry the extra weight of additional electronics. Brushless drone motors also require an electronic speed controller (ESC) to operate.
