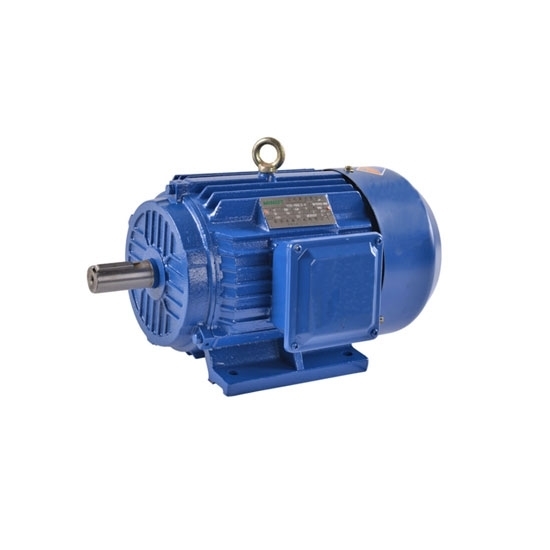

1.5 Hp (1.1kW) 3 Phase 4 Pole AC Induction Motor

0 reviews • Write a review

from

$442.23

Ex Tax: $442.23

Stock: In Stock
Model: RDDLZ-IM-11004P
Weight: 1.00
SKU: RDDLZ-IM-11004P

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1.5 hp (1.1kW) 3-phase 4-pole AC induction motor or asynchronous motor features 1400rpm of rated speed with Totally Enclosed Fan Cooled design. It can widely used in various kinds of general purpose machineries like fans, pumps, compressors, machine tools, transportation and so on.

Specification

Basics	Model	RDDLZ-Y2-90S-4
	Design Standard	IEC
	Weight	19kg
	Frame Type	90S
	Mounting	Horizontal Foot Mounting (B3)
	Wiring Method	Output≤4hp (3kW), Y connection Output≥5.5hp (4kW), Delta connection
	Degree of protection	IP54/IP55
	Insulation Class	Class F
	Cooling	TEFC (compliance to IC 411 code of IEC 60034-6)
Technical Parameters	Nominal Output	1.5hp or 1.1kW
	Pole Number	4-pole
	Nominal Speed	1400rpm
	Frequency	50Hz
	Nominal Voltage	380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
	Nominal Current (full load)	2.85A/4.94A
	Efficiency	76.2%
	Power Factor (cosφ)	0.77
	Nominal Torque (Tn)	7.5Nm
	Locked Rotor Torque/Nominal Torque (TST/Tn)	2.3
	Maximum Torque/Nominal Torque (Tmax/Tn)	2.3
	Locked Rotor Current/Nominal Current (IST/In)	6.0
	Noise Level	61dB/(A)
Environment	Ambient Temperature	-15℃+40℃
	Altitude	Less than 1000m above sea level

3-phase Induction Motor Dimensions

Frame Type	Mounting Dimensions (mm)										Overall Dimensions
Frame Type	A	A/2	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90S	140	70	100	56	24	50	8	20	90	10	180	195	155	260	320

Wiring Diagrams (Three-phase squirrel-cage induction motor)

Details

Tips: Induction motor’s characteristics

Compared with other motors, the induction motor has the advantages such as simple structure, convenience in manufacture, use and maintenance, high operational reliability, light weight, low cost. Taken the three-phase induction motor as an example, compared with the DC motor with the same power and speed, the former weight is only half of the latter at one-third cost. It also has the load characteristics of constant speed that can satisfy machinery driving requirement of a majority of industrial and agricultural production. Its limitation is that due to the poor speed controlling performance caused by the fixed slip between its rotate speed and the synchronous speed of its rotating magnetic field, so it is not so economic or convenient as direct current motor under the usage occasion that requires a wider range of smooth speed control such as rolling mill, winding engine, large size machine tool etc. In addition, induction motors draw reactive power from the power system during the operation, resulting in the deterioration of power factor of power system. Therefore, on the occasion of high power and low speed such as driving ball grinding mill and compressor, using synchronous motors is more reasonable.
