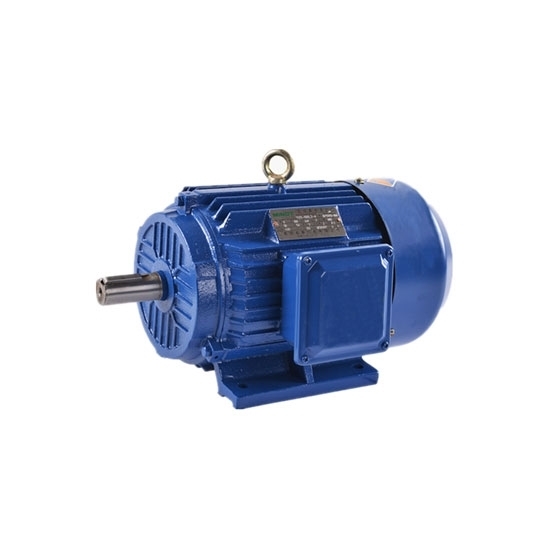

1.5 Hp (1.1kW) 3 Phase 6 Pole AC Induction Motor

0 reviews • Write a review

from

$494.68

Ex Tax: $494.68

Stock: In Stock
Model: RDDLZ-IM-11006P
Weight: 1.00
SKU: RDDLZ-IM-11006P

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1.5 hp (1.1kW) 3-phase 6-pole AC induction motor or asynchronous motor has its unique features of simple and rugged construction, low cost and minimum maintenance, high reliability and easy operation. It can widely used in various kinds of general purpose machineries like fans, pumps, compressors, machine tools, transportation and so on.

1.5hp Induction Motor Specification

Basics	Model	RDDLZ-Y2-90L-6
	Design Standard	IEC
	Weight	24kg
	Frame Type	90L
	Mounting	Horizontal Foot Mounting (B3)
	Wiring Method	Output≤4hp (3kW), Y connection Output≥5.5hp (4kW), Delta connection
	Degree of protection	IP54/IP55
	Insulation Class	Class F
	Cooling	TEFC (compliance to IC 411 code of IEC 60034-6)
Technical Parameters	Nominal Output	1.5hp or 1.1kW
	Pole Number	6-pole
	Nominal Speed	910rpm
	Frequency	50Hz
	Nominal Voltage	380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
	Nominal Current (full load)	3.18A/5.5A
	Efficiency	72%
	Power Factor( cosφ)	0.73
	Nominal Torque (Tn)	11.54Nm
	Locked Rotor Torque/Nominal Torque (TST/Tn)	2.0
	Maximum Torque/Nominal Torque (Tmax/Tn)	2.1
	Locked Rotor Current/Nominal Current (IST/In)	5.5
	Noise Level	57dB/(A)
Environment	Ambient Temperature	-15℃+40℃
	Altitude	Less than 1000m above sea level

3-phase Induction Motor Dimensions

Frame Type	Mounting Dimensions (mm)										Overall Dimensions
Frame Type	A	A/2	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90L	140	70	125	56	24	50	8	20	90	10	180	195	155	250	345

Wiring Diagrams (Three-phase squirrel-cage induction motor)

Details

Tips: Induction motor’s applications
Induction motor is an AC motor whose ratio between loaded rotate speed and the frequency connected to the grid is not constant. It varies with the size of load. The larger the load torque is, the lower the rotor speed is.
Induction motor, mainly running as an electric motor with the power range from a few watts to thousands of kilowatts, is the most widely used to provide power for a variety of mechanical equipment and household appliances. Three-phase induction motor are mostlt used to drive machine tools, small and medium steel rolling equipment, fans, pumps, light industry machinery, metallurgy and mining machinery etc.Single-phase induction motor is widely used in fans, washing machines, refrigerators, air conditioners and other household appliances. Induction motor can also be used as the generator for wind power plants and small hydro-power stations.
