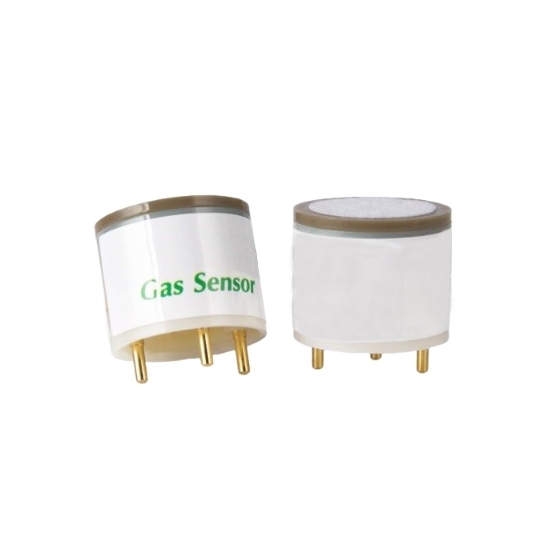

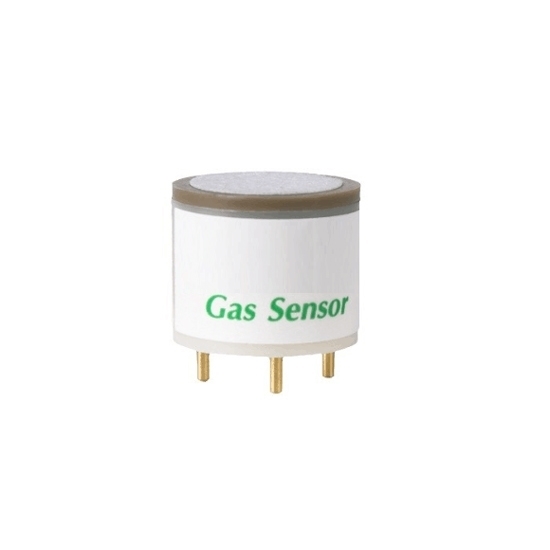

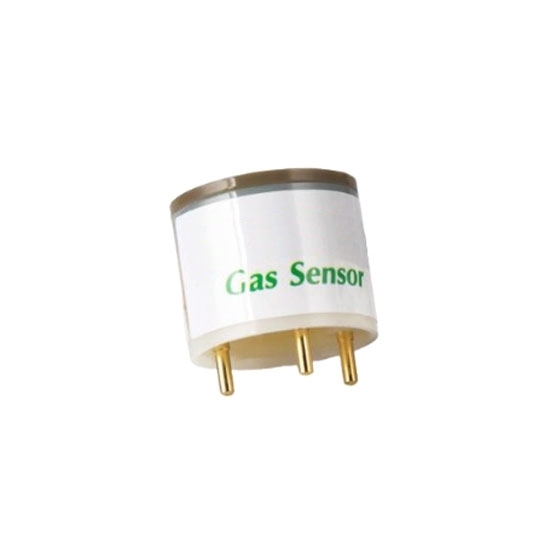

Nitric Oxide (NO) Gas Sensor, 0-50/250/1000/5000ppm

0 reviews • Write a review

from

$182.99

Ex Tax: $182.99

Stock: In Stock
Model: RDDLZ-GS-NO
Weight: 1.00
SKU: RDDLZ-GS-NO

Available Options

Measuring Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Higher quality nitric oxide (NO) gas sensor for sale! Available in 0-50/250/1000/5000 ppm ranges, with 1 ppm resolution and ≤30s response time. Runs on +300mV bias voltage and 5~30Ω load resistance. Ideal for industrial, mining, and environmental monitoring.

Specification

Model	RDDLZ-S4-NO
Detection Principle	Electrochemical Three-Electrode
Detection Range	0-50ppm, 0-250ppm, 0-1000ppm, 0-5000ppm (optional)
Maximum Load Concentration	1000ppm
Sensitivity	400±100 nA/ppm
Zero Drift	-2~10ppm
Resolution	1ppm (0-50/250/1000ppm), 2ppm (0-5000ppm)
Response Time	≤30s
Bias Voltage	+300mV
Load Resistance	5~30Ω
Temperature Range	-30~50°C
Humidity Range	15%~90% RH (Non-condensing)
Repeatability	<±2% Signal/Month
Long-term Stability	<2% Signal/Month
Linearity	Linear up to 1000ppm
Operating Pressure	90~110 kPa

Feature

High accuracy & long lifespan: Reliable performance over time.
Fast response & quick recovery: The nitric oxide gas sensor detects changes instantly and resets quickly.
Low power consumption & high sensitivity: The NO gas sensor is efficient and highly precise.
Wide linear range: The gas sensor works across multiple concentration levels.
Strong anti-interference: Stable in complex environments.
Excellent repeatability & stability: Consistent and dependable readings.

Dimension (Unit: mm)

Crossover Interference

The nitric oxide (NO) gas sensor also responds to gases other than the target gas. For reference, the response characteristics of the sensor to several common interfering gases are listed in the table below. The data in the table are typical responses of interfering gases at a given concentration.

Interfering Gas	Gas Concentration Used (ppm)	Displayed Value (ppm/NO)
CO	100	0
SO₂	23	2
H₂S	26	35
Cl₂	18	1.5
NO₂	20	10
HF	10	1

Basic Test Circuit

Application

This NO gas sensor is suitable for industrial production plants, media mine shafts and alleys, environmental pollution emissions, industrial exhaust gas detection, instrumentation, storage of fuel plant warehouses, chemical plant production environment monitoring.

Tips: Can the NO gas sensor detect nitrogen dioxide (NO₂) as well?

No, this NO sensor is specifically designed for nitric oxide (NO) detection. While some cross-sensitivity to NO₂ may exist, a dedicated NO₂ sensor should be used for accurate nitrogen dioxide monitoring. If both gases need to be measured, a dual-sensor system can be used to differentiate between NO and NO₂ concentrations.
