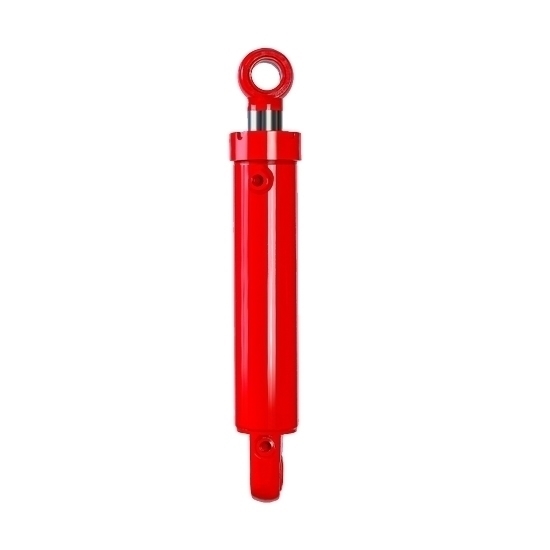

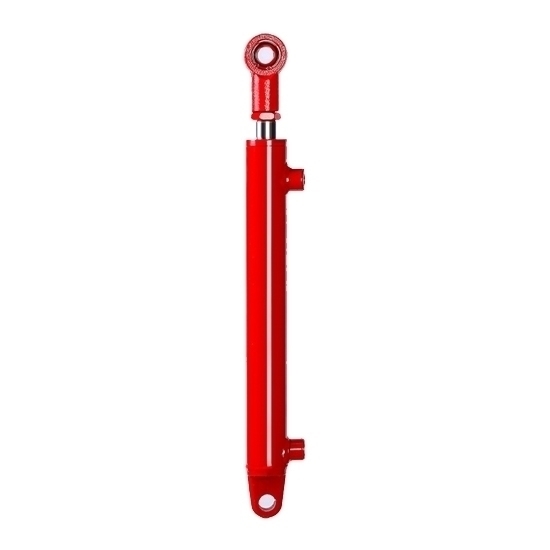

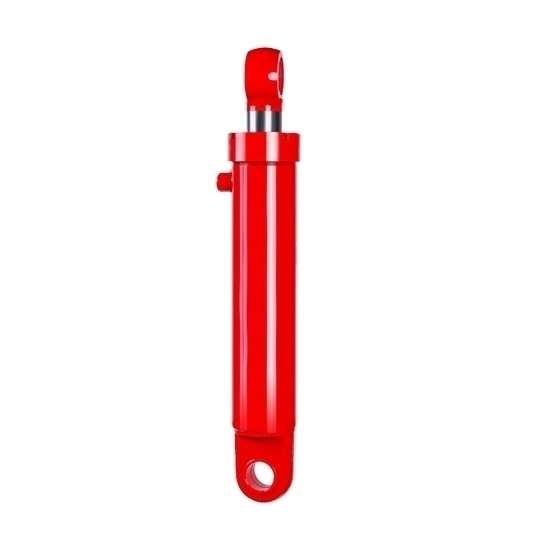

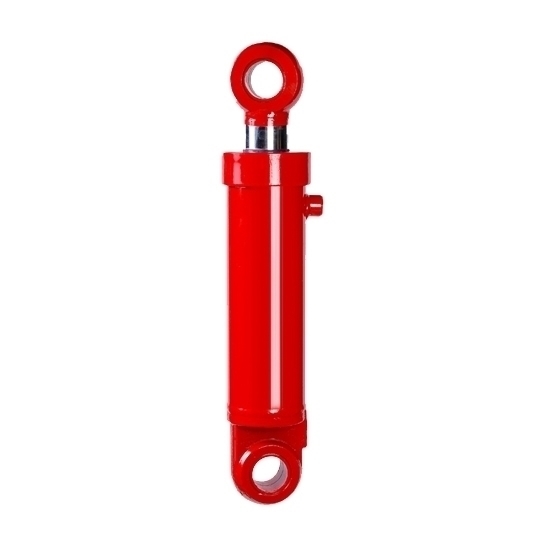

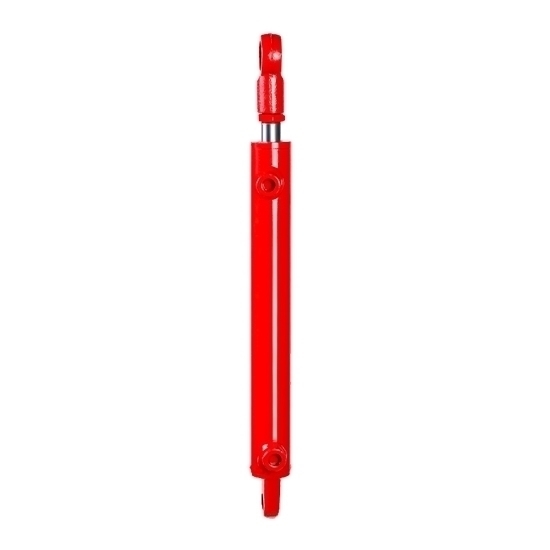

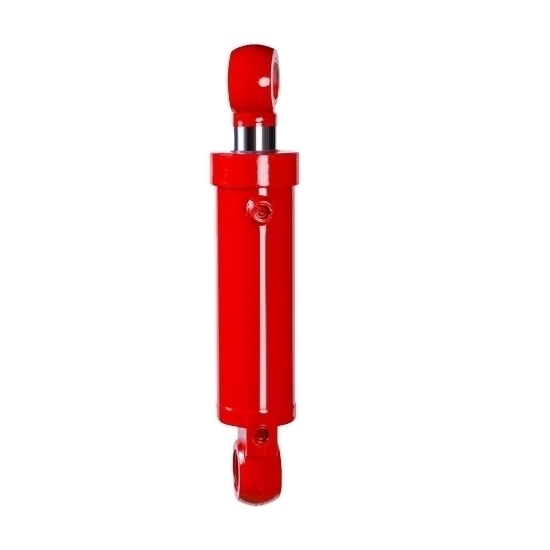

Double Acting Welded Hydraulic Cylinder, 36 Inch (900mm) Stroke

0 reviews • Write a review

from

$494.69

Ex Tax: $494.69

Stock: In Stock
Model: RDDLZ-WHC-900MM
Weight: 1.00
SKU: RDDLZ-WHC-900MM

Available Options

Bore Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Heavy duty double acting welded hydraulic cylinder is a type of hydraulic cylinder used in various hydraulic systems to provide linear motion. Hydraulic cylinders are essential components in many industrial and mobile applications, such as mini excavators, robots, log splitters, dump trucks, press machine and dump trailers.

Specification

Model	RDDLZ-HSG40900	RDDLZ-HSG50900	RDDLZ-HSG80900	RDDLZ-HSG100900
Acting Type	Double Acting
Stroke	36 inch (900mm)
Rated Pressure	16Mpa
Installation	Double Ear Welding Type
Speed Ratio	1:3
Bore Diameter	φ40mm	φ50mm	φ80mm	φ100mm
Load Capacity	2 Ton	3 Ton	8 Ton	12 Ton
Rated Push Force	30772N (3 Ton)	30772N (3 Ton)	80384N (8 Ton)	80384N (8 Ton)
Rated Pull Force	21121N (2 Ton)	21121N (2 Ton)	48984N (5 Ton)	49014N (5 Ton)
Oil Port	18*1.5	18*1.5	18*1.5	22*1.5

Note: If you need to customize welded hydraulic cylinders of other sizes, including bore diameter, stroke, etc., please feel free to contact us.

Dimension (Unit: mm)

RDDLZ-HSG40900

RDDLZ-HSG50900

RDDLZ-HSG80900

RDDLZ-HSG100900

Model	Inner Diameter	Outer Diameter	Rod Diameter	Stroke	Oil Port	Pin Hole	Installation Distance	Total Length
RDDLZ-HSG40900	40	50	25	900	18*1.5	20	1130	1180
RDDLZ-HSG50900	50	60	28	900	18*1.5	20	1140	1190
RDDLZ-HSG80900	80	90	50	900	18*1.5	40	1200	1280
RDDLZ-HSG100900	100	112	63	900	22*1.5	50	1270	1360

Tips: Do you need to prime a welded hydraulic cylinder?

Priming a welded hydraulic cylinder is not a standard practice in hydraulic system maintenance. Hydraulic cylinders typically consist of a cylinder barrel, piston, and seals. The welding process may be used during the cylinder's manufacturing or repair, but it doesn't require priming like a pump or other hydraulic components.

However, proper welding techniques should be employed to ensure the cylinder's structural integrity and prevent defects that could compromise its functionality. This involves selecting suitable welding methods and materials, maintaining cleanliness, and adhering to industry standards and guidelines. Quality control measures, such as non-destructive testing, should be implemented to verify the weld's integrity.

While you don't need to prime a welded hydraulic cylinder, you must pay careful attention to welding processes and quality control to maintain the cylinder's performance and safety.
