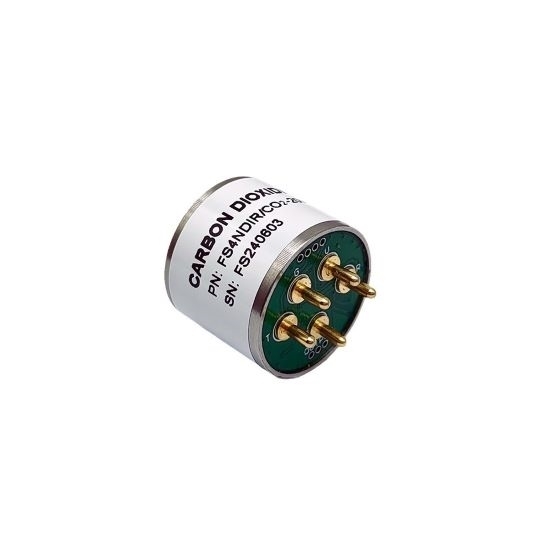

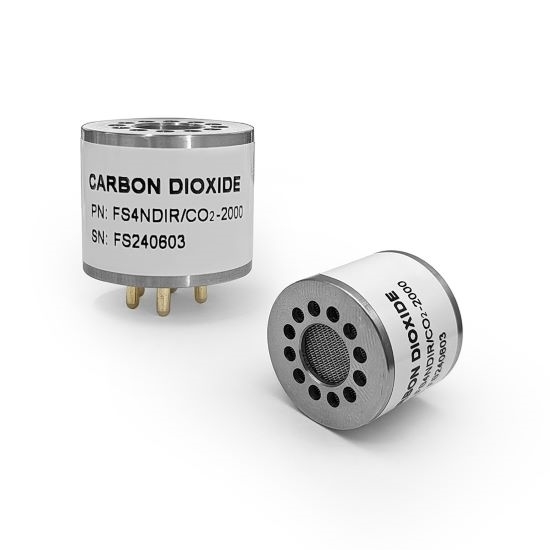

Carbon Dioxide (CO2) Sensor For Home, 0 To 2000 Ppm

0 reviews • Write a review

from

$208.30

Ex Tax: $208.30

Stock: In Stock
Model: RDDLZ-ICDS-711A
Weight: 1.00
SKU: RDDLZ-ICDS-711A

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price carbon dioxide gas sensor with 5V constant power supply, low power consumption, average current less than 85mA. CO2 gas sensor offers high sensitivity and resolution and long lifespan advantages.

Features

High sensitivity and resolution, long lifespan
5V constant power supply, low power consumption
Output method: serial port, DAC (0.4V~2V), etc.
Quick response & Resume
Temperature compensation, excellent linear output
Anti-poisons, anti-vapor interference

Specification

Model: RDDLZ-FS4NDIR/CO2
Detection gas: CO2
Detection principle: Non-dispersive infrared absorption detection (NDIR)
Working voltage: DC 3.6V~5.0V
Working current: ≤85mA (5V power supply)
Measuring range: 0~2000ppm
Resolution: 1ppm
Data accuracy: 50ppm±3%FS
Default output mode: Serial port
Reserved output mode: DAC (0.4V~2V) (default closed)
Response time: T90≤120s
Detection frequency: Update once per second (default)
Service life: 10 years (in air)
Working temperature: -20℃~70℃
Storage temperature: -30℃~60℃
Working humidity: 0~95% RH (no condensation)
Storage humidity: 0~95% RH (no condensation)
Pressure range: 75Kpa~120Kpa

Dimension (mm)

Sensor Working Principle

Tips: How to Maintain Carbon Dioxide (CO2) Sensor?

The instrument should be regularly maintained, do not drop it, and do not let the instrument inhale dust.
When the carbon dioxide analyzer is not in use for a long time, the power supply of the instrument should be turned off, and it should be stored carefully and protected from moisture and dust.
The model, specifications and parameters of the components in the original circuit shall not be changed during maintenance, and the original package shall not be changed. All repairs must be carried out on the well by professionals.
