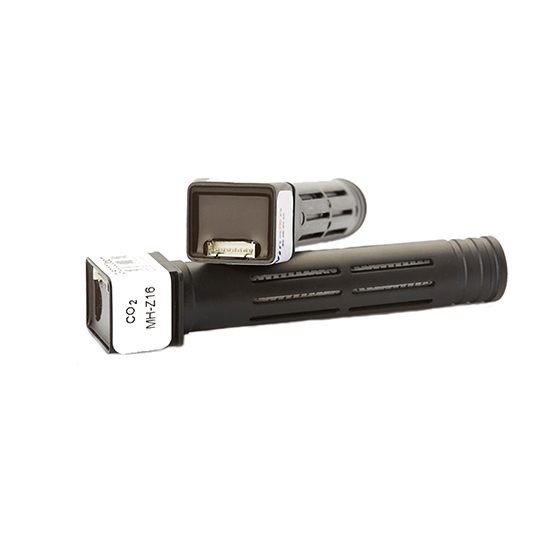

NDIR CO2 Gas Sensor, 0 To 2000/ 5000 Ppm

0 reviews • Write a review

from

$138.73

Ex Tax: $138.73

Stock: In Stock
Model: RDDLZ-ICDS-Z16
Weight: 1.00
SKU: RDDLZ-ICDS-Z16

Available Options

Short Description

Measuring Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price NDIR CO2 gas sensor with 150 mA peak current, short preheat time 10s, the working temperature is -10℃ ~ 50℃. High quality carbon dioxide gas sensor has the advantages of no oxygen dependence, high sensitivity, low power consumption, and long life.

Features

High sensitivity, Low power consumption
Good stability
Temperature compensation, excellent linear output
Output method: UART, PWM
Long lifespan
Anti-water vapor interference, no poisoning

Specification

Model: RDDLZ-ICDS-Z16
Detection gas: CO2
Working voltage: 5VDC
Average current: < 85mA
Peak current: 150mA
Interface level: 3.3V (5V compatible)
Measuring range: 0~50000 ppm range selectable (max. 150000ppm can be extended)
Output signal: UART/ PWM
Preheat time: 10s
Response time: T90 < 30s
Working temperature: -10℃ ~ 50℃
Working humidity: 0~95% RH (no condensation)
Storage temperature: -20℃ ~ 60℃

Measuring range and accuracy

Target gas	Measuring range	Solution	Accuacy	Mark
Carbon Dioxide (CO2)	0~2000 ppm	1 ppm	± (50 ppm＋5% reading value)	Temperature compensation
	0~5000 ppm
	0~10000 ppm
	0~5% VOL		< 1% VOL reading value
	0~10% VOL
	0~15% VOL

Dimension (mm)

Pin Definition

PIN NO.	Description
PIN 4	Vin (Voltage Input)
PIN 3	GND
PIN 2	NC
PIN 7	PWM
PIN 1	HD (Zero Calibration, Keep Low Electrical Level for More Than 7 Seconds)
PIN 5	UART (RXD) TTL electrical Level Data Input
PIN 6	UART (TXD) TTL Electrical Level Data Output

Tips: What is NDIR CO2 Gas Sensor?

The infrared carbon dioxide sensor uses the principle of non-dispersive infrared (NDIR) to detect CO2 in the air. It has the characteristics of good selectivity, no oxygen dependence, and long life. It also has serial output and PWM output, which is convenient to use. The principle of non-dispersive infrared (NDIR) detects CO2 in the air and is widely used in various occasions where flammable and explosive gases exist.
