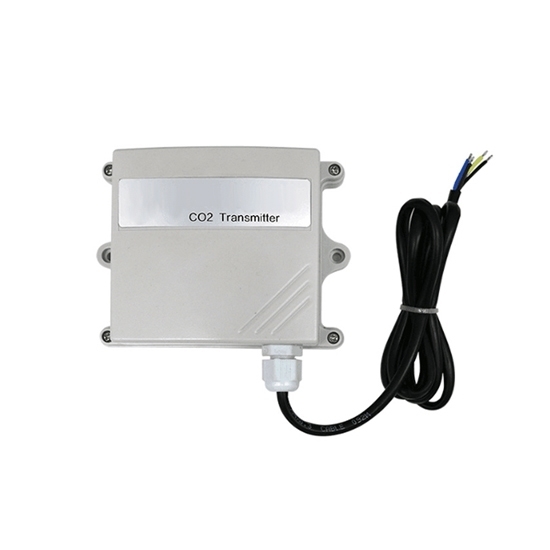

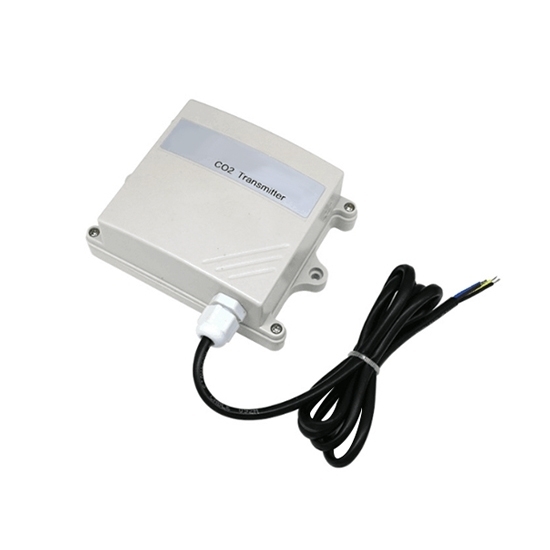

Infrared Carbon Dioxide (CO2) Transmitter, RS485, 0-50000ppm

0 reviews • Write a review

from

$163.82

Ex Tax: $163.82

Stock: In Stock
Model: RDDLZ-GS-CO2T
Weight: 1.00
SKU: RDDLZ-GS-CO2T

Available Options

Short Description

Detection Range

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The infrared CO2 transmitter, with a selectable range of 0-2000ppm to 0-50000ppm, operates on DC 24V±0.5V and features ModBus 485 output. It is ideal for fresh air systems, building environment monitoring, air quality testers, and smart home systems.

Specification

Model	RDDLZ-D622
Operating Voltage	DC 24V±0.5V
Operating Current	<150mA
Measurement Range	0-2000ppm, 0-5000ppm, 0-10000ppm, 0-20000ppm, 0-50000ppm (optional)
Accuracy	±(50+5% FS) ppm
Output Mode	ModBus 485
Baud Rate	9600
Operating Temperature	0~60°C
Operating Humidity	0~95% RH (non-condensing)
Storage Temperature	-20~80°C
Storage Humidity	0~95% RH (non-condensing)
Wiring Method	Brown wire - VCC, Black wire - GND, Yellow wire - 485+/A, Blue wire - 485-/B

Feature

Wide Measurement Range: Supports various measurement ranges up to 50,000 ppm, suitable for diverse applications.
High Sensitivity: Delivers accurate and responsive detection of CO2 concentration in the environment.
Low Power Consumption: Ensures efficient operation with minimal energy usage.
Long Transmission Distance: Facilitates reliable data transmission over extended distances.
Ease of Installation: Designed for quick and convenient setup in monitoring environments.
Multiple Output Options: Offers flexible data output, including RS485 ModBus protocol, to meet different system requirements.
Good Stability: Provides consistent and reliable performance over long periods.
Protocol-based Data Output: Enables seamless integration with other devices for precise monitoring and control.

Size (Unit: mm)

Application

Tips: Can the transmitter be customized for specific applications?

Yes, the transmitter’s measurement range can be customized to suit specific application needs. For example, a lower range (0-2000ppm) may be ideal for residential air quality monitoring, while a higher range (up to 50000ppm) is better suited for industrial environments or research applications. The ModBus protocol further allows flexible integration with custom monitoring systems.
