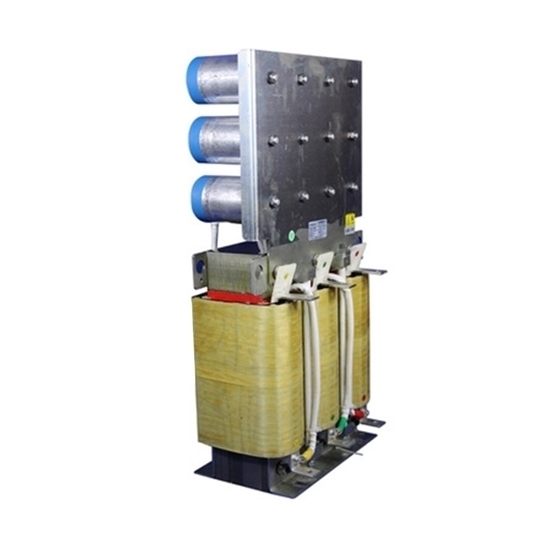

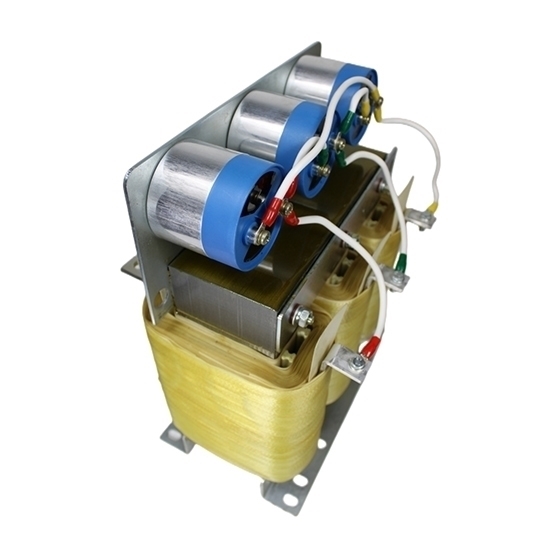

25A Sine Wave Filter, 3 Phase

25A Sine Wave Filter, 3 Phase
25A Sine Wave Filter, 3 Phase
25A Sine Wave Filter, 3 Phase
25A Sine Wave Filter, 3 Phase
25A Sine Wave Filter, 3 Phase
from
$561.54
Ex Tax: $561.54
  • Stock: In Stock
  • Model: RDDLZ-SWF-25
  • Weight: 1.00
  • SKU: RDDLZ-SWF-25

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost sinusoidal filter with rated current 25A, the power of 11kW. The sine filter can converse the PWM output signal (symmetrical voltage components) of motor.

Specification

ModelRDDLZ-SCAR-0025
Rated current25A
Adapted power11kW
Withstand voltage3000 VAC 60/s
Fundamental frequency50Hz
Carrier frequency4kHz
Insulation classF
Altitude<2000m
Working temperature-40-85℃
Voltage drop8%-12%
Weight20kg


Dimension

ModelLWHL1W1AB
RDDLZ-SCAR-0025230mm240mm245mm210mm78mm8mm14mm


Application

Tips: What is sine filter in VFD?

For Variable Frequency Drive (VFD) applications, MTE Sine Wave Filters eliminate the problem of motor/cable insulation failures, heating, and audible noise. Sine Wave Filters also reduce electromagnetic interference (EMI) by eliminating the high dV/dt associated with inverter output waveforms.
