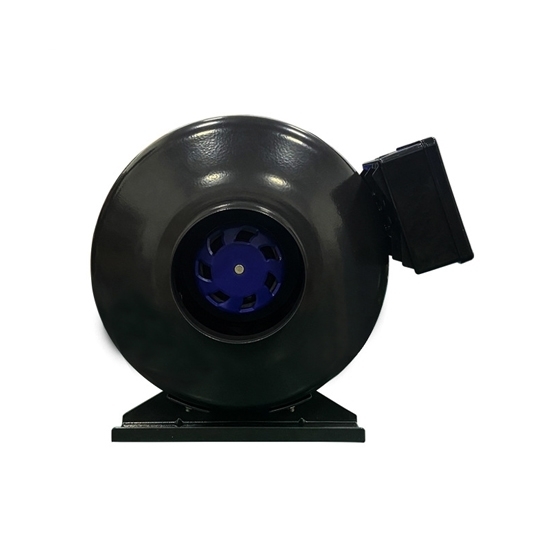

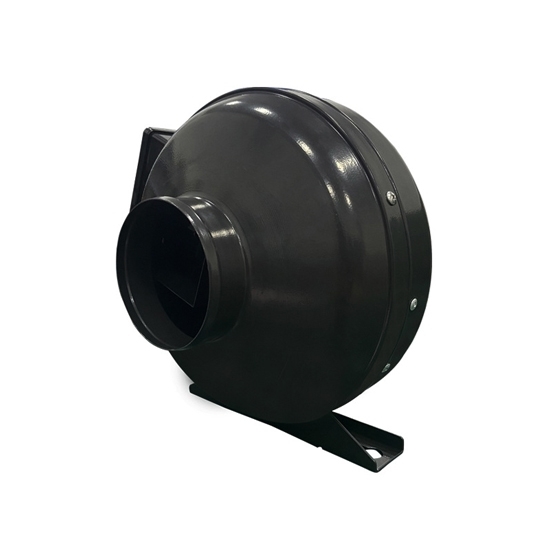

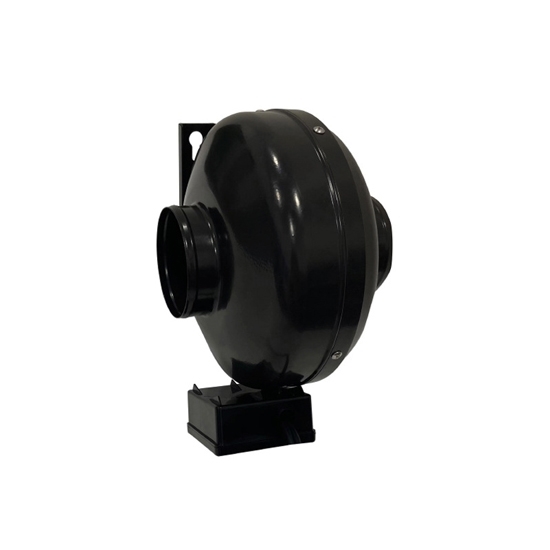

4 Inch (100mm) Inline Centrifugal Duct Fan

0 reviews • Write a review

from

$462.49

Ex Tax: $462.49

Stock: In Stock
Model: RDDLZ-ICFAN-100
Weight: 1.00
SKU: RDDLZ-ICFAN-100

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

In line centrifugal duct fan with 4 inch (100mm) impeller is used for various applications, including improving air circulation, removing stale air, or enhancing HVAC system efficiency.

Specification

Model	RDDLZ-QL-P100B-EC-00
Operating Voltage	230V AC
Frequency	50Hz/60Hz
Max. Power	85W
Motor Power	85W
Max. Current	0.65A
Noise	72dB(A)
Speed	3300rpm
Impeller Diameter	100mm (4 inch)
Air Volume	310m³/h (180 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	Plastic
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Tips: Inline centrifugal duct fan working principle

An inline centrifugal duct fan operates based on centrifugal force to move air through ductwork. The fan consists of an impeller housed within a cylindrical casing. When the impeller rotates, it draws air into the center of the fan, or the "eye" of the impeller, through the inlet. The centrifugal force generated by the spinning impeller then accelerates the air outward toward the perimeter of the fan.

As the air is forced outward, it gains velocity and pressure, exiting the impeller at a 90-degree angle to the inlet flow. This high-pressure airflow is then directed into the duct system, allowing it to travel efficiently over long distances. The design ensures a steady and powerful airflow, which is essential for applications requiring consistent ventilation. Additionally, the enclosed design of the fan helps minimize noise and enhances the overall efficiency of the system by reducing energy losses typically associated with axial fans.
