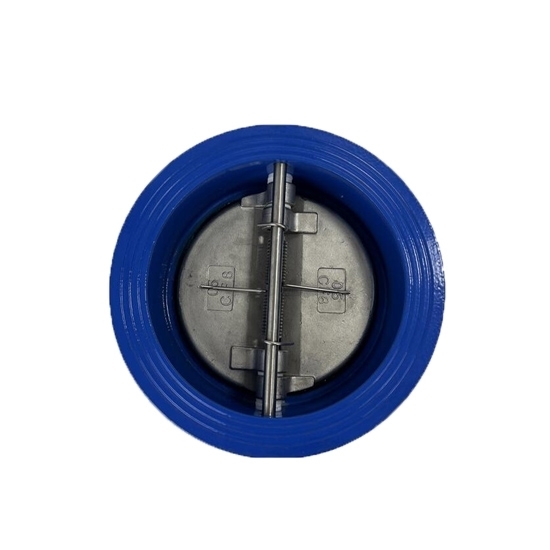

2" Dual Plate Wafer Check Valve

0 reviews • Write a review

from

$65.29

Ex Tax: $65.29

Stock: In Stock
Model: RDDLZ-DPCV-50
Weight: 1.00
SKU: RDDLZ-DPCV-50

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 inch dual plate check valve is a non-return valve with a wafer connection, ductile cast iron materials, DN50 and PN1.6MPa, which can prevent backflow in a wide range of fluid handling applications.

Specifications

Model: RDDLZ-DH77X-16Q
Nominal Diameter: 2 inch (DN50)
Nominal Pressure: PN1 .6MPa
Working Temperature: -15℃~150℃
Material: Ductile Iron
Connection Method: Clip
Suitable Mediums: Fresh Water, Foul Water, Air Steam, Food Medicines, Chemical Reagents, Various Oil and Acid Resemble.

Dimension

DN		D	D1	D2	L	R	t	Weight
mm	inch
50	2	107	65	43.3	43	28.9	19	1.5kg

Applications

The dual plate check valve is a versatile valve used to regulate the flow of fluids through a pipeline. Its compact design and efficient operation make it suitable for a wide range of applications, including water and wastewater treatment, oil and gas pipelines, and industrial processing.

Tips: What is a dual plate check valve?

A dual plate check valve is a type of check valve used to regulate the flow of fluids (liquids or gases) through a pipeline. It is called a "dual plate" valve because it has two plates or discs that are hinged together and swing open or shut to control the flow of fluid.

The two plates are located on opposite sides of the valve body and are designed to pivot away from the center of the valve body to allow fluid to flow through. When fluid flows in the opposite direction, the plates swing closed and create a tight seal to prevent backflow.
The dual plate design allows for a compact valve size and efficient operation, making it a popular choice for a wide range of applications. They are often used in water and wastewater treatment, oil and gas pipelines, and industrial processing.
