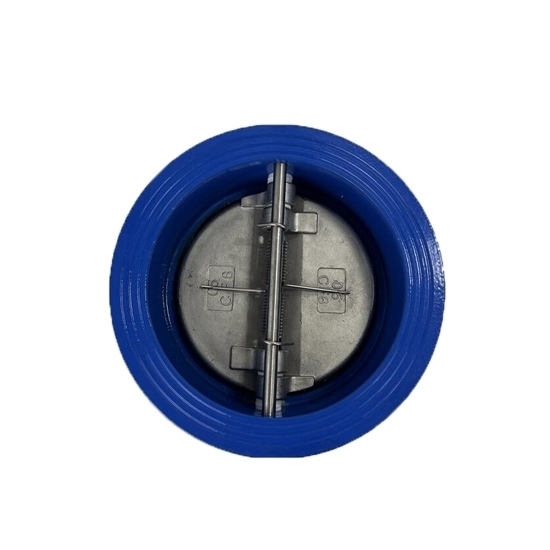

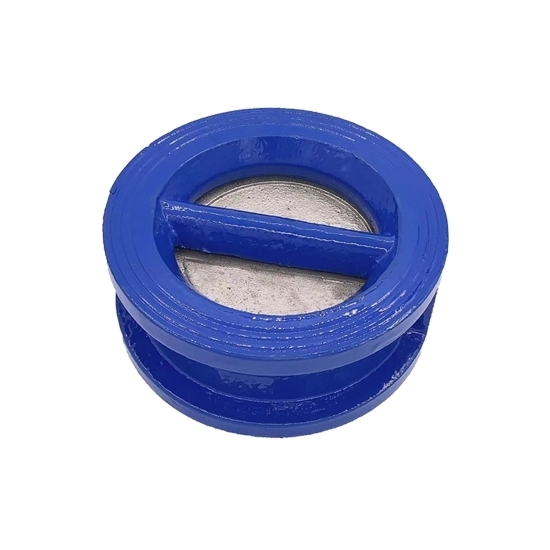

3" Dual Plate Wafer Check Valve

0 reviews • Write a review

from

$97.51

Ex Tax: $97.51

Stock: In Stock
Model: RDDLZ-DPCV-80
Weight: 1.00
SKU: RDDLZ-DPCV-80

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price 3" dual plate check valve, wafer type, ductile iron, PN 1.6MPa, and DN80. It responds quickly and reliably to changes in the flow direction, suitable for applications where reverse flow is frequent.

Specifications

Model: RDDLZ-DH77X-16Q
Nominal Diameter: 3 inch (DN80)
Nominal Pressure: PN1 .6MPa
Working Temperature: -15℃~150℃
Material: Ductile Iron
Connection Method: Clip
Suitable Mediums: Fresh Water, Foul Water, Air Steam, Food Medicines, Chemical Reagents, Various Oil and Acid Resemble.

Dimension

DN		D	D1	D2	L	R	t	Weight
mm	inch
80	3	142	94	66.4	64	43.4	28	3.6kg

Applications

The dual plate check valve is a versatile valve used to regulate the flow of fluids through a pipeline. Its compact design and efficient operation make it suitable for a wide range of applications, including water and wastewater treatment, oil and gas pipelines, and industrial processing.

Tips: What can a dual plate wafer check valve do?

A dual plate wafer check valve is designed to allow the flow of fluid in one direction and prevent backflow in the opposite direction. It does this by using two valve discs that are positioned in parallel and hinged together, which open and close in response to the flow of fluid. When the fluid flows in the forward direction, the discs open and allow the fluid to pass through the valve. When the fluid flow reverses, the discs close and prevent backflow.
