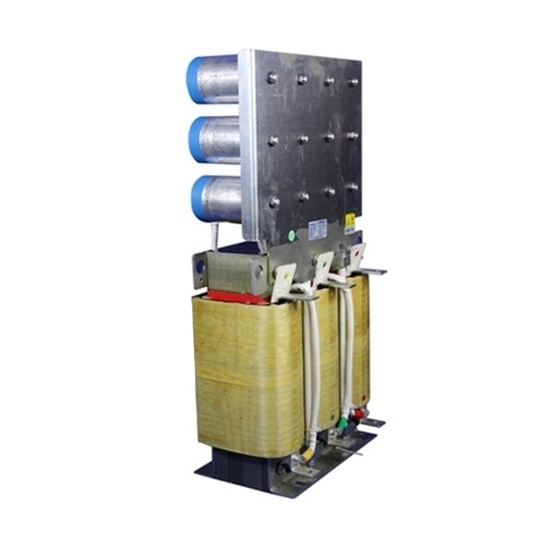

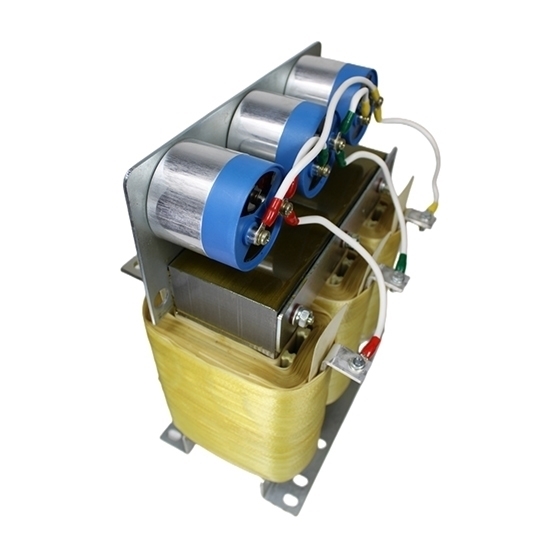

20A Sine Wave Filter, 3 Phase

0 reviews • Write a review

from

$413.23

Ex Tax: $413.23

Stock: In Stock
Model: RDDLZ-SWF-20
Weight: 1.00
SKU: RDDLZ-SWF-20

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Three phase sine wave filter with rated current 20A, adapted power 7.5kW, withstand voltage 3000VAC 60/s, F insulation class. The sine filters filter out the switching frequency from the pulse width modulation (PWM) from the output of an inverter, then provide a sinusoidal motor current.

Specification

Model	RDDLZ-SCAR-0020
Rated current	20A
Adapted power	7.5kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	14.5kg

Dimension

Model	L	W	H	L1	W1	A	B
RDDLZ-SCAR-0020	230mm	220mm	245mm	210mm	78mm	8mm	14mm

Application

Tips: What is the function of a sine wave filter?

The function of the sine wave filter is to convert the PWM wave output by the variable frequency into a sine wave. When the motor voltage is 50Hz, the distortion coefficient of the sine wave filter is about 5%.

Its main functions include two aspects:

Adjust the waveform output by the inverter. The waveform output by the inverter is a PWM wave, which is a waveform between a square wave and a sine wave. After adding a sine wave filter, the PWM wave will be transformed into a waveform that is more like a sine wave.
Realize the long-distance transmission of the frequency converter. In general, if the distance between the inverter and the load exceeds 50 meters, a reactor must be added. If there is a requirement for the output waveform of the inverter, a sine wave filter must be added. This distance refers to the length of the connection.
