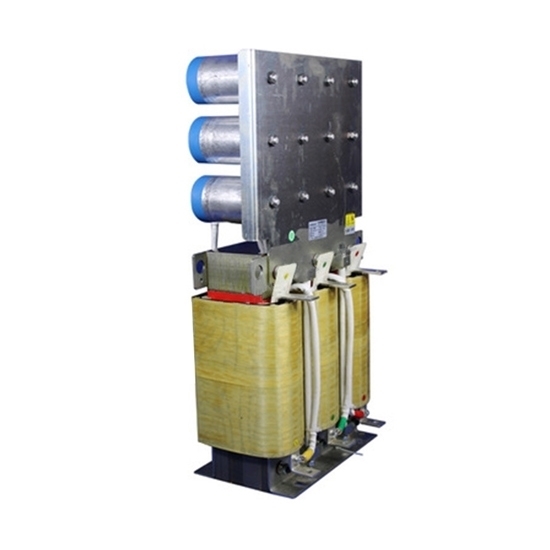

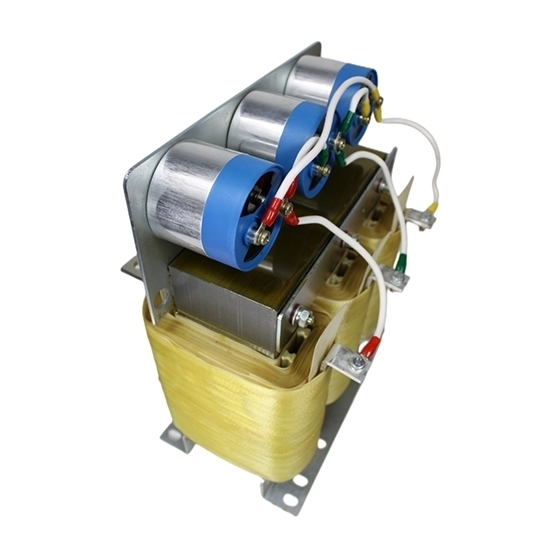

10A Sine Wave Filter, 3 Phase

0 reviews • Write a review

from

$367.08

Ex Tax: $367.08

Stock: In Stock
Model: RDDLZ-SWF-10
Weight: 1.00
SKU: RDDLZ-SWF-10

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10A sine wave filter with the power of 3.7kW at a low price for sale, the sine filter features withstand voltage 3000VAC 60/s. The sine filter can extend the life of the motor, protect motor insulation, increase transmission distance, and improve system reliability.

Specification

Model	RDDLZ-SCAR-0010
Rated current	10A
Adapted power	3.7kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	10kg

Dimension

Model	L	W	H	L1	W1	A	B
RDDLZ-SCAR-0010	180mm	190mm	220mm	165mm	87mm	8mm	14mm

Application

Tips: What is the difference between a dU DT filter and sine filter?

Compared to sine-wave filters the dU/dt filters have a cut-off frequency above the switching frequency. They are smaller, weigh less and have a lower price compared to sine-wave filters. Because of the smaller inductance and capacitance the dU/dt are suitable for high dynamic applications.
