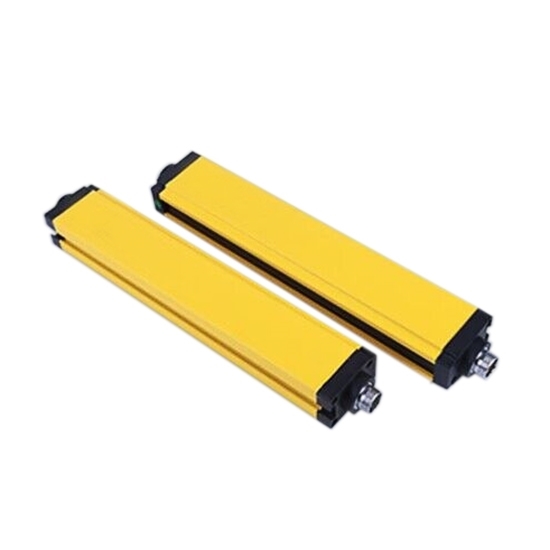

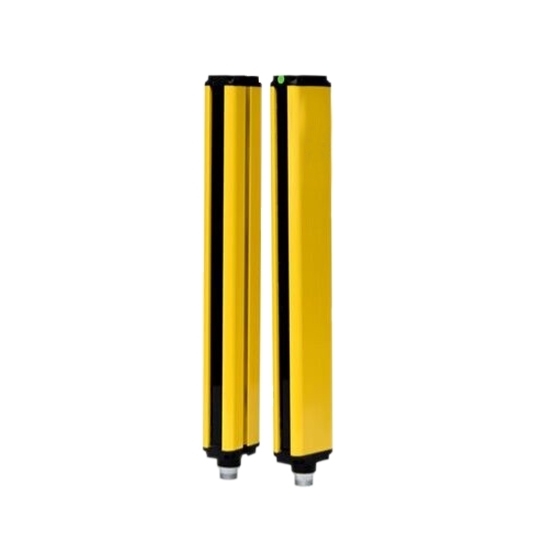

Safety Light Curtain For Industry

0 reviews • Write a review

from

$280.92

Ex Tax: $280.92

Stock: In Stock
Model: RDDLZ-SLC-AY50NC
Weight: 1.00
SKU: RDDLZ-SLC-AY50NC

Available Options

Short Description

Output

Number of Beams

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Safety light curtain sensor with IP65 protection, humidity 20℃, RH≤85%. Equipped with an aluminum shell, and transistor output, and is rugged and shock-resistant.

Specification

Model	RDDLZ-AY50NC
Working Power	DC 24V
Output Type	Transistor output
Maximum Output Current	100mA
Power Consumption	<3W
Operating Temperature	-10°C~55°C
Environment Humidity	20°C, RH<95% (no condensation)
Response Time	3ms-18ms
Insulation Resistance	>100Mn
Dielectric Strength	AC1500V, 60s
Anti-light Interference	10000Lux incident angle>5°
Emitting Light Source	Infrared 940nm
Shell Material	Aluminum alloy
Protection Level	IP65
Optical Axis Distance	20mm
Protection Length	0.2 - 20m (conventional shooting distance, others can be customized)
Protected Altitude	H= ( XX -1) x distance between optical axes, xx is the number of beams
Shooting distance	3m (default)~20m, can be customized

Feature

The safety curtain sensor chip is responsive and has a long service life, and the transmitter and receiver use dual CPUs to work with reinforced aluminum.
Equipped with an alloy shell, the light curtain sensor structure is firm, impact-resistant, shock-proof, and stable in performance.
Safety light curtains have complete specifications and models, easy installation, and simple wiring.
Perfect self-inspection function, strong anti-electromagnetic and optical interference ability.
Light curtain sensors have strong vibration resistance and excellent waterproof and dustproof performance.
NC series output NPN/PNP signal, RC series is equipped with plug-in controller adopts double relay output LED indicates working and fault status.
Configurable S-shaped external controller provides double-sided protection.

Size

Wiring diagram

Tips: What are the light curtain sensors advantages?

Non-contact detection will not cause damage or pollution to the material.
The detection range is wide and can cover a large area.
The response speed is fast, and it can detect objects entering the forbidden area within milliseconds.
The protective effect is good, which can effectively protect the safety of personnel and equipment.
