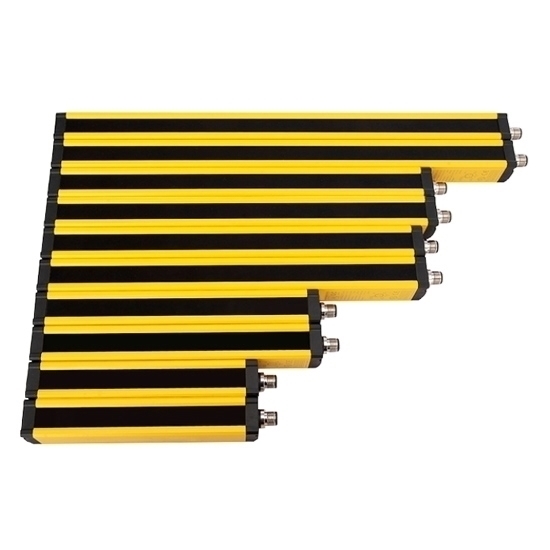

Safety Light Curtain

0 reviews • Write a review

from

$319.23

Ex Tax: $319.23

Stock: In Stock
Model: RDDLZ-SLC-QC
Weight: 1.00
SKU: RDDLZ-SLC-QC

Available Options

Short Description

Output

Number of Beams

Distance of Optical Axis

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

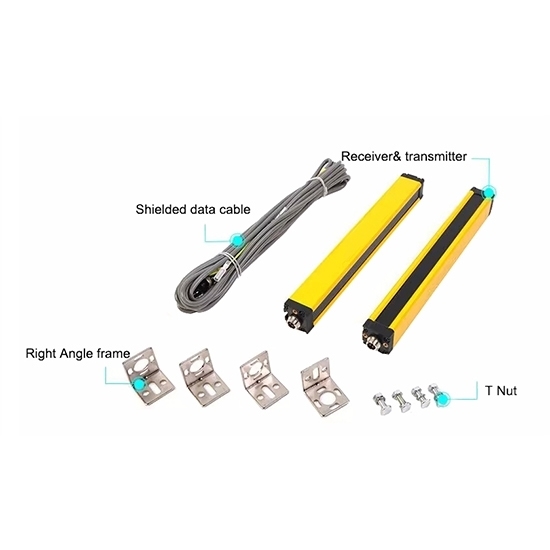

The safety light curtain is composed of a light emitter and a light receiver, which can effectively detect any opaque objects exceeding the detection accuracy entering the light curtain area. The safety light curtain adopts a separate design of the light curtain and the controller. It can be used in conjunction with the controller, or directly connected to PLC and safety relays, and cooperate with the machine tool control system to realize the automatic shutdown function in dangerous situations. RDDLZ can provide AC 110-220V controller according to customer needs. When the safety protection device fails, ensure that the safety light curtain will not send wrong signals to the controlled equipment.

Application: The safety light curtain is an advanced laser sensor used to protect workers around dangerous machinery and equipment. It can be applied to paper cutters, conveyors, assembly lines, woodworking machinery, leather machinery, forging presses, punching and shearing machines, presses, milling machines, drilling machines, welding machines, CNC, elevators, automation equipment, handling equipment and soon.

Specification:

Model	RDDLZ-SLCQC
Light curtain mode	Opposite
Optical axis distance (K)*	10mm	14mm	20mm	25mm	30mm	40mm
Detection accuracy	18mm	22mm	28mm	33mm	38mm	48mm
Number of beams*	6, 8, 10~72	6, 8, 10~32	4, 6, 8~72	6, 8, 10~32	4, 6, 8~32	4, 6, 8~72
Protection height (H)	K*(beam number-1)
Detection length	30~3000mm or 30~6000mm
Size	3030J mm (J is the length of the optical transmitter/optical receiver)
Response time	≤15ms
Anti-light interference	10000Lux (angle of incidence≥5°)
Protection class	IP65
Power supply	DC 12/24V (default), AC 110-220V (please contact us)
Consumption current	≤200mA
Output	NPN/PNP, input current 500mA, voltage drop≤1.5V, reverse polarity, short-circuit, overload protection.
Output status	All the optical axis are receiving (show green).
Indicator light	Light emitter: Power supply indicator is red. Light receiver: Output indicator is green (through), output indicator is red (block).
Light source	Special infrared LED
Connection mode	Circular air outlet with a special connection cable, 4 core wire for light emitter, 5 core wire for light receiver.
Housing material	Shell: Aluminum alloy, end cover: ABS.
Resistant to ambient light	Natural light: receiving surface 3000Lx. Sunlight: receiving surface 10000Lx.
Ambient temperature	Operating: -10℃~40℃ (do not freeze). Storage: -25℃~55℃.
environment humidity	Operating: 35-85%RH, storage: 35~95%RH.
Certificate	TUV, CE, RoHs, ISO9001:2015

Dimensional drawing (unit: mm):

Wiring diagram:

Safety light curtain output signal selection:

Tips: How to select safety light curtains?

Protection height: It is the protection height of the dangerous area. It is based on what kind of mechanical equipment the customer will use. For example, the punching machine has a large tonnage and the protection height needs to be larger.
Distance of optical axis: Refers to the distance between the transmitting tubes of safety light curtain, the shorter the distance, the smaller the test object, the higher the safety factor. Generally 10mm distance is enough to protect fingers, 20mm distance is enough to protect palm, 40mm distance is enough to protect arm.
The number of beams: Safety light curtain beam has the same protection height. When in same protection height, the greater the number, the smaller distance of optical axis, the smaller objects, the higher security. In general, the number of beams is a decisive factor for pricing the safety light curtain.
Dimensions: The commonly dimension is 30*30mm, using for punching machine and other equipments.
Output mode: There are five general output modes, such as NPN output, PNP output, relay output, digital output and analog output. It is to be set based on customer requirements.
Installation: Steel pipe support installation and side-mounted mode.
