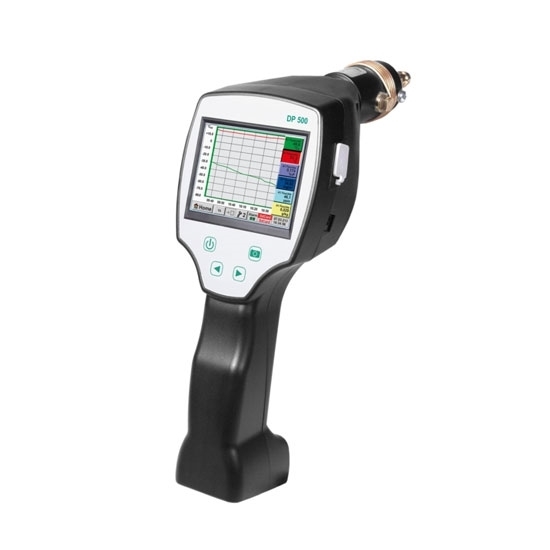

Portable Dew Point Meter With Intergral Prob

0 reviews • Write a review

from

$5,966.19

Ex Tax: $5,966.19

Stock: In Stock
Model: RDDLZ-DPM-500
Weight: 1.00
SKU: RDDLZ-DPM-500

Available Options

Short Description

SD Memory Card Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Dew point temperature (dew point for short) is one of the indicators to measure the water vapor content in a certain gas. Water has the property that it can exist in liquid, solid, or gas under various conditions. To understand the nature of water vapor, we must first know the general nature of the gas. The total pressure (commonly known as the total pressure) produced by any mixed gas is equal to the sum of the partial pressures (partial pressures) of the component gases. This is Dalton's law, which is expressed by formula: Ptotal = P1 + P2 + P3…

The amount of any component gas in the mixed gas can be expressed by pressure. The main components of air are nitrogen, oxygen, and water vapor, so the total atmospheric pressure is composed of the partial pressures of these three gases. The concentration of nitrogen and oxygen is relatively stable, while the concentration of water vapor varies greatly and must be determined by measurement.

The maximum partial pressure of water vapor varies completely with temperature. For example, at 20 ° C (68 ° F), the maximum partial pressure of water vapor is 23.5 mbar. Also called "saturated vapor pressure" at 20 ° C (68 ° F). In a "saturated" environment at 20 ° C (68 ° F), if water vapor continues to increase, liquid water will form. This condensation phenomenon can be used to measure the water vapor content in the gas.

Builder in Product TAB

NEW! Since Journal 3.2, the much improved T.A.B (Tabs Accordion Blocks) system supports the page builder inside the tab content. Unlimited Blocks, Tabs or Accordions with any HTML content or the builder interface (supporting custom rows/columns/modules) can be assigned to any individual product or to certain groups of products, like entire categories, brands, products with specific options, attributes, price range, etc. You can indicate any criteria via the advanced product assignment mechanism and only those products matching your criteria will display the modules. Also, any module can be selectively activated per device (desktop/tablet/phone), customer login status and other criteria. Imagine the possibilities.

Model	RDDLZ-DPM-500
Colour Screen	3.5" Touchpanel TFT transmissive, graphics, curves, statistics
Interfaces	USB
Measuring Ranges	-80~+50 °Ctd, -20~+70°C, 0~100%RH
Accuracy	±0.5 °Ctd (-10~+50°Ctd), typical: ±2°Ctd
Power Supply Unit	100~240 VAC, 50~60 Hz, 12VDC~1A
Current Supply	Internal rechargeable Li-Ion batteries charging time approx 4 h DPM500 operation: approx 12h
Pressure Range	Mounting without measuring chamber: -1~50 bar Standard
	Mounting with measuring chamber: 2~16 bar
	High pressure version up to 350 bar
Response Time T95	- 50°Ctd~-10°Ctd<10sec
Response Time T95	10°Ctd~-50°Ctd<5 minutes
Humidity Measures	g/m³, mg/m³, ppm V/V, g/kg,°Ctdatm, % Rf
Operating Temperature	-20~70°C Measuring gas temperature
Operating Temperature	0~50°C Ambient temperature
Storage Temperature	-20 to +70°C
Material	Plastic PC/ABS
Dimensions	12596245mm
Weight	550g
Certificate	ISO 9001:2015

Number	Name	Quantity
1	Portable dew point meter DPM 500 for compressed air and gases	1
2	Mobile measuring chamber up to 16 bar	1
3	Diffusion-tight PTFE hose with quick connector, length 1 m	1
4	Power supply for DPM 500 dew point meter	1
5	Control and calibration set 11.3 % RH	1
6	Quick-lock coupling	1
7	Dry container for dew point sensors	1
8	Transportation case (small) for DPM 500	1
