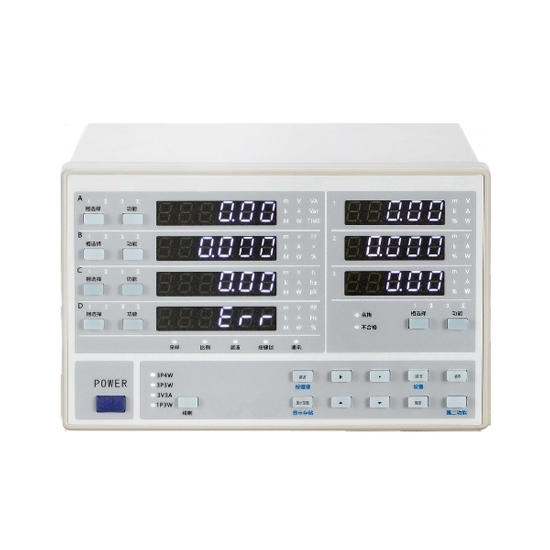

Three Phase Digital Power Meter With LCD Display

0 reviews • Write a review

from

$1,323.49

Ex Tax: $1,323.49

Stock: In Stock
Model: RDDLZ-DPM-3PH
Weight: 1.00
SKU: RDDLZ-DPM-3PH

Available Options

Short Description

Type

Communication Interface

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Three phase digital power meter with LCD display is used to measure and analyze electrical parameters in 3 phase systems, which are common in industrial and commercial settings. This device provides accurate readings of key metrics such as voltage, current, power factor, active power (kW), reactive power (kVAR), and apparent power (kVA).

Specification

Model	RDDLZ-PM9833	RDDLZ-PM9833A	RDDLZ-PM9833B
Product Type	3 Phase Basic Type	3 Phase Harmonic Type	3 Phase High Current Type
Wiring Method	3 Phase
Display	LED Digital Display
Basic Accuracy	Level 0.5	Level 0.2
Measuring Voltage	9V-600V		9V-1000V
Measuring Current	20mA-40A		20mA-60A
Input Method	Both Voltage and Current are Floating Inputs
Power Factor	0.001-1.000
Frequency	45Hz-65Hz
Measuring Mode	AC
Input Impedance	Voltage: About 2mΩ, Current: About 0.5Ω, high-end: About 4mΩ
Energy Accumulation	/	0~999999MWh/O~-99999MWh
Energy Timing	/	99999h, Accuracy Error +2 seconds/hour, Resolution 1 second
Harmonics	/	1-50 times, Accuracy Level: Class B IEC61000-4-7
Display Mode	7 Windows, White Light LED Display
Sampling Speed	0.5s	0.05s/0.1s/0.25s/0.5s/1s
AD Conversion	800 times/second, Sampling Period 125μs, 24 bits, Voltage/Current Simultaneous sampling
Line Filter	Cut-Off Frequency 2KHz
AC Value of Voltage	√
AC Value of Current	√
Active Power	√
Apparent Power	√
Reactive Power	√
Phase Difference	√
Power Input	AC 100-240V, 45-440Hz, DC 100V-300V
Communication Interface	Optional RS232/RS485	Standard RS232/RS485
Volume	215132275mm

Tips: Three phase digital power meter applications

3 phase digital power meters are essential tools for monitoring and managing electrical systems in various applications. These meters accurately measure parameters such as voltage, current, power factor, and energy consumption across three-phase systems. In industrial settings, they help in optimizing energy usage, identifying inefficiencies, and preventing overloads. For commercial buildings, these meters provide detailed insights into energy consumption patterns, enabling better energy management and cost reduction. In data centers, they ensure balanced loads and efficient power distribution, crucial for maintaining operational reliability. Additionally, in renewable energy systems, these meters monitor the performance of three-phase inverters and ensure proper energy distribution. Overall, three-phase digital power meters enhance efficiency, reduce operational costs, and support effective maintenance and troubleshooting of electrical systems.
