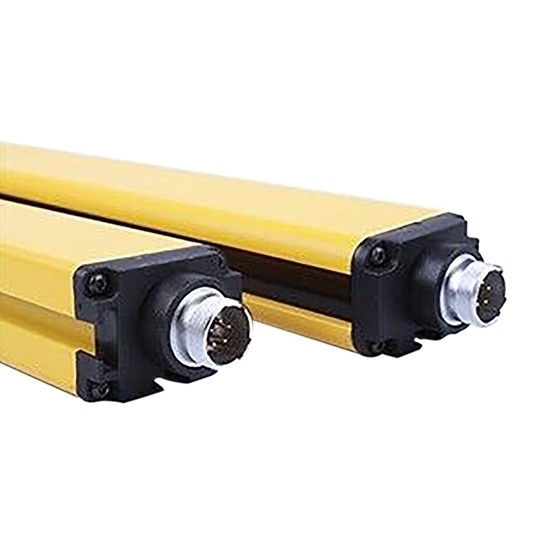

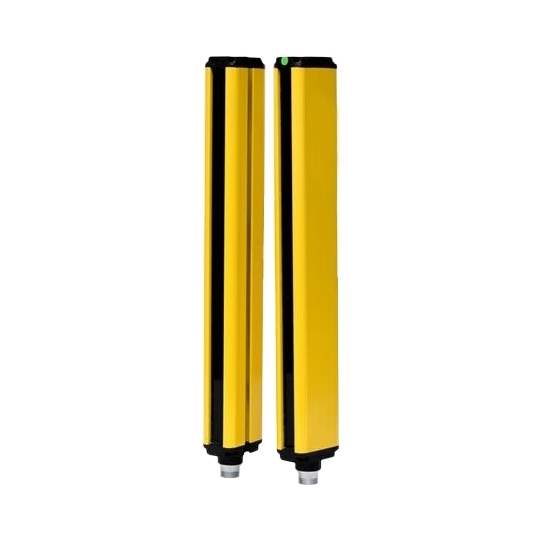

Photoelectric Light Curtain For Punch Machine

0 reviews • Write a review

from

$627.46

Ex Tax: $627.46

Stock: In Stock
Model: RDDLZ-SLC-AY50RC
Weight: 1.00
SKU: RDDLZ-SLC-AY50RC

Available Options

Output

Number of Beams

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

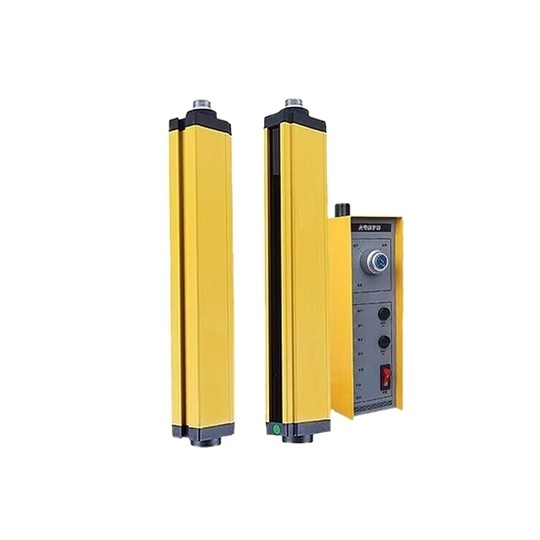

Safety light curtains for punch machine equipped with photoelectric protector and pair of rocker arms, power supply AC 110-220V, and dual relay output. Strong ability to resist electromagnetic and light interference. Usually used in punch/bending machines/large equipment.

Specification

Model	RDDLZ-AY50RC
Protection length	0.2-20m (conventional shooting distance, others can be customized)
Distance of optical axis	10mm, 20mm(default), 40mm
Output method	Dual relay output
Optical axis distance	Optical axis pitch X (beam number-1) / Light axis pitch X (beams-1)
Detection accuracy	15mm, 25mm, 45mm
Power supply	AC 110-220V
Working current	<200mA
Loading current	<200mA
Response time	<10ms
Diagnostic coverage	>99%
Mean time between dangerous failures	120a
Degree of protection	IP65
Operating temperature	-10°C~55°C
Environment humidity	20°C, RH≤85%
Anti-light interference	10000Lux (Angle of incidence≥5°)
Anti-vibration	Frequency: 10~55Hz, Amplitude: 0.35mm
Impact resistance	15g, 16ms, X, Y, Z axis, 1000 times/1000times at X, Y, Z axis

Model	AY50-20140RC	AY50-20300RC	AY50-20380RC	AY50-20460RC
Number of Beams	8mm	16mm	20mm	24mm
Applicable Punch	25T-45T punch	100T-125T punch	140T-200T punch	300T punch

Feature

With complete specifications and models, the safety light curtain is easy to install and has simple wiring
Light curtain sensor has perfect self-inspection function and strong anti-electromagnetic and optical interference ability.
Strong vibration resistance, excellent waterproof and dustproof performance.
The curtain sensor’ NC series output NPN/PNP signal, RC series is equipped with a plug-in controller, which adopts double relay output, and LED indicates working and fault status.
Configurable S-shaped external controller provides double-sided protection.
Laser safety curtain’ aluminum alloy shell, protects the internal circuit of the grating when it is impacted.
Anti-vibration rubber ring, and shock-absorbing pad double protection, effectively reduce the vibration caused by impact.

Note:

The safety grating is a transistor output, which cannot directly control the on-off
Control on and off requires a controller or relay (optional)
NPN normally closed NC output low-level OV under normal light-on state, no output when blocking light
NPN usually opens NO no output under normal light-on state, block light output low-level 0V
PNP normally closes NC
Output high-level 24V in the normal light-through state, no output when light is blocked
PNP usually opens NO output under normal light-on state, block light output high-level 24V.

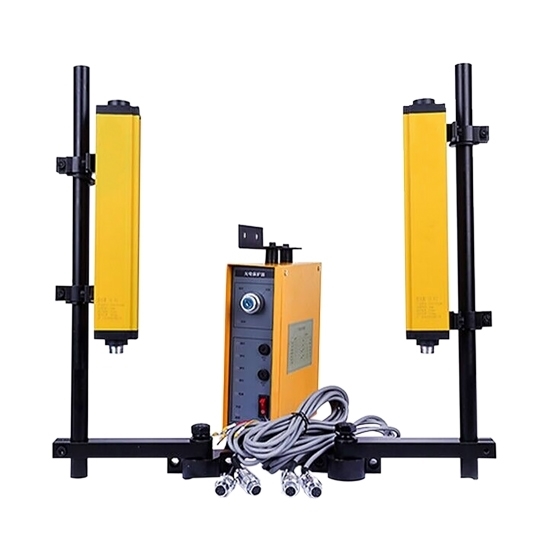

Safety light curtain kit

Size

Wiring diagram

Tips: Why does the punch press require a safety light curtain to protect safety?

Because mechanical equipment must be installed with safety gratings according to certain safety requirements, the main purpose is safety protection.
Automatic equipment or mechanical automation operation requires manual assistance, so during mechanical operation or operation, people need to avoid sources of danger and stay in a safe area (an area where people will not be injured). When a person enters a dangerous area, the machine should stop or take some other response measures. When the person evacuates from the dangerous area, the machine receives the signal and makes a follow-up response.
