Digital LCR Meter, 20Hz~200kHz

0 reviews • Write a review

from

$1,489.23

Ex Tax: $1,489.23

Stock: In Stock
Model: RDDLZ-LCRM-2020
Weight: 1.00
SKU: RDDLZ-LCRM-2020

Available Options

Test Frequency

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

4.3-inch TFT LCD display, compatible with standard SCPI instructions. Ls-Rd/Lp-Rd function (L and Rd display at the same time). Supports U disk file storage, can be upgraded through U disk.
Voltage and current monitoring and automatic level adjustment.
Specification test function for single transformer (part type only).
10mVrms-2.0Vrms programmable test level, built-in 0- + 5V/50mA bias source.

Specification

Model		RDDLZ-LCRM-2830	RDDLZ-LCRM-2831	RDDLZ-LCRM-2832
Display		4.3 TFT LCD display 480*272
Basic Measurement Readiness	LCRZ	0.05%	0.05%	0.05%
	DCR	0.10%
Test Signal Frequency		50Hz-100kHz, 0.01Hz step	50Hz-200kHz, 37 points	20Hz-200kHz, 0.01Hz step
Signal Source Output Impedance		30Ω, 100Ω
AC Test Signal Level		10mV-2Vrms
RDC Test Signal Level		1V DC	1V DC	5mV-2V DC
DC Bias Voltage Source		-	-	0mA--±5V/0mA -- ±50mA
Test Specifications	Basic	L, C, R, \|Z\|, D, Q, \|Y\|, G, X, θd, θr, RDC, Vm, Im, △%
	Transformer	DCR1 (primary, 2-terminal), DCR2 (secondary, 2-terminal), M (mutual inductance) N, 1/N, phase (phase), Lk (leakage inductance), C (primary and secondary capacitance)
Measurement speed (ms/ times)		High: 12.5ms, medium speed: 83ms, slow: 167ms
Equivalent Circuit		Series, parallel
Range Mode		auto, keep
Trigger Mode		Internal, manual, external, bus
Average Number of Times		1-255
Clear Function		Open circuit, short circuit, load
Mathematical Operation		Direct reading, △ABS, △%
Trigger Delay Setting		0--60.000s, 1ms step
Step Selay Setting		0--60.000s, 1ms step
Power Requirements		110V~240V
List Scan		201 point Scanning specifications: Test frequency, AC voltage, AC current, DC BIAS voltage, DC BIAS current
Graphic Scanning Analysis		no
Unique Function		L-RDC At the same time test, soft power switch, one button screen function, data recording function.
Comparator Function		10 gear sorting, BIN1∽BIN9, NG, AUX
		gear counting function
		PASS, FALL Front panel LED display
Internal Nonvolatile Memory		100 sets of LCRZ instrument set file, 201 test results
External USB Memory		Instrument settings files, CSV data files, screenshots (GIF images)
Certification		CE
Interface		RS-232
Size		Upper frame size: 215mm (W)88mm (H)336mm (D) Shape size：236mm (W)105mm (H)363mm (D)
Packing List		LCR meter, CD (user manual included), test report, warranty card, test clip, fuse, power charger

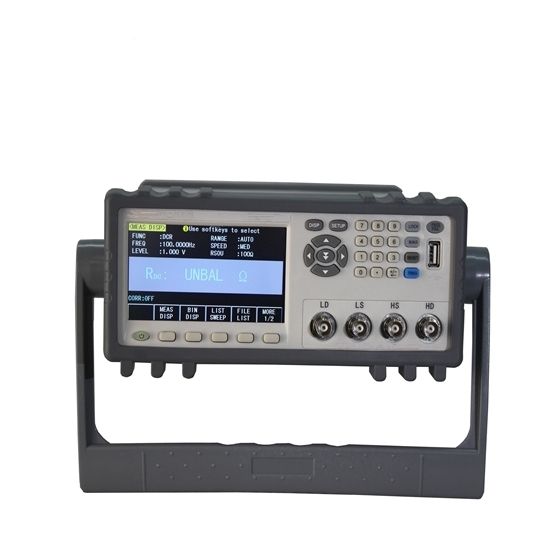

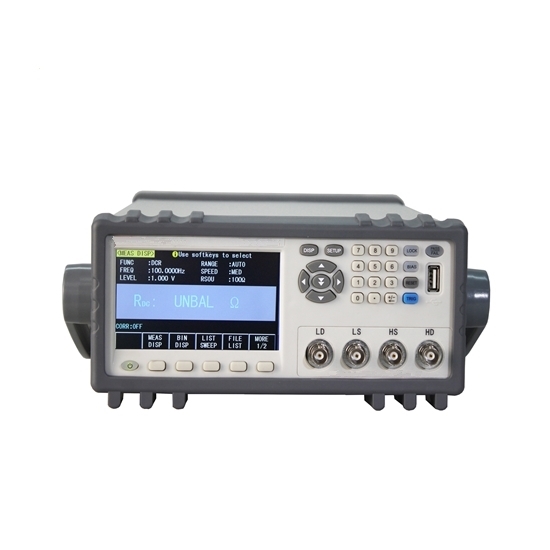

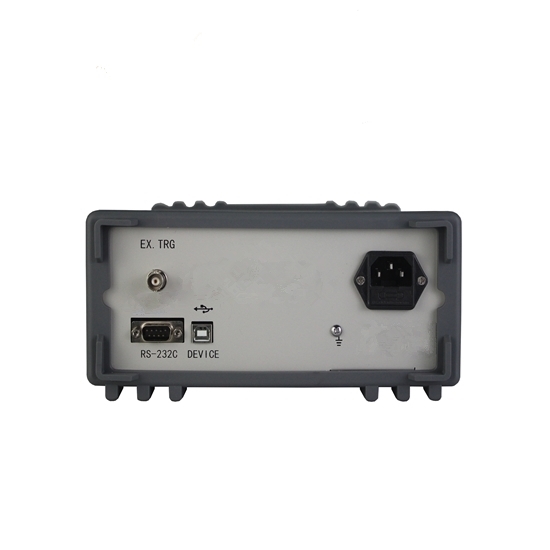

Panel Details

Dimension Drawing

Tips: Digital LCR meter main functions.

LCR meter is a tester used to test the capacitance, inductance, and resistance of components. Unlike ordinary resistance, for inductance and capacitance, it is needs to use AC method to measure. Digital LCR meter uses AC power for measurement. For AC, the ratio of voltage V to current I is the impedance Z. Resistance R in DC mode need only be expressed by the magnitude. Impedance Z contains two elements of magnitude and phase, which are mathematically represented by complex numbers and vectors.

Digital LCR meter has standard interface, which can automatically classify the component under test according to accuracy of the measured value, or directly connect to the automatic test system. It is used for automatic inspection of products on component production lines to achieve quality control in production process.
