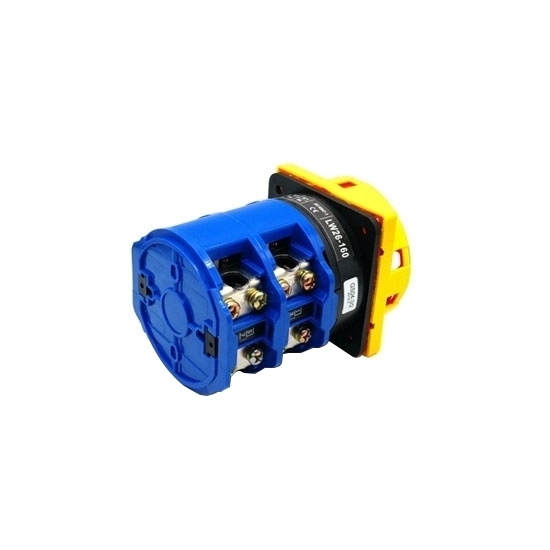

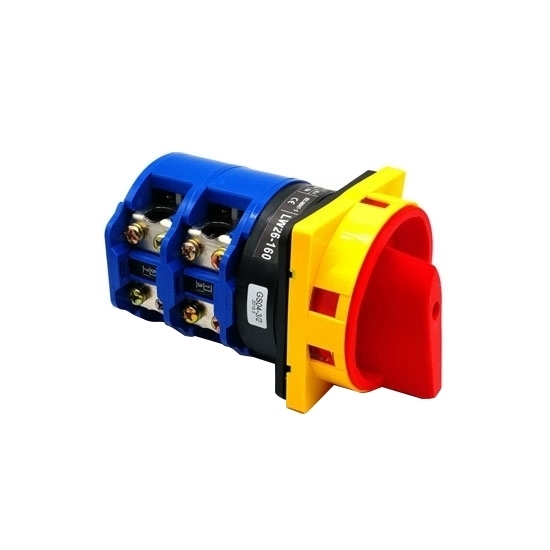

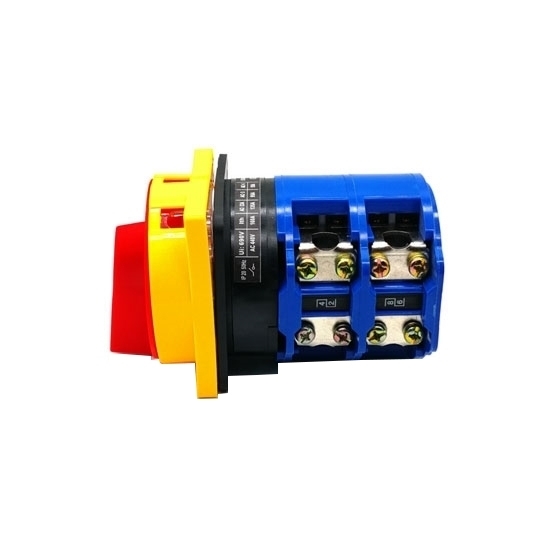

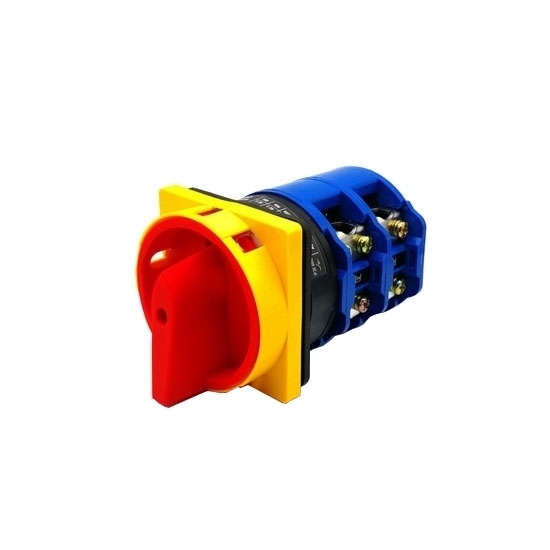

2 Position 20A Rotary Switch, 4 Pole

2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
2 Position 20A Rotary Switch, 4 Pole
from
$59.13
Ex Tax: $59.13
  • Stock: In Stock
  • Model: RDDLZ-LW26GS20
  • Weight: 1.00
  • SKU: RDDLZ-LW26GS20

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 position 4 pole rotary switche has the characteristics of compact structure, good insulation, flexible switching operation, safe and reliable. Small size, light weight and long service life.

Specification:

ModelRDDLZ-LW26GS20
Rated Voltage440V
Rated Thermal Current20A
Rated Working CurrentAC-2120A
AC-2220A
AC-2315A
Pole4 Pole
Position2 Position
Rated Power7.5 kW
Escutcheon PlateM2
DimensionA64
C43
L43
H42
E48
F48
D1φ10
D2φ4.5
Ambient Temperature-25℃-40℃
Altitude≤2000m
Humidity≤50%

Dimensions (Unit=mm)
20A 4 Pole M2 Panel


Tips: What is a rotary switch?

The rotary switch is actually a multi-function, multi-loop combination switch for controlling the circuit to issue control commands or for remote control. It can also be used as a voltmeter, a commutation switch for an ammeter or as a start and adjust for a small-capacity motor. Speed and commutation control.
