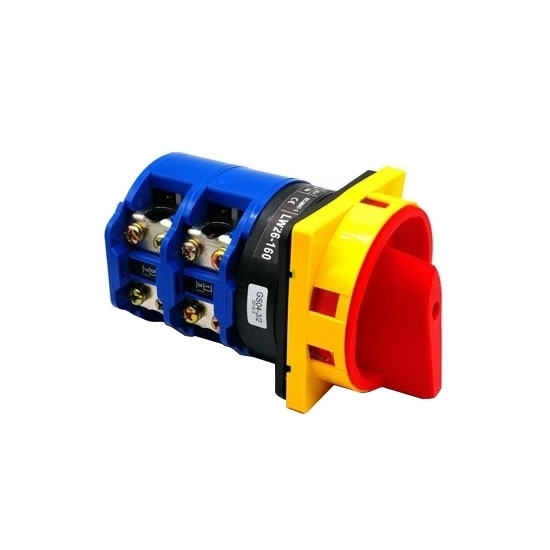

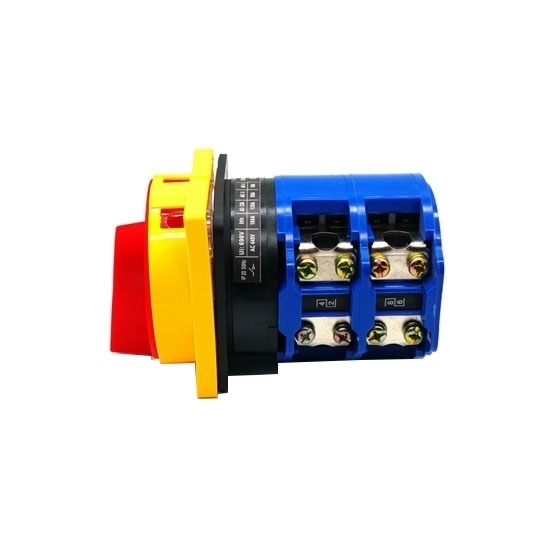

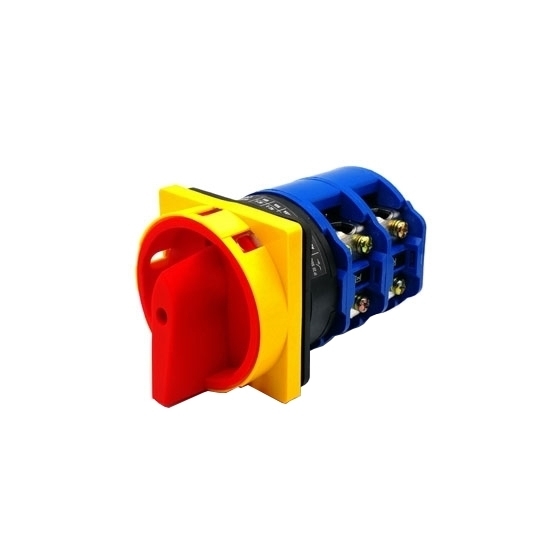

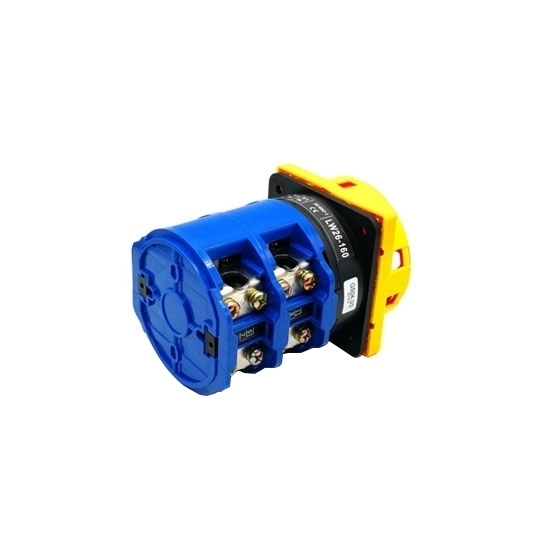

2 Position 25A Rotary Switch, 4 Pole

0 reviews • Write a review

from

$61.53

Ex Tax: $61.53

Stock: In Stock
Model: RDDLZ-LW26GS25
Weight: 1.00
SKU: RDDLZ-LW26GS25

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 position 4 pole Rotary switches rated voltage 440V, it can be used to directly control the start, speed and commutation of small capacity motors, manufacturer direct sales.

Specification:

Model		RDDLZ-LW26GS25
Rated Voltage		440V
Rated Thermal Current		25A
Rated Working Current	AC-21	25A
	AC-22	25A
	AC-23	22A
Pole		4 Pole
Position		2 Position
Rated Power		11 kW
Escutcheon Plate		M2
Dimension	A	64
	C	45.2
	L	51
	H	42
	E	48
	F	48
	D1	φ10
	D2	φ4.5
Ambient Temperature		-25℃-40℃
Altitude		≤2000m
Humidity		≤50%

Dimensions (Unit=mm)
25A 4 Pole M2 Panel

Tips: Rotary switch maintenance

1. When the rotary switch is powered off, it will stop the auxiliary isolation first, then stop the main isolation.
2. Check the gas concentration before opening the cover. After opening the cover, check whether the cable of the wiring chamber is tight and whether there is any debris in the switch cavity; handle the explosion-proof surface of the switch.
3. The upper cover: restore the shift, switch power supply.
4. Perform a protection test on the rotary switch. Use appropriate tools and proper methods of operation during the inspection.
