2 Position 20A Rotary Switch 3 Pole/4 Pole

0 reviews • Write a review

from

$58.46

Ex Tax: $58.46

Stock: In Stock
Model: RDDLZ-WS3020
Weight: 1.00
SKU: RDDLZ-WS3020

Available Options

Type Selection

Pole

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

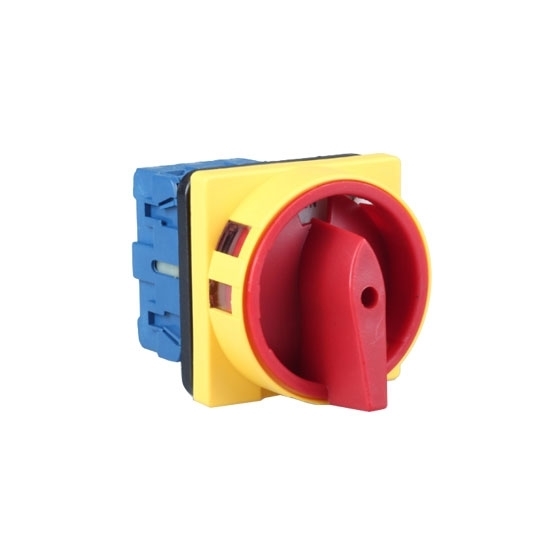

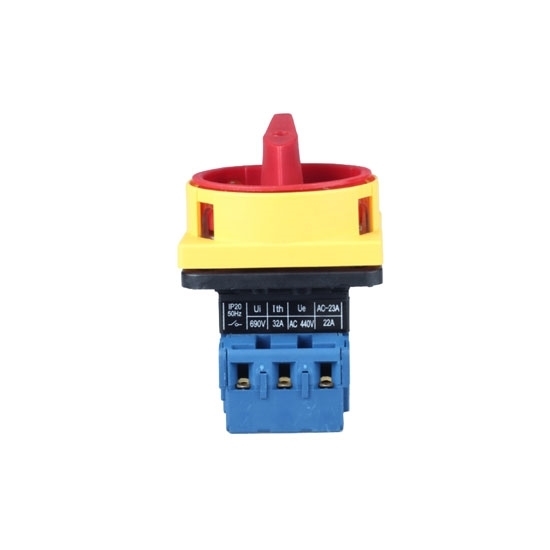

3 pole rotary cam switch 2 position, frequency 50Hz, rated current 20A, fast disconnection, small size, reliable performance, compact structure and easy operation.

Specification:

Model		RDDLZ-WS3020
Rated Thermal Current		20A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	20A	20A
	AC-22A	20A	20A
	AC-23A	15A, 4 kW	15A, 7.5 kW
	AC-3	11.7A, 3 kW	11.7A, 5.5 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	42	54	13.5	61	48	48	φ10	φ4.2

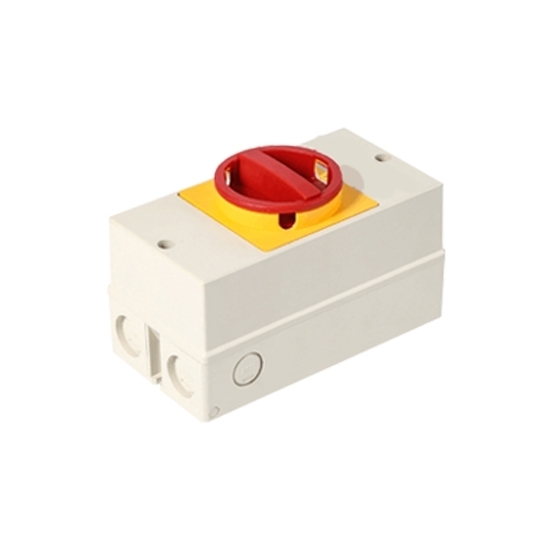

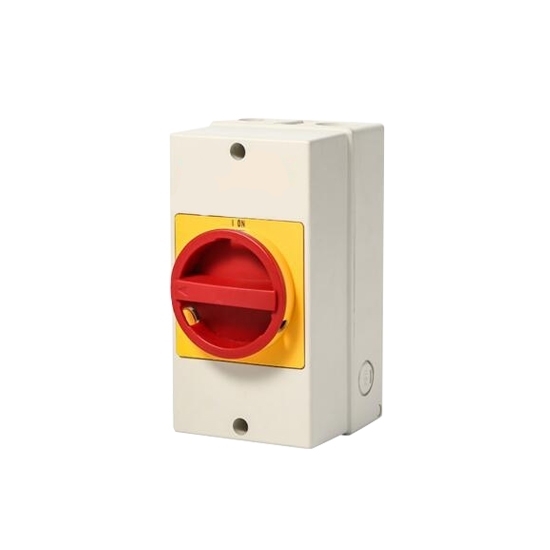

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ23	φ19	85	83	160	150	--	--	φ4.2

Rotary Switch Wiring Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
