2 Position 100A Rotary Switch 3 Pole/4 Pole

0 reviews • Write a review

from

$99.86

Ex Tax: $99.86

Stock: In Stock
Model: RDDLZ-WS30100
Weight: 1.00
SKU: RDDLZ-WS30100

Available Options

Type Selection

Pole

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

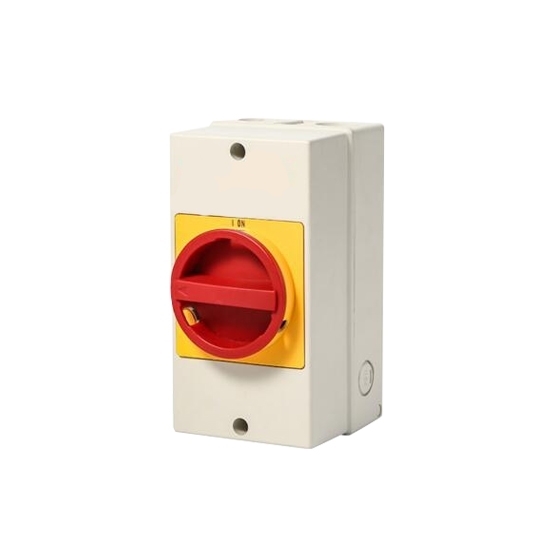

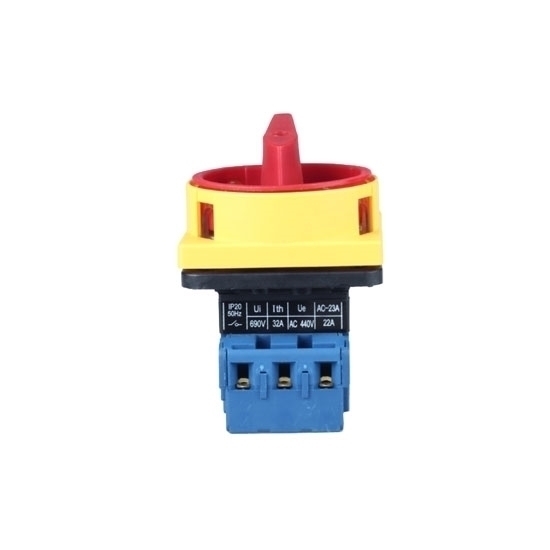

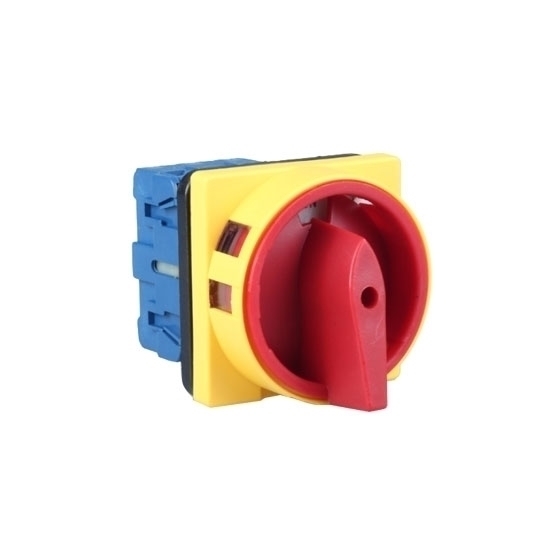

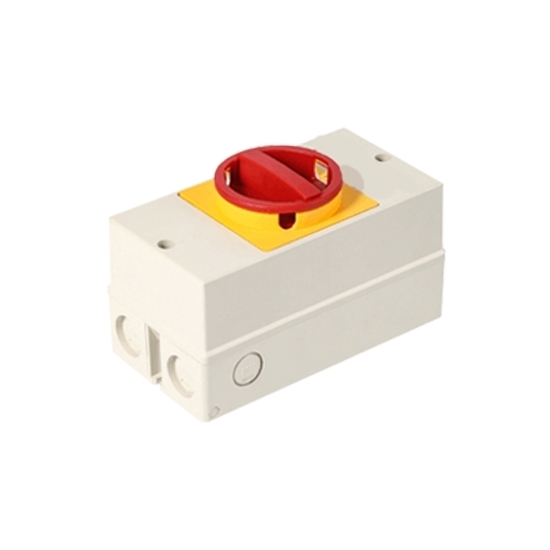

Rotary cam switch 3 pole or 4 pole, 2 position, 100A, suitable for standard low voltage control/load switching and ultra low voltage and electronic applications.

Specification:

Model		RDDLZ-WS30100
Rated Thermal Current		100A
Rated Working Voltage		240V	440V
Rated Working Current	AC-21A	100A	100A
	AC-22A	100A	100A
	AC-23A	70A, 22 kW	70A, 37 kW
	AC-3	57A, 18.5 kW	57A, 30 kW
Pole		3 Pole/4 Pole
Position		2 Position
Type of Current		AC 50Hz
Positions of Main Contact		On or Off
Rated Duty		8 Hours every day, operational efficiency 30 times/hour

Dimensions

1. Default version

Overall Dimension (mm)					Mounting Dimension (mm)
A	B	C	K	L	E	F	D1	D2
64	70	80	22.5	82	48	48	φ10	φ4.2

2. IP65 version

Overall Dimension (mm)					Mounting Dimension (mm)
D3	D4	M	N	P	A1	A2	B	D2
φ37.5	φ23	144	145	250	--	229	124	φ6.5

Rotary Switch Diagram

Working Conditions

1. The ambient air temperature ≤ +40 ° C, and the average temperature within 24 h ≤ +35 ° C.
2. The lower limit of ambient air temperature ≤ -25 °C.
3. The altitude of the installation location is ≤2000m.
4. When the maximum temperature is +40 °C, the relative humidity of the air does not exceed 50%, and the higher relative humidity can be allowed at lower temperatures, for example, 90% at 20 °C. Special measures should be taken for condensation that occasionally occurs due to temperature changes.
