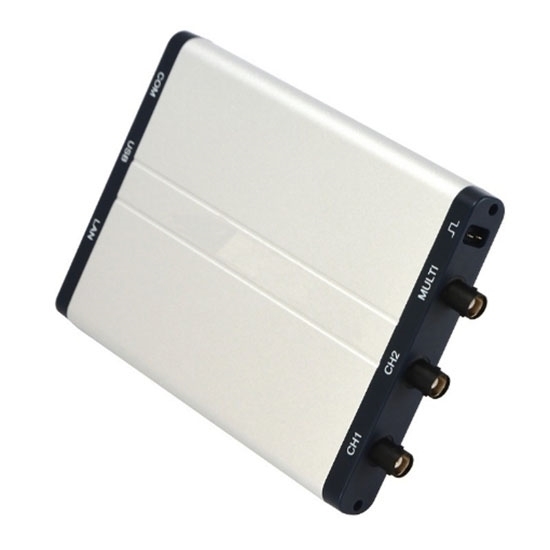

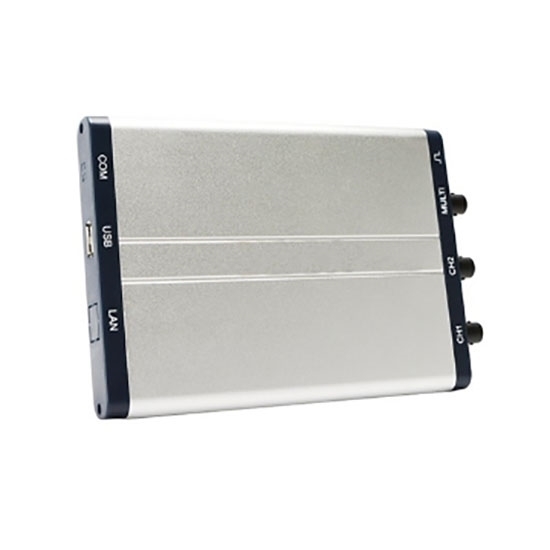

100 MHz PC Based Oscilloscope, Four Channel, 1 GSa/s

0 reviews • Write a review

from

$1,062.06

Ex Tax: $1,062.06

Stock: In Stock
Model: RDDLZ-PBO-100F
Weight: 1.00
SKU: RDDLZ-PBO-100F

Available Options

Short Description

Communication Interface

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

PC oscilloscope with 100 MHz bandwidth, 1 GSa/s sampling rate, 8 bits vertical resolution 40V Max input voltage. High-accuracy PC-based oscilloscope has high technical performance, strong scalability, less development time, and excellent integration four advantages.

Specification

Model	RDDLZ-VDC-3104	RDDLZ-VDC-3104L
Communication Interface	USB2.0	USB 2.0 (with LAN network port)
Bandwidth	100 MHz
Channel	4 Channel+ Multi
Sample Rate	1 GSa/s
Max. Input Voltage	40V(DC + AC peak)
Horizontal Scale (s/div)	2ns/div - 100s/div, step by 1 - 2 - 5
Record Length	5M
Input Impedance	1MΩ ± 2%, in parallel with 10pF ± 5pF
Vertical Sensitivity	5mV/div - 5V/div
Vertical Resolution	8 bits
Trigger Type	Edge, Pulse, Video, Slope, and Alternate
Automatic Measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Waveform Math	+, -, *, /, FFT
Power Supply	≤6.5W
*Dimension (W H * D)**	190* 18* 120mm
Weight	0.3 kg

Accessories

CD ROM
USB cable
Probe
Probe Adjust
Silicon Gel Case
Quick Guide

Dimension (mm)

Tips: What are the advantages of a PC-based oscilloscope?

Compared with stand-alone oscilloscopes, PC-Based USB Oscilloscopes have the following advantages:

Small size, easy to carry.
PC screen is larger so the waveforms can be seen more clearly.
No screen component so the price is lower.
PC interface makes it easy to process and edit files.
Users can design their own programs to control the oscilloscope.
