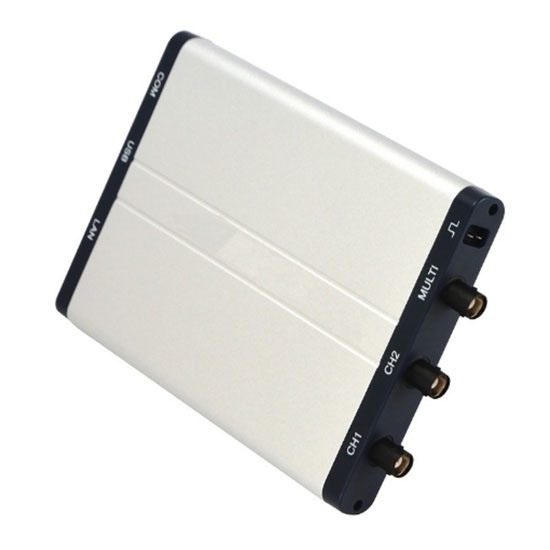

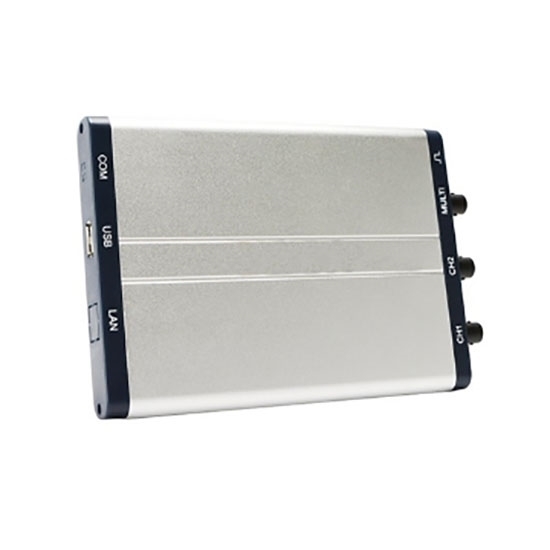

100 MHz PC Based Oscilloscope, Dual Channel, 1 GSa/s

0 reviews • Write a review

from

$750.95

Ex Tax: $750.95

Stock: In Stock
Model: RDDLZ-PBO-10
Weight: 1.00
SKU: RDDLZ-PBO-10

Available Options

Short Description

Communication Interface

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 MHz PC oscilloscope with 1 GSa/s sampling rate, with multiple trigger modes: edge, video, ramp, pulse width, alternate. The digital PC-based oscilloscope is suitable for portable computers, and tablet PC, and suitable for wild mobile use, and business trip use.

Specification

Model	RDDLZ-VDC-3102	RDDLZ-VDC-3102L
Communication Interface	USB2.0	USB 2.0 (with LAN network port)
Bandwidth	100 MHz
Channel	2 Channel+ Multi
Sample Rate	1 GSa/s
Max. Input Voltage	40V(DC + AC peak)
Horizontal Scale (s/div)	2ns/div - 100s/div, step by 1 - 2 - 5
Record Length	10M
Input Impedance	1MΩ ± 2%, in parallel with 10pF ± 5pF
Vertical Sensitivity	5mV/div - 5V/div
Vertical Resolution	8 bits
Trigger Type	Edge, Pulse, Video, Slope, and Alternate
Automatic Measurement	Vpp, Vavg, Vrms, Frequency, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Pre-shoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, DelayA→B , DelayA→B
Waveform Math	+, -, *, /, FFT
Power Supply	≤6.5W
*Dimension (W H * D)**	190* 18* 120mm
Weight	0.3 kg

Accessories

CD ROM
USB cable
Probe
Probe Adjust
Silicon Gel Case
Quick Guide

Dimension (mm)

Tips: Can an oscilloscope measure current?

Most oscilloscopes only directly measure voltage, not current, however, you can measure current with an oscilloscope, using one of two methods. Measure the voltage dropped across a shunt resistor: Some power supply designs may have shunt resistors built into the design for feedback.
