200 W DC Gear Motor, 3000 Rpm, 12V/24V/48V

0 reviews • Write a review

from

$262.48

Ex Tax: $262.48

Stock: In Stock
Model: RDDLZ-BLDC-200
Weight: 1.00
SKU: RDDLZ-BLDC-200

Available Options

Short Description

With Matched Controller

Gear Ratio

Voltage (DC)

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

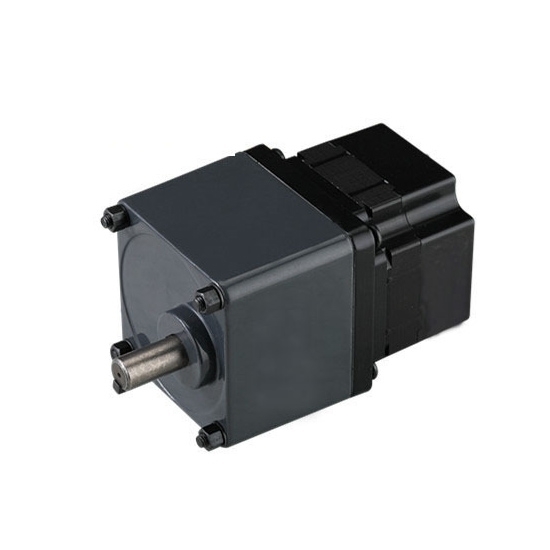

The rated speed of this 200W DC gear motor is 3000 rpm, and the peak torque up to 1.91 Nm, gear ratio ranging from 3:1 to 200:1, available in 12V, 24V, 48V, is a perfect solution for motion control applications where high accuracy, maximum efficiency and a small package are required.

200W DC gear motor specifications

Model	RDDLZ-D5BLD200-12	RDDLZ-D5BLD200-24	RDDLZ-D5BLD200-48
Power	200W	200W	200W
Voltage	12V	24V	48V
Rated Speed	3000 rpm	3000 rpm	3000 rpm
No-load Speed	3300 rpm	3300 rpm	3300 rpm
Rated Current	20.83A	10.42A	5.21A
Rated Torque	0.64 N.m	0.64 N.m	0.64 N.m
Peak Torque	1.91 N.m	1.91 N.m	1.91 N.m
No-load Current	< 6.2A	< 4.13A	< 1.61A
Compatible Driver Model	KVD2412N (Click it to the product page)	BLD-750 (Click it to the product page)	BLD-300B (Click it to the product page)
Protection Grade	IP54
Motor Lead Length	300mm
Temperature	0~50℃
Weight	3 Kg
Gear Head Motor	2GN□K, Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio	3	5	7.5	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed (r/min)	1000	600	400	300	240	200	167	150	120	100	83.33	75	60	50	40	33	30	25	20	17	15
Allowable Torque (N.m)	1.55	2.58	3.87	5.16	5.81	6.97	8.37	8.4	10.51	12.61	15.13	16.81	20	20	20	20	20	20	20	20	20
Allowable Torque (kgf.cm)	15.47	25.79	38.68	51.57	58.1	69.72	83.66	84.04	105.1	126.1	151.3	168.1	200	200	200	200	200	200	200	200	200

Note:

The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit: mm)

*Mounting screws are included with gearbox

Details

Tips: What are the inspection contents for gear motor before use?

The gear motor shall be inspected before it works, we can check whether there's hidden danger or it's properly installed. Then what are the inspection contents for gear motor before use?

Please confirm the appearance of gear motor before use, check if there's oil leakage.
Please confirm in advance whether the specifications of the gear motor are in accordance with the design specifications.
Please confirm the service voltage of the gear motor, a voltage regulator can be added if the voltage is unstable.
Please confirm the seat is fixed, in case of loosening when running and transmission.
