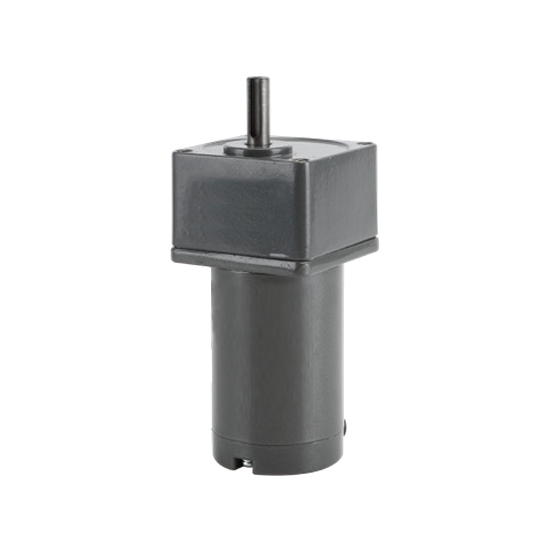

15 W DC Gear Motor, 1800 Rpm, 12V/24V

0 reviews • Write a review

from

$117.62

Ex Tax: $117.62

Stock: In Stock
Model: RDDLZ-BLDC-15
Weight: 1.00
SKU: RDDLZ-BLDC-15

Available Options

Short Description

Gear Ratio

Voltage (DC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy 12V or 24V DC gear motor online. 15W electric DC motor features 1800 rpm rated speed, 0.37 Nm/0.41 Nm rated torque, combines with a gearbox to provide precise speed and position control. 5:1 to 18:1 gear ratios are available.

Specifications

Model	RDDLZ-DM07-12-15-1800	RDDLZ-DM07-24-15-1800
Power	15W
Voltage	12V	24V
Speed/min	1800 rpm
Current	1.3A	0.8A
Starting Torque	0.37 N.m	0.41 N.m
Gear Ratio	5, 7.5, 10, 12.5, 15, 18, Contact Us for Other Gear Ratios

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

Dimension (Unit: mm)

Wiring Diagram of Motor

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: Low power DC Gear Motor Main Applications

Robotics: They are used to drive small robot wheels and arms, providing high torque at low speed and precise motion control.
Home Appliances: Low power DC gear motors are commonly used in automatic door locks, electric curtains, and coffee machines, where quiet and energy-efficient operation is needed.
Automotive Systems: Found in power windows, seat adjusters, and mirror controls, thanks to their compact size and low power consumption.
