150 W DC Gear Motor, 3000 Rpm, 12V/24V/48V

0 reviews • Write a review

from

$215.36

Ex Tax: $215.36

Stock: In Stock
Model: RDDLZ-BLDC-150
Weight: 1.00
SKU: RDDLZ-BLDC-150

Available Options

Short Description

With Matched Controller

Gear Ratio

Voltage (DC)

With Brake

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

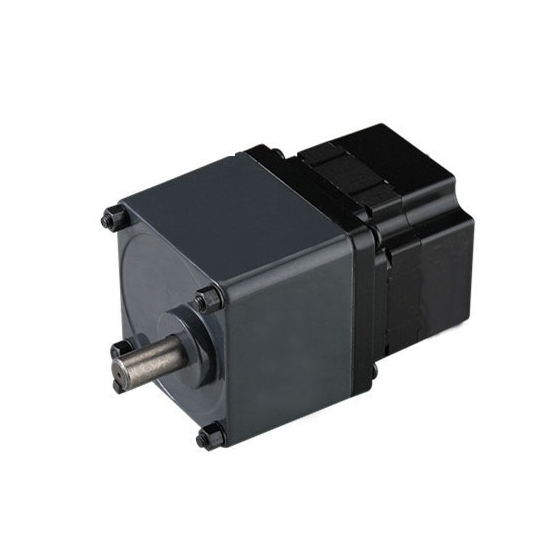

Best quality DC brushless motor with gear head, 150W rated power and 3000 rpm speed, rated torque is 0.48 Nm, designed to operate with 12V, 24V, 48V. This affordable DC gear motor is generaly used in various industrial applications like food packing machine, robotics medical, instruments etc..

150W DC gear motor specifications

Model	RDDLZ-D5BLD150-12	RDDLZ-D5BLD150-24	RDDLZ-D5BLD150-48
Power	150W	150W	150W
Voltage	12V	24V	48V
Rated Speed	3000 rpm	3000 rpm	3000 rpm
No-load Speed	3300 rpm	3300 rpm	3300 rpm
Rated Current	15.63A	7.81A	3.91A
Rated Torque	0.48 N.m	0.48 N.m	0.48 N.m
Peak Torque	1.43 N.m	1.43 N.m	1.43 N.m
No-load Current	< 5.2A	< 3.13A	< 1.61A
Compatible Driver Model	BLD-30A	BLD-300B (Click it to the product page)
Weight	3 Kg
Protection Grade	IP54
Motor Lead Length	300mm
Temperature	0~50℃
Gearbox Model	5GN□K, Enter the gear ratio into the box (□) within the model name
Gear Ratio	3, 5, 7.5, 10, 12.5, 15, 18, 20, 25, 30, 36, 40, 50, 60, 75, 90, 100, 120, 150, 180, 200

Note: Motor length, power, voltage and speed can be customized according to your requirements under the allowed circumstance of adoptable dimension.

The allowable torque with a gearbox

Gear Ratio	3	5	7.5	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
Speed (r/min)	1000	600	400	300	240	200	167	150	120	100	83.33	75	60	50	40	33	30	25	20	17	15
Allowable Torque (N.m)	1.16	1.93	2.9	3.87	4.36	5.23	6.27	6.3	7.88	9.46	11.35	12.61	15.76	18.91	20	20	20	20	20	20	20
Allowable Torque (kgf.cm)	11.6	19.34	29.01	38.68	43.57	52.29	62.74	63.03	78.79	94.55	113.5	126.1	157.6	189.1	200	200	200	200	200	200	200

Note:

The values colored "Red" indicate that the gearbox and the DC motor are running in the same direction, and the other values are in the opposite direction.
When it is desired to reduce the speed further than the gear ratio in the table above, an intermediate speed reducer with a gear ratio of 10 can be installed between the motor and the gearbox.

Wiring Definition

Dimension (Unit: mm)

*Mounting screws are included with gearbox

Details

Tips: How long should the gear motor replace the engine oil?

The gear motor shall replace the engine oil for the first time after operating 200~300 hours, the oil quality shall be regularly inspected in following use. If any impurity or deteriorated oil is mixed in, the engine oil shall be replaced. Generally, the gear motor that continuously works for long term shall replace its engine oil every 5000 hours or every year, the gear motor that has stopped for a long term shall replace its engine oil before starting again.

When replacing the engine oil, we shall note that the same oil shall be added into the gear motor, it’s not allowed to mix the oil in different brands, however, the oil in same brand but different viscosity is allowed. When replacing the engine oil, the gear motor shall be cooled down till there's no burning danger, however, the gear motor shall be warm because the oil viscosity increases in fully cool, oil discharge will be difficult.
