4" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$635.89

Ex Tax: $635.89

Stock: In Stock
Model: RDDLZ-ANGLE-100
Weight: 1.00
SKU: RDDLZ-ANGLE-100

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

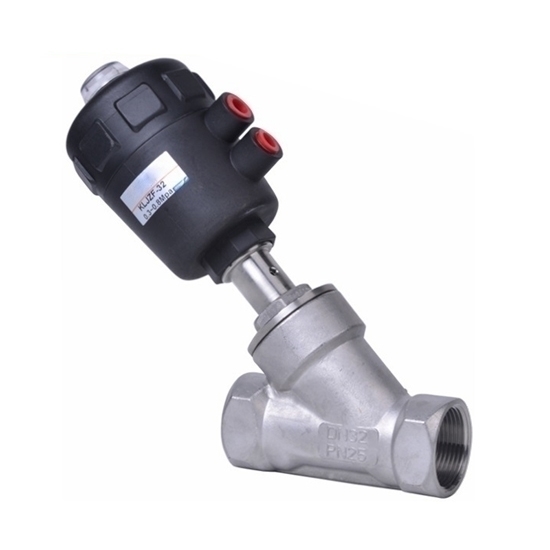

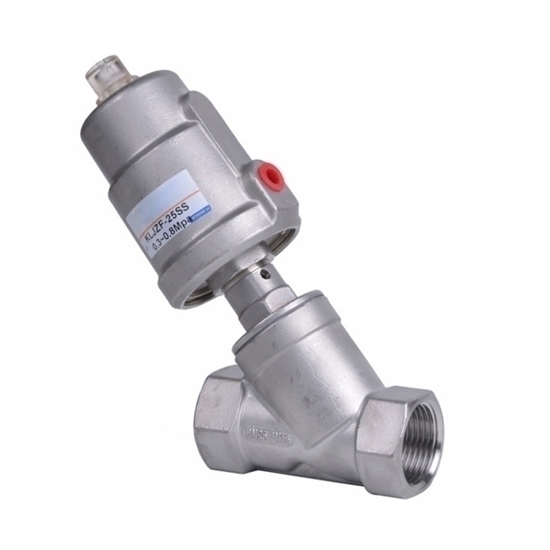

DN100 pneumatic angle seat valve for sale at factory price. It is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN100
Pipe Thread Type: 4 inch (DN100), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
100	114	63	ZG1/8"	ZG4"	350	300	235	35

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
125	ZG4"	235	420	35	168	97	164	395

Tips for using pneumatic angle seat valve

When using the angle seat valve flow direction of low in and high out (waterproof hammer):

When this flow direction is selected, the service life of the product can be increased.
When the working medium is liquid, choose this flow direction to prevent the impact of hammer.
The working pressure must be below 0.3MPa, otherwise a double-acting actuator angle seat valve must be selected.

When using flow direction high in and low out:

When the working medium of the pneumatic angle seat valve is steam or gas, the flow sealing performance of the product can be improved when the flow direction is selected. In addition, when the working medium is liquid, it is not waterproof against hammer shock.
