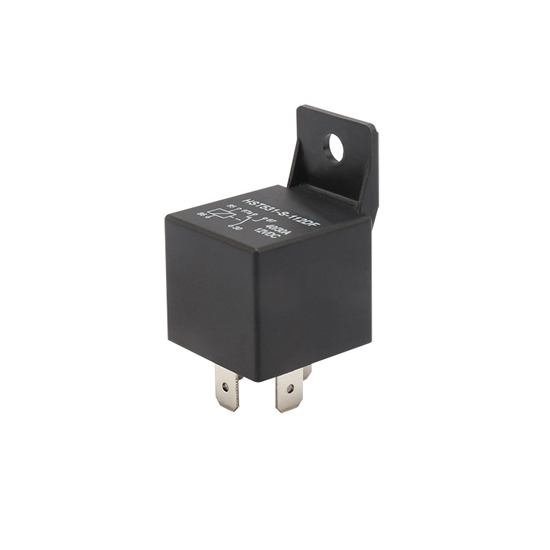

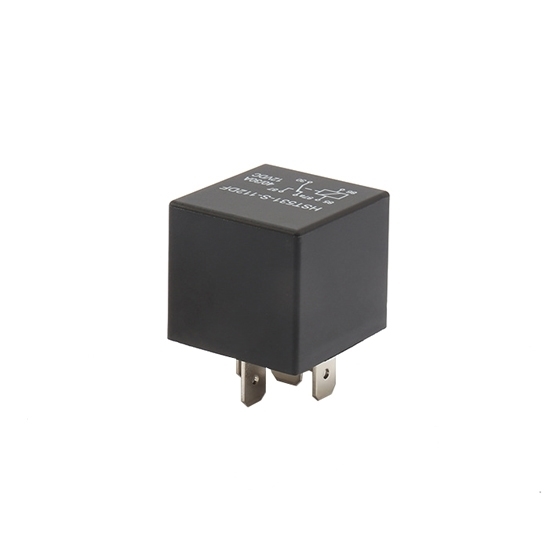

30A Automotive Starter Relay, 12V/24V DC

0 reviews • Write a review

from

$55.49

Ex Tax: $55.49

Stock: In Stock
Model: RDDLZ-ASR-30
Weight: 1.00
SKU: RDDLZ-ASR-30

Available Options

Short Description

Installation Method

Contact Form

Coil Rated Voltage

Contact Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ automotive starter relay serves as a critical electrical switch that manages the substantial current required to engage the starter motor and initiate the engine's ignition process. Their role is pivotal in safeguarding the vehicle's ignition switch from excessive wear and tear by efficiently managing the flow of high currents necessary for starting the engine.

Specification

Model			RDDLZ-JD1914-12/24VDC
Coil Parameter	Rated Coil Voltage		12V DC	24V DC
	Rated Current		150mA	75mA
	Coil Resistance (Ω±10%)		80Ω	320Ω
	Operate Voltage (Max.)		6~8V DC	12~16V DC
	Release Voltage (Min.)		0.6~3.6V DC	1.2~7.2V DC
	Applicable Voltage (Max.)		15.6V DC	31.2V DC
Operation Condition	Insulation Resistance		100MΩ Min. (at 500V DC)
	Dielectric Strength	Between Contacts	500V AC (for one minute/sec)
		Between Coil and Contacts	750V AC (for one minute/sec)
	Shock Resistance	Operating Extremes	10g
		Damage Limits	20g
	Vibration Resistance		10~55Hz 1.5mm
	Release Time		7ms
	Operate Time		5ms
	Ambient Temperature		-30℃~+80℃
	Relative Humidity		40~85%
	Weight		35g
	Safety Standard		CCEE Certification
Contact Parameter	Contact Form		1Z (1C)/ 1H (1A)
	Contact Material		AgSnO₁₂
	Contact Rating (Resistance)		NO: 40A 14V DC
	Max. Switching Voltage		75V DC
	Max. Switching Current		30A/40A
	Max. Switching Power		560W
	Contact Resistance		100mΩ Max. at 6V DC 1A
	Electrical Life		100000 Operations (at 30 Operations/Minute)
	Mechanical Life		10000000 Operations (at 30 Operations/Minute)

Dimension (Unit: mm)

Tips: Can a general-purpose relay be used to replace the car starter relay?

It is not recommended to use a general-purpose relay to replace the auto starter relay. The starter relay is specially designed to start the motor and can withstand high current and voltage. General-purpose relays may not be able to handle the peak value of the starting current, which can easily cause the relay to overheat or be damaged. In addition, the starter relay usually has special wiring and control requirements to ensure safe and reliable operation. Using an unsuitable relay may cause the starting circuit to malfunction, affect the normal operation of the equipment, and even cause safety hazards. Therefore, it is recommended to always use the original starter relay that matches the equipment to ensure the performance and safety of the equipment.
