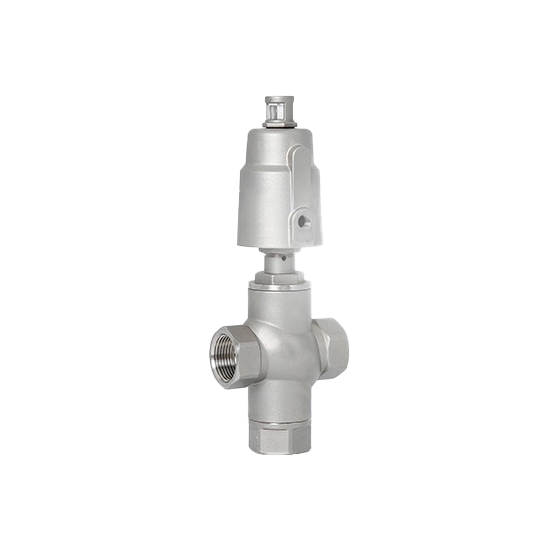

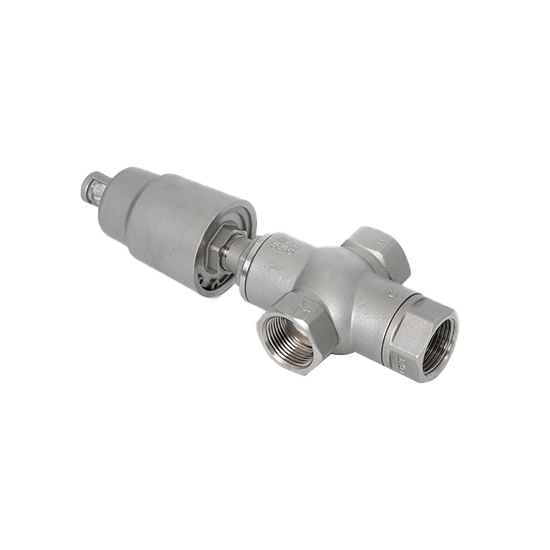

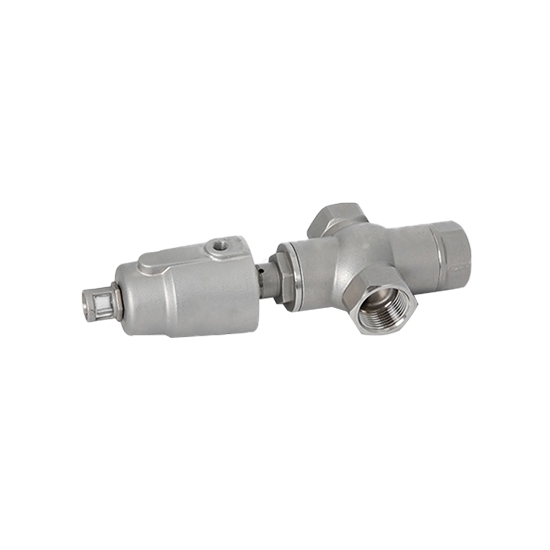

1" Pneumatic Angle Seat Valve, 3 Way

0 reviews • Write a review

from

$175.96

Ex Tax: $175.96

Stock: In Stock
Model: RDDLZ-S3-DN25
Weight: 1.00
SKU: RDDLZ-S3-DN25

Available Options

Valve Body Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This angle seat valve cannot be used for drinking water.

Versatility is a hallmark of this valve, offering multiple control types such as Normally Closed, Double Acting with Spring, and Double Acting with Compressed Air. Operating seamlessly in temperatures ranging from -10℃ to +180℃ for the medium and -10℃ to +80℃ ambient temperatures.

Specification

Model	RDDLZ-S3-DN25
Work pressure	Max1.6MPa
Control pressure	0.3-0.8MPa
Control medium	Neutral gas or air
Body material	CF8M
Actuator material	CF8
Material	304 stainless steel
Seal material	PTFE
Medium temperature	-10℃~+180 ℃
Ambient temperature	-10℃~+80℃
Control type	Normally closed, Double acting with spring, Doubleacting with compressed air.
Connection	Thread
Applicable medium	Water, steam, oil, neutral gas or liquid, organic solvent, acid base solution, etc
Weight	3kg

Function

Pressure Date

Single acting, with strong spring

Size	Actuator	lnterface	lnner hole（mm）	Flow rate A⟶B	KV (m2/h) A⟶C	Differential pressure range ∆P (MPa) A⟶B / A⟶C	Differential pressure range ∆P (MPa) C⟶A	Control pressure (MPa)
DN25	50	1"	24	13.9	14.4	0-1.1	0.6	0.45-0.65

Dimension (Unit:mm)

Size	Actuator	Q	C	R	G	A	K	L	SW	Weight(kg)
DN25	50	G1/8	60	33	1"	242	68	90	40	3

Tips: What are the typical applications of pneumatic angle seat valves?

Pharmaceuticals: Control of liquids in manufacturing processes.
Food and Beverage: Handling fluids in filling, packaging, and mixing.
Water Treatment: Regulating water flow and treatment chemicals.
Chemical Processing: Controlling the flow of chemicals in manufacturing.
Textile Manufacturing: Managing dyes and chemicals in production.
Automotive Industry: Regulating fluids in production lines.
HVAC Systems: Maintaining fluid flow in heating and cooling systems.
Biotechnology and Laboratories: Precise fluid control in research settings.
Pulp and Paper: Handling chemicals and water in paper production.
Mining and Minerals Processing: Controlling flow in mining operations.
