1-1/2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$179.69

Ex Tax: $179.69

Stock: In Stock
Model: RDDLZ-ANGLE-40
Weight: 1.00
SKU: RDDLZ-ANGLE-40

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1-1/2 inch thread port size pneumatic angle seat valve for sale at factory price. It is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat control valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN40
Pipe Thread Type: 1-1/2 inch (DN40), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

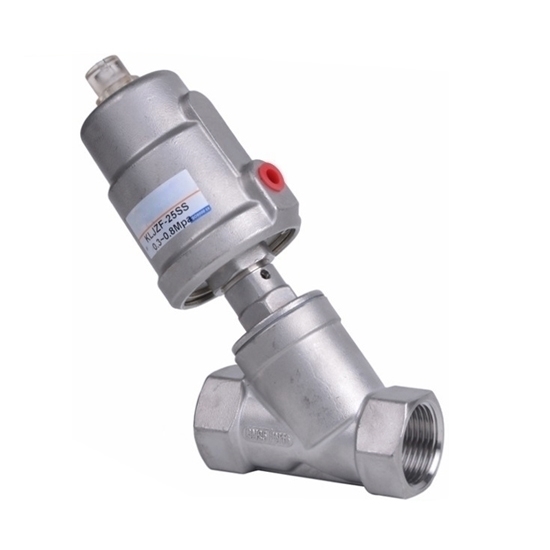

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
63	76	42	ZG1/8"	ZG1-1/2"	182	190	116	21

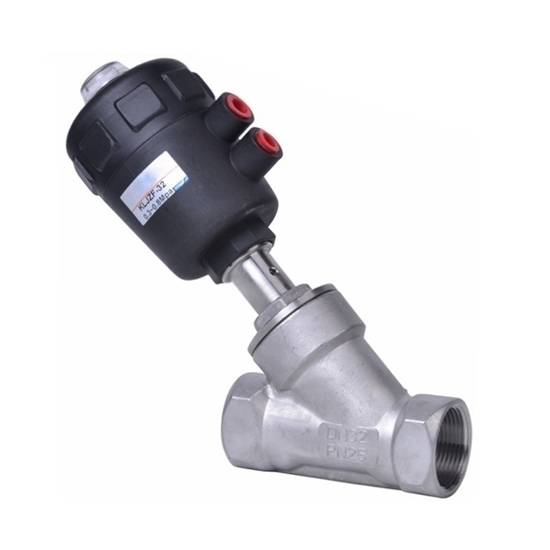

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
63	ZG1-1/2"	129	230	21	80	52	120	185

Tips for installing pneumatic angle seat valve

Pipes must be clean and free of contamination.
Install as desired, but preferably with the actuator facing up. Pay attention to the flow direction.
When connecting the angle seat valve, pay attention to the alignment of the pipeline, and remove the actuator only when the user has special requirements.
Shut off the fluid and control air supply and reduce the pressure in the piping system before opening or servicing this angle seat valve.
