1" Pneumatic Angle Seat Valve, 2 Way, 2 Position

0 reviews • Write a review

from

$134.99

Ex Tax: $134.99

Stock: In Stock
Model: RDDLZ-ANGLE-25
Weight: 1.00
SKU: RDDLZ-ANGLE-25

Available Options

Short Description

Actuator Material

Valve Status

Pipe Thread Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 inch thread port size pneumatic angle seat valve for sale at factory price. It is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: RDDLZ-KLJZF-DN25
Pipe Thread Type: 1 inch (DN25), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

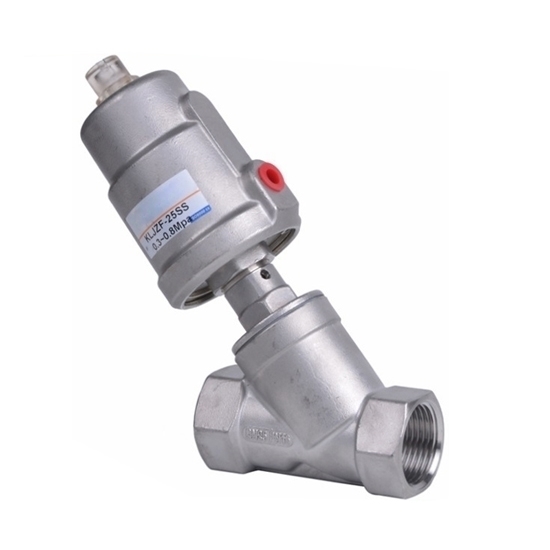

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Actuator	D	R	P	G	H	L	L1	T
50	62	33.5	ZG1/8"	ZG1"	1148	156	90	16

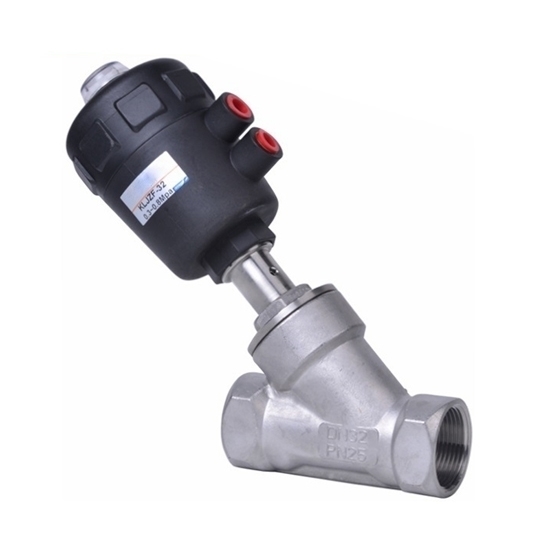

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Actuator	D	A	B	C	φE	F	G	H
63	ZG1"	105	215	19	80	52	120	175

Tips: What is a pneumatic angle seat valve?

The angle seat valve is a pilot angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. The angle seat valve is widely used in short-term frequent starts, maintaining the flow rate can save space, and has the characteristics of sensitive response and accurate action. It is equipped with solenoid valve, and the gas and liquid flow can be accurately controlled by pneumatic control. Accurate temperature control, dripping liquid and other requirements can be achieved.
