100A 30V 3000W Variable Linear DC Power Supply

0 reviews • Write a review

from

$3,269.89

Ex Tax: $3,269.89

Stock: In Stock
Model: RDDLZ-DCPS30100
Weight: 1.00
SKU: RDDLZ-DCPS30100

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

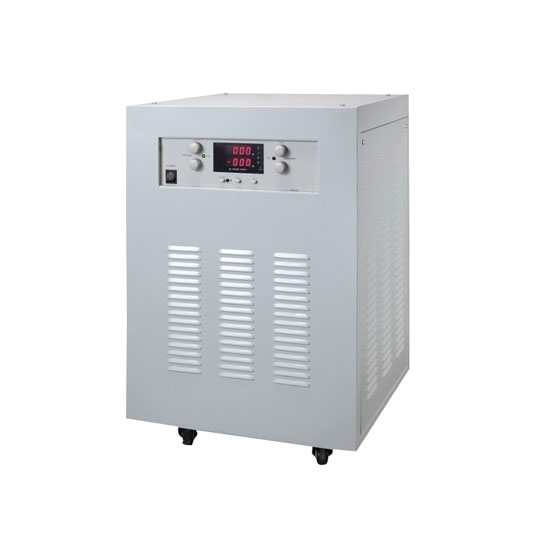

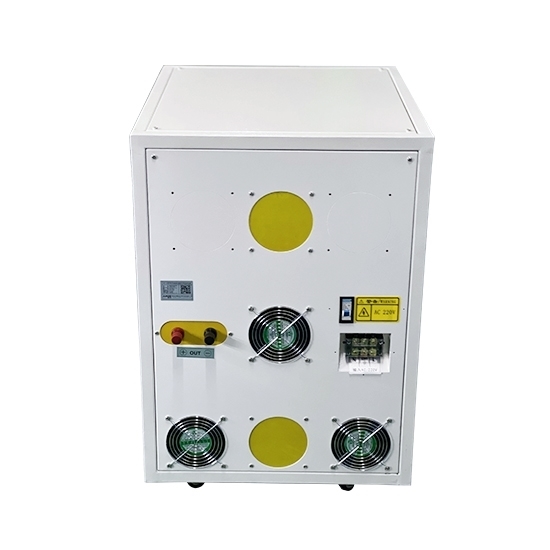

RDDLZ variable linear DC power supply for use in laboratories and industries. It supplies 0 to 30V DC at up to 100A. Output voltage and current are adjustable and displayed on a 3 digit LED display.

Specification

Model	RDDLZ-JK30100S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-100A
Output Power	3000W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	100mA
Efficiency	>60%
Voltage Regulation
Load Regulation (CV)	1×10^-3+8mV
Line Regulation (CV)	1×10^-3+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-3+3mV
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	480 (W) x 520 (H) x 700 (D) mm
Weight	110kg
Package List	1 x DC Power Supply Host, 1 x User Manual

Tips: Main circuit of linear DC power supply

The linear DC power supply is actually a high power transistor connected in series at the output end of the thyristor power supply (actually multiple ones are connected in parallel). As long as the control circuit outputs a small current to the base of the transistor, it can control the output high current of the transistor. This makes the power supply system stabilize again on the basis of the SCR power supply, so the voltage stabilization performance of this linear stabilized power supply is 1-3 orders of magnitude better than that of the switching power supply or the SCR power supply. However, the power transistor (also known as the regulator) generally takes up 10V, and every 1A of output current will consume 10W of power inside the power supply. For example, the loss of a 500V 5A power supply is 50W, which accounts for the total output power Of 2%.
