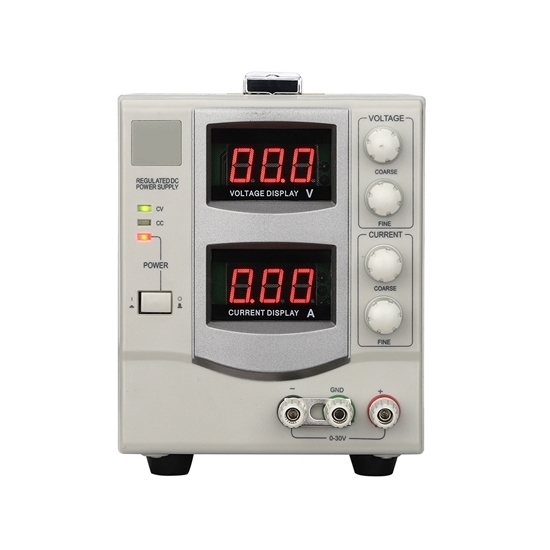

10A 12V 120W Variable Linear DC Power Supply

0 reviews • Write a review

from

$291.49

Ex Tax: $291.49

Stock: In Stock
Model: RDDLZ-DCPS1210
Weight: 1.00
SKU: RDDLZ-DCPS1210

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12 volt 10 amp variable linear DC power supply caters to a diverse array of applications in electronics, prototyping, and testing. Its linear configuration plays a pivotal role in minimizing output noise, thereby augmenting the stability of interconnected circuits. This adjustable linear DC power supply offers precise adjustments for voltage and amperage settings, ensuring optimal performance and safety for connected devices.

Specification

Model	RDDLZ-JK1210S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-12V
Output Current Range	0-10A
Output Power	120W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	100mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-5+2mV
Line Regulation (CV)	1×10^-5+5mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	5×10^-5+10mV
Line Regulation (CC)	3×10-5+10mA
Temperature Coefficient	300PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months
Size	290 (L) x 130 (W) x 165 (H) mm
Weight	5.5kg

Detail

Tips: How do I calibrate a variable linear DC power supply?

To calibrate a variable linear DC power supply, follow these steps. First, ensure the power supply is off. Connect a calibrated voltmeter to the output terminals. Set the power supply to a specific voltage and turn it on. Adjust the output voltage knob until the voltmeter reads the desired value. Repeat this process for multiple voltage settings across the range. Check the accuracy at various points to identify any discrepancies. If necessary, make adjustments using the calibration controls provided by the manufacturer. Confirm the accuracy again after adjustments. Additionally, consider calibrating the current limiting function by using a calibrated ammeter and a load resistor. Document the calibration results and keep a record for future reference. Periodic recalibration is recommended to maintain accuracy.
