Fanless Embedded Industrial PC, 3865U Dual Core 1.8 GHz, 4 COM

0 reviews • Write a review

from

$880.16

Ex Tax: $880.16

Stock: In Stock
Model: RDDLZ-IPC-700
Weight: 1.00
SKU: RDDLZ-IPC-700

Available Options

Usable System

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial PC Features

Celeron 3865U dual core 1.8GHz
1*VGA+2*Intel 1000M Lan+2*USB2.0+2*USB3.0+4*COM (COM1 can support RS422/485)
Embedded 4G DDR4 RAM+128G SSD
High quality pure aluminum fanless case
1*7+15 Pin SATA, 1*half-size Mini-PCIE support WiFi
2* Intel i211-AT 10/100/1000M LAN card, support wake on lan, PXE
DC onboard power supply 9-36V and AC power adapter 12V/5A
Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal, Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance, Parking Pay Station, Channel System, Medical electronic etc..

Specification

Model	IBOX-700 Plus
Material	Pure Aluminum
Processor	Onboard Intel Celeron 3865U (Dual core dual threads, 2MB Third Cache,1.8 GHz)
RAM	4G DDR4 RAM
SSD	128G
CPU Architecture	KabyLake-U
Applied Operating System	Win7/ win10/ Linux (Centos or Ubuntu) system
BIOS	64Mb SPI FLASH
Display Chip	Integrated Intel HD Graphics 610/620
Display Port	1VGA, 1HDMI (Built-in pins, support Synchronous and Asynchronous Dual Display)
Rear I/O	2USB3.0, 2USB2.0, 1Power Switch, 2Intel 1000M LAN, 1*VGA
	13Pin Power Phoenix Connector, 1Clean COMS Key, 1MIC, 1Speaker
	4COM (Max. Support 6COM, COM1 can support RS232/422/485 Optional)
Expansion Slot	Support 1*MINI PCIE Slot (WIFI/3G/4G Optional), Embedded SIM Slot
	Support 1*MINI PCIE Slot (Support MSATA)
	Built-in 2*USB2.0
	GPIO, HDMI, Extra 2*COM is Optional (Standard version doesn't have these ports)
LAN	2*Intel i211-AT 10/100/1000M LAN
Storage	Onboard 12.5" HDD, 1MSATA
Power Supply	DC 9～36V wide voltage input, Support positive pole and negative electrode connect reversely protection
Work Temperature	0℃～+50℃ (HDD), -20℃～+60℃ (SSD), Surface air flow
Work Humidity	5% ～ 95% Non-Condensing
Dimension	18516074 mm (Not include bracket)
Weight	2.2kg (Not include bracket)

Note:
*Packing list included PC + Power Adapter + Power Cord + CD Driver.
*RAM, SSD, HDD, WiFi, Bluetooth are optional, if necessary, please contact customer service for your configuration.
*Need more fanless industrial PCs models information, please check the Model Brochure.

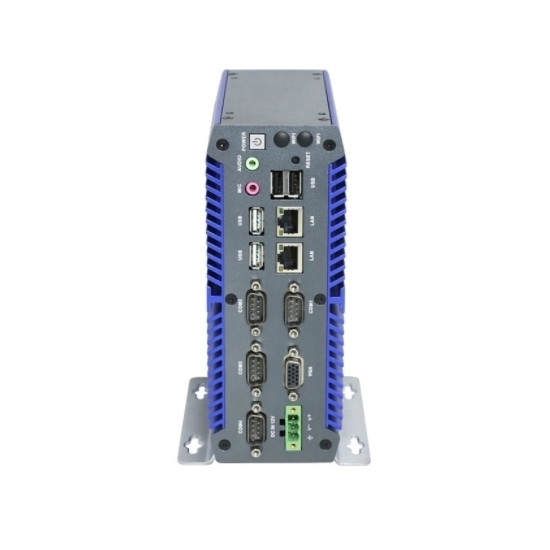

Industrial PC Rich Interfaces

Applications

Tips:
Industrial PCs work in different situations, which inevitably lead to the difference between their components and general-purpose computers. For example, industrial PC can have multiple serial ports without a display screen, and its CPU is dedicated industrial control CPU, and the system boards used is very small. All of these characteristics reflect the differences in the composition of ordinary computers and industrial computers. Because of the harsh environment of industrial control, special parts are often required to form the computer for industrial control. In some cases, for example, a wide range of working temperatures is required, and many industrial computers can work within temperatures ranging from minus 20 to 80 degrees. In other cases, more stable devices, such as anti-interference devices, are needed.
