Embedded Fanless Industrial PC, Core I5, Linux/Win 7

0 reviews • Write a review

from

$1,139.85

Ex Tax: $1,139.85

Stock: In Stock
Model: RDDLZ-IPC-Ci5LW
Weight: 1.00
SKU: RDDLZ-IPC-Ci5LW

Available Options

Usable System

CPU

RAM/ Hard Disk Capacity

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy fanless industrial PC from reliable manufacturer online. Optional CPU Intel Core i5 6200U/ Celeron 3855U (dual core quad/dual threads), system Linux/Windows 7/Windows 10, standard interface Intel 1000M LAN*2, COM*6. Embedded industrial grade computer, suitable for various application, such as industrial automation, medical, logistics transportation, warehouse, electronic education, machine and so on.

Specification

Model	RDDLZ-IBOX-706 Plus
CPU	Intel Core i5 6200U (Dual core quad threads, 2.3 GHz, Max turbo 2.8 GHz, 3M third level cache)
CPU	Intel Celeron 3855U (Dual core dual threads, 1.6 GHz, 2M third level cache)
CPU Structure	Skylake-U/ KabyLake-U
Usable System	Linux, Windows 7, Windows 10
RAM	1*DDR4 1866/2133 SODIMM RAM Slot, Max. 16GB
BIOS	AMI UEFI BIOS
Display Chip	Integrated Intel HD Graphics 510/520
Display Port	1VGA, 1HDMI

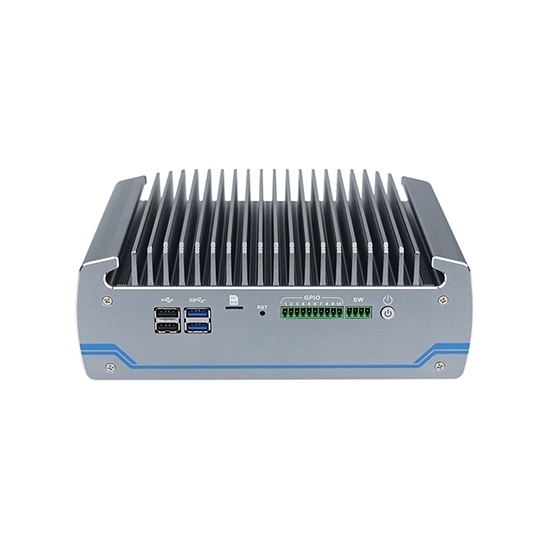

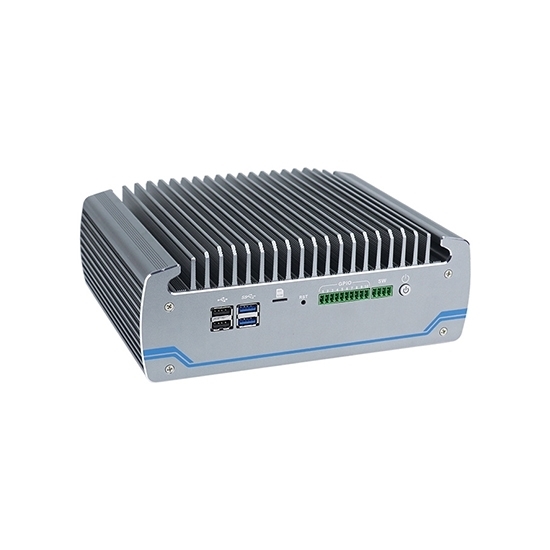

Front I/O Interface	2*USB 3.0
	2*USB 2.0
	1*10 PIN GPIO Phoenix Connector (3.3V or 5V Optional)
	1*RST Button
	1*External SIM Slot
	1*Power Switch
	1*4 PIN switch Signal Phoenix Connector

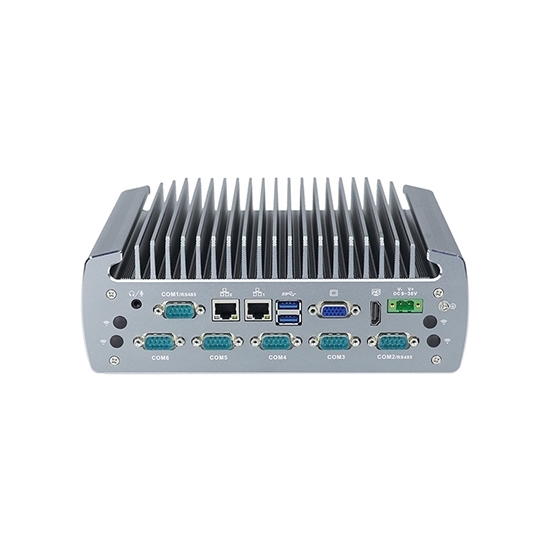

Rear I/O Interface	2*USB 3.0
	2*Intel 1000M LAN
	1*VGA
	1*HDMI
	1*Audio (Support Mic and Speaker at the same time)
	6*COM (COM1 and COM2 have RS232/RS422/485 Optional)
Expansion Port	1M.2 2280 Slot (Support SATA and PCIE X4 signal's SSD) 1M.2 Slot (Support 3G/4G, 1External SIM Slot) 1MINI PCIE Slot (WIFI/Bluetooth/3G/4G Optional, Embedded SIM slot) Optional Ports: 10COM, LPT, 1PCIE X1 (Standard version doesn't include these ports)
Network	2*Intel i211-AT 1000M LAN
Storage	Onboard 12.5" HDD, 1M.2 2280 Slot (2*2.5" HDD, Support RAID0/1)
Input Voltage	Support DC 9V～36V wide voltage Input support positive pole and negative electrode connect reversely protection
Other Function	Auto power on when there is electricity, timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level)
Working Temperature	0 ~ +50℃ (Commercial HDD), -20℃ ~ +60℃ (Industrial SSD), Surface air flow
Working Humidity	5%~95% non-condensing
Certification	CE, CCC, FCC Class A, ROHS
Color	Titanium gray (Any color can be customized)
Material	High-quality all aluminum, surface anodic oxidation
Dimension	230 * 175 * 84mm (Not include the brackets)
Net Weight	2.8 kg (Not include the brackets)

Embedded Fanless Industrial PC Dimensions Diagram (Unit: mm)

Accessories List

Name	Quantity	Specification
Power Adapter	1	DC 12V, 5A
Power Cord	1	Any Plug Optional (US, EU, UK etc.)
Wall Bracket	2	Standard
Motherboard CD Driver	1	Neutral

Tips: How to install fanless industrial PC quickly?

Prepare the fanless industrial PC case first, and then install the fanless industrial PC power supply. Pay attention to the installation position when installing the industrial PC power supply, and the fan should face the motherboard.
Install the motherboard. Fix the motherboard to fanless industrial PC case according to the small holes on motherboard.
Install the CPU. Remove the CPU pressure bar, place the CPU on the clamping seat, and then fix the pressure bar.
Install the fan on motherboard. Fix the fan with screws. Because the fan disperses the heat to motherboard, the fanless industrial PC will vibrate when it is working. If the installation is not reliable, it is easy to fail. When finished, connect the fan to power port on the motherboard.
Install the memory stick. Open the buckle where the memory stick is installed and put the memory stick in.
Install the hard disk. Connect the hard disk required by fanless industrial PC to the SATA interface.
