10A 100V 1000W Variable Linear DC Power Supply

0 reviews • Write a review

from

$958.29

Ex Tax: $958.29

Stock: In Stock
Model: RDDLZ-DCPS10010
Weight: 1.00
SKU: RDDLZ-DCPS10010

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

An adjustable linear DC power supply is a regulated unit designed for electronics, providing variable voltage and current outputs. This power source is instrumental in testing and powering various electronic devices. Engineered with precision, it offers adjustable voltage and current settings, enabling users to fine-tune power parameters to suit specific requirements. The regulated nature ensures a stable output regardless of input fluctuations or load variations.

Specification

Model	RDDLZ-JK10010S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	DC 0-100V
Output Current Range	0-10A
Output Power	1000W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.1%＋2d
Voltage Display Resolution	100mV
Current Display Resolution	10mA
Efficiency	>65%
Voltage Regulation
Load Regulation (CV)	1×10^-5+8mV
Line Regulation (CV)	1×10^-5+3mV
Ripple & Noise (P-P)	0.5mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-5+3mA
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Recovery Time	≤100µs
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Warranty	12 Months

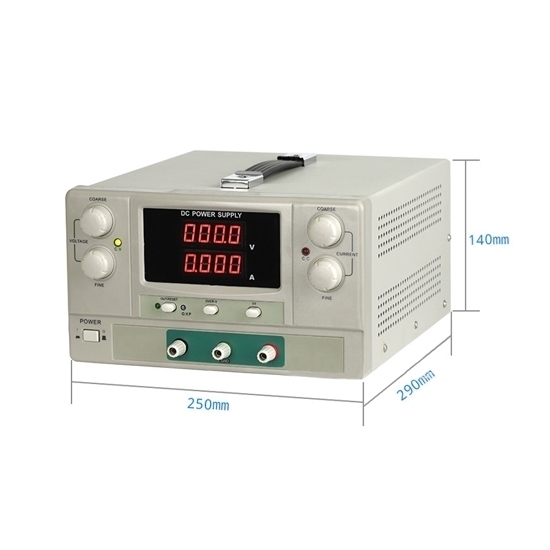

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	12kg

Detail

Tips: Can I use a variable linear DC power supply for sensitive electronic components?

Yes, you can use a variable linear DC power supply for sensitive electronic components. Linear power supplies provide stable and low-noise output, making them suitable for applications requiring precise voltage regulation and minimal electrical noise. The variable feature allows you to adjust the output voltage to match the requirements of your sensitive components. However, be cautious of potential heat dissipation, as linear power supplies can generate more heat compared to switch-mode power supplies. Ensure the power supply's maximum current and voltage ratings align with the specifications of your components. Additionally, consider features like short-circuit protection to prevent accidental damage. Overall, a well-regulated linear power supply can be a reliable choice for powering sensitive electronic devices.
