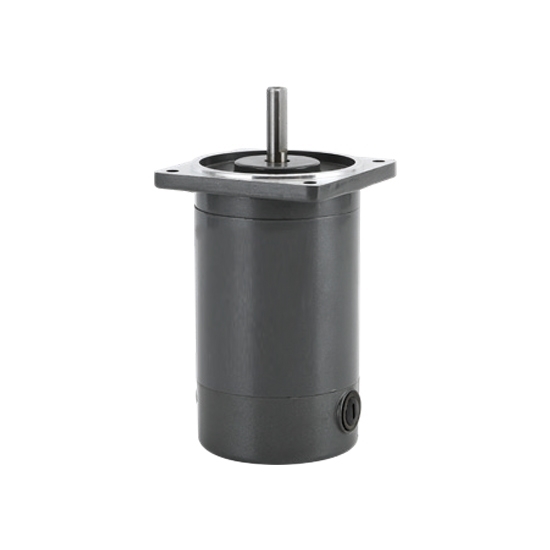

120 W DC Gear Motor, 3200 Rpm, 12V/24V

0 reviews • Write a review

from

$199.55

Ex Tax: $199.55

Stock: In Stock
Model: RDDLZ-BLDC-120
Weight: 1.00
SKU: RDDLZ-BLDC-120

Available Options

Short Description

Gear Ratio

Voltage (DC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

120W small DC gear motor operates at 12V/24V voltage, with 3200 high rpm/min, 3.66 N.m torque and 5:1 to 18:1 gear ratio, high rpm gear motor, widely used in various industrial applications.

Specifications

Model	RDDLZ-DM09-12-120-3200	RDDLZ-DM09-24-120-3200
Power	120W
Voltage	12V	24V
Speed/min	3200 rpm
Current	14A	6.8A
Starting Torque	3.66 N.m	3.66 N.m
Gear Ratio	5, 7.5, 10, 12.5, 15, 18, Contact Us for Other Gear Ratios

Note 1: Motor voltage, power, and speed can be customized according to customer requirements, provided the available size allows.

Dimension (Unit: mm)

Wiring Diagram of Motor

Note 2: Standard lead length: 300mm±10; Model: UL1015; Type: AWG20. Lead length and type can be customized according to customer requirements, provided the available dimensions permit.

Tips: Advantages of 120W 3200rpm High Speed DC Gear Motor

RDDLZ 120W 3200rpm high speed DC gear motor provides strong power for demanding loads, delivers fast rotation for quick response, and can be combined with a gearbox to achieve the right balance of speed and torque. It is efficient, durable, and suitable for industrial machinery, automation, and other high-performance applications.
