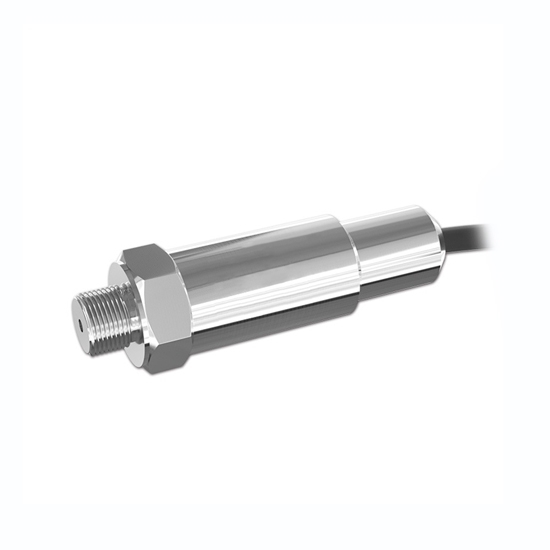

Buy an ambient pressure sensor for measuring temperature, air pressure, water pressure and hydraulic pressure at the same time. This integrated 4-20mA pressure transducer can provide high-quality pressure chip, anti-corrosion 304 stainless steel shell, and IP68 protection level.

Specifications

• Model: RDDLZ-SIN-PD500
• Measuring Range: Pressure: 0~600kPa~60MPa, Temperature: 0~80℃
• Overload Pressure: ≤1.5 times Full Scale
• Pressure Type: G (Gauge Pressure)
• Accuracy Level: Pressure: 0.5 Level, Temperature: 2.5 Level
• Long-Term Stability: ±0.2%FS/year
• Zero Drift: ±0.03%FS/℃
• Sensitivity Drift: ±0.03%FS/℃
• Power Supply: 12-30V DC
• Output Signal: 4-20mA
• Protection Level: IP68

Dimension (Unit: mm)

Tips: What is an integrated temperature and pressure sensor?

The provided pressure sensor is an integrated temperature and pressure sensor is a compact device that combines the capabilities of measuring both temperature and pressure within a single unit. This sensor is designed to provide simultaneous and accurate readings of temperature and pressure, making it particularly useful in applications where monitoring these two parameters is crucial. Integrated temperature and pressure sensors often utilize advanced microelectromechanical systems (MEMS) technology to achieve precise measurements. Commonly found in industrial, automotive, and environmental monitoring applications, these sensors contribute to efficiency and reliability by consolidating multiple sensing functions into a single device. Their compact design and the ability to measure two critical parameters make them valuable for various systems, including those in automotive engines, HVAC systems, and industrial process control.
