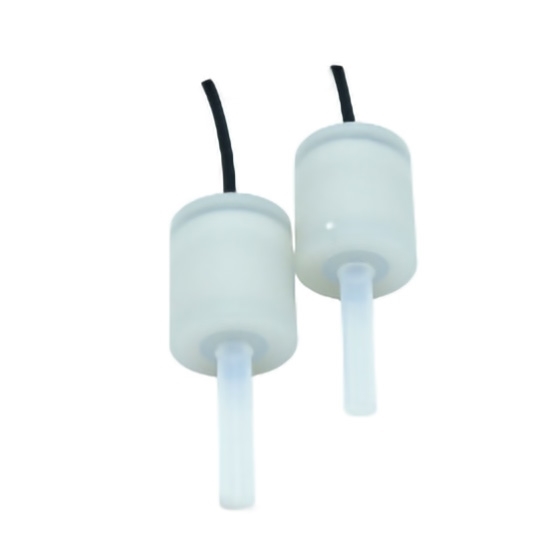

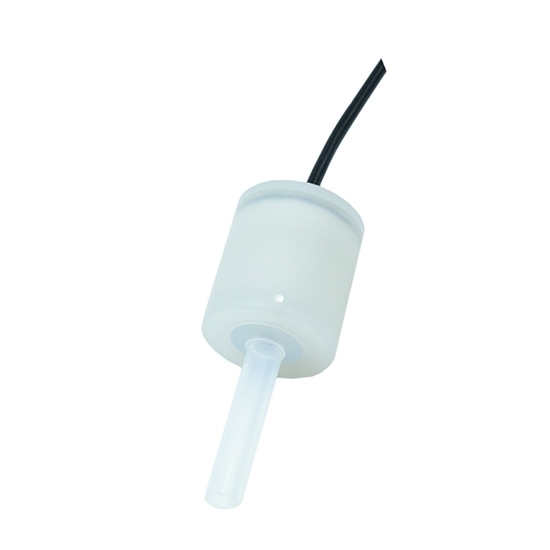

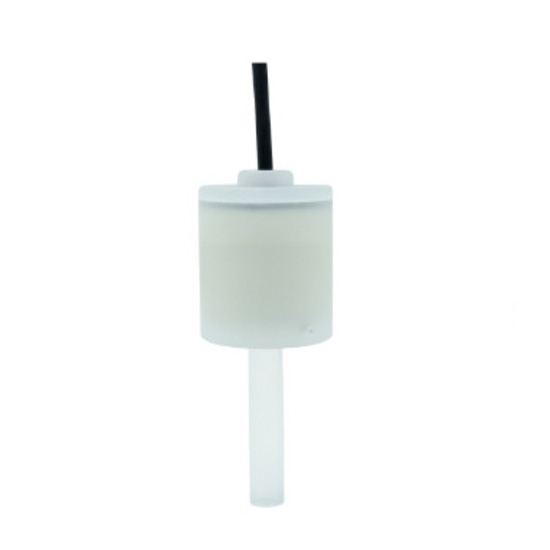

Anti-Corrosion Pressure Transmitter, 4-20mA Output

0 reviews • Write a review

from

$904.62

Ex Tax: $904.62

Stock: In Stock
Model: RDDLZ-PRES-PA708
Weight: 1.00
SKU: RDDLZ-PRES-PA708

Available Options

Power Supply

Output Signal

Measuring Range

Thread of Pressure Connection

Electrical Connection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

This anti-corrosion pressure transmitter uses a waterproof and breathable cable, which is anti-corrosion, moisture-proof, leak-proof, and tensile and durable, and is suitable for various complex working conditions. The range, output method, wiring method, electrical connection method, threaded connector style, etc. can all be customized according to needs. If necessary, please contact us for selection and customization.

Specification

Model	RDDLZ-PA-708
Range	-100~300KPa (other ranges please contact us)
Accuracy	0.5%FS (customizable)
Output	4-20mA (default), 0-5V, 1-5V, 0-10V and other customized
Power supply	5VDC, 24VDC, 9-36VDC (optional)
Process connection	G1/2, 1/2NPT, M20*1.5 (customizable)
Electrical connection	Large Hirschmann connector, direct lead (optional)
Load capacity	Current type: R=(U-8V)/0.02Ω
Temperature compensation	0~75℃
Operating temperature	-10~85℃
Safe overload	150%
Ultimate overload	200%
Temperature drift	0.02%FS/℃
Long-term stability	0.2%FS/year
Wetted material	PP, PVDF, PTFE, PFA, FFKM

Dimension (mm)

Wiring diagram

Applications

Tips: Advantages of anti-corrosion pressure transmitters

Excellent corrosion resistance: Using corrosion-resistant materials (such as stainless steel, titanium alloy, Hastelloy, etc.), it can work stably in corrosive gases and liquids for a long time.
High precision and long-term stability: The sensor has excellent linearity and repeatability to ensure accurate pressure measurement after long-term use.
Wide range of media compatibility: Suitable for corrosive gases, liquids and steam, covering a variety of complex media in the chemical, petroleum, pharmaceutical and other industries.
Waterproof and moisture-proof design: Adopting sealed structure and waterproof and breathable cable, it has good moisture and leakage resistance and adapts to harsh environments.
Rugged and durable, vibration and shock resistance: Adopting sturdy shell and anti-vibration structure, it has good resistance to mechanical shock and vibration, suitable for complex working conditions.
