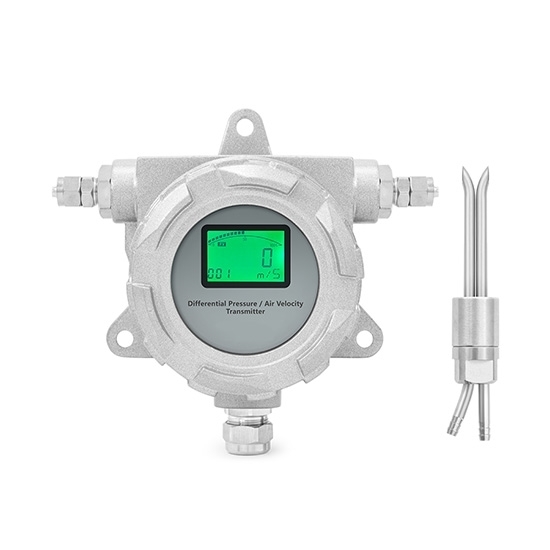

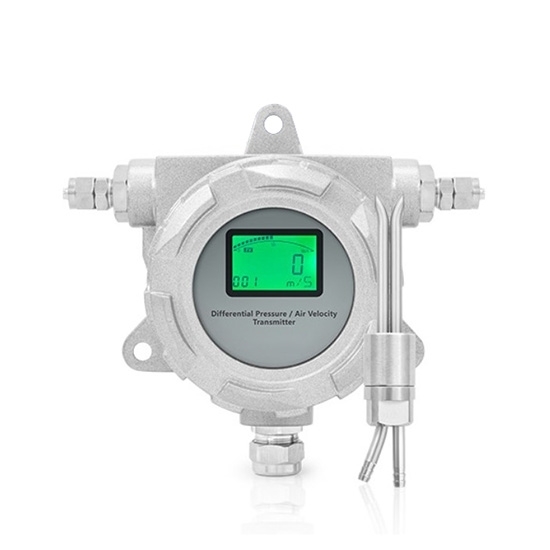

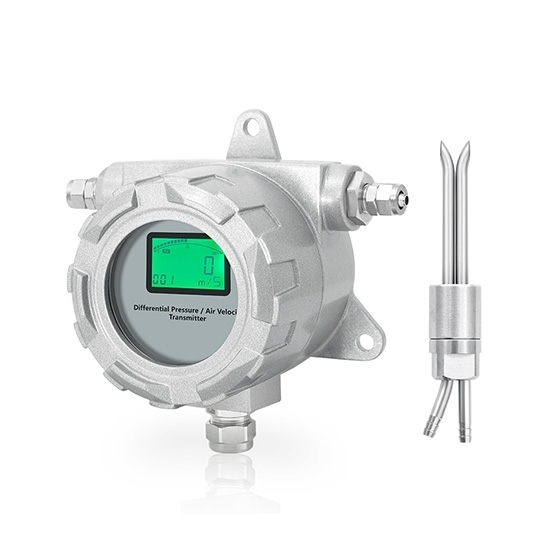

Explosion Proof Wind Speed Transmitter, 4-20mA/0-10V/RS485

0 reviews • Write a review

from

$498.76

Ex Tax: $498.76

Stock: In Stock
Model: RDDLZ-EWST-LFS71
Weight: 1.00
SKU: RDDLZ-EWST-LFS71

Available Options

Output Signal

Range

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The explosion-proof air velocity transmitter can convert the flow rate of gas into an electrical signal and transmit it to the control system. The wind speed range can be adjusted using the zero point button on site.

Features

Explosion-proof wind speed transmitter adopts a high-precision MEMS micro-pressure core, high precision and wide operating temperature range.
The air velocity transmitter is equipped with an LCD digital display, which has a clear display and is convenient for real-time monitoring of wind speed data.
The wind speed transmitter provides an on-site zero point button and an adjustable wind speed range to meet different application requirements.
The explosion-proof duct air velocity transmitter has strong stability, long service life, and reduces maintenance costs.
It uses an IP65 protection grade housing and has good dust and water resistance.

Specification

Model	RDDLZ-LFS71
Medium	Air or neutral gas
Range	Speed: 0~10m/s,0~20m/s,0~30m/s, 0~40m/s (Range can be customized)
Over Voltage	10KPa
Accuracy	±3.0%FS (speed >3m/s)
Operating Temperature	Host machine: -20℃~80℃
Operating Temperature	Probe: -40℃~450℃
Compensation Temperature	-10℃~60℃
Storage Temperature	Host machine: -40℃~85℃
Response Time	0.5s (default) /1.0s/2s/4s
Protection Grade	IP65
Pressure Connection	Stainless steel 1/2" quick connection
Signal Output	4-20mA/0-10VDC/RS485
Power Supply	12~30VDC/24VAC±20%
Power Consumption	≤1.5W
Shell Material	Cast aluminum
Communication	RS-485 standard interface, Modbus RTU protocol
Certificates	ROHS, CE
Explosion-Proof Grade	EX db IIC T6 Gb
Display	LCD digital display
Weight (Approximate)	Host machine: 1238g

Dimension (mm)

Wiring diagram

Note: Wiring should be done by qualified technicians. When wiring, the transmitter must stop supplying power.

Installation and wiring steps

Note: Wiring wire diameter D must meet: 7mm≤D≤12mm

Installation

Applications

Tips: Maintenance of the explosion-proof wind speed transmitter

Use a dry or slightly damp soft cloth to wipe to prevent dust and oil from affecting the performance of the equipment.
Ensure that the wiring terminals are firm to avoid looseness or oxidation that causes unstable signal transmission.
Regularly clean dust or foreign matter on the sensor probe to ensure measurement accuracy.
If measurement deviation is found, the on-site zero button can be used for adjustment to ensure accurate data.
Regularly check the integrity of the housing to ensure that the explosion-proof performance is not damaged and to ensure safe operation.
