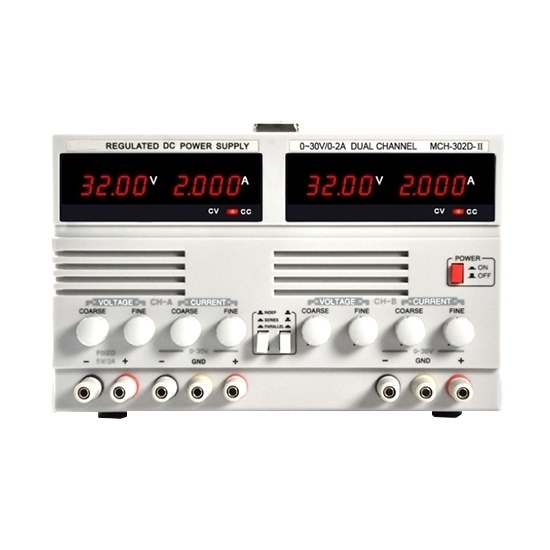

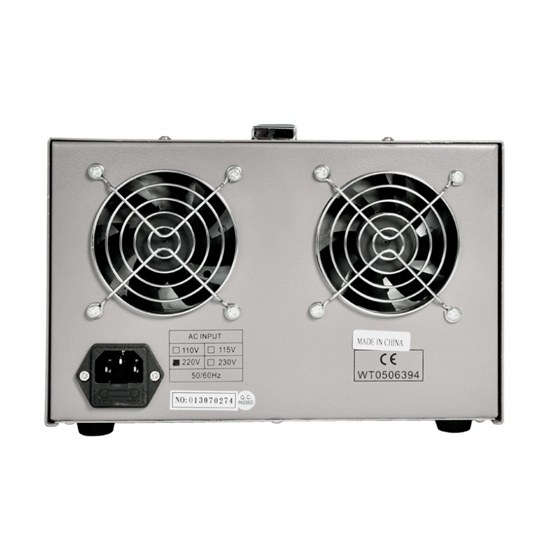

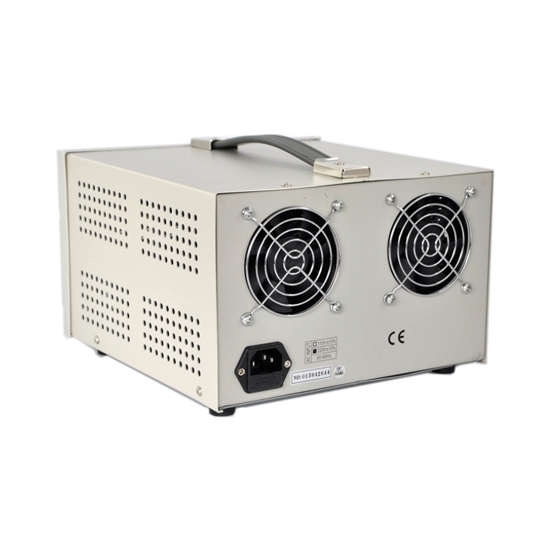

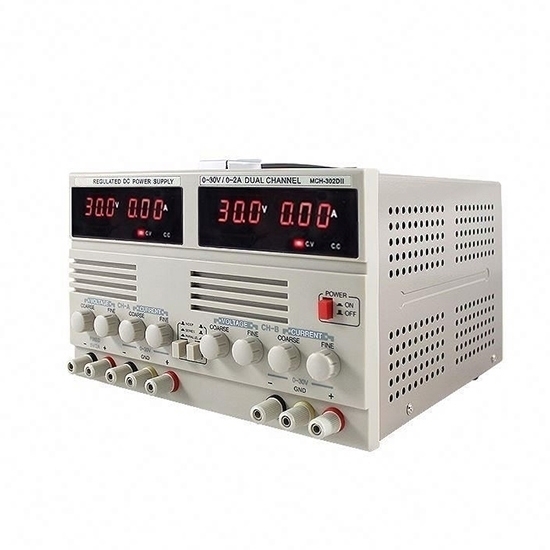

2A/3A/5A 30V Adjustable DC Power Supply, 2-Channel

0 reviews • Write a review

from

$415.78

Ex Tax: $415.78

Stock: In Stock
Model: RDDLZ-DCPS-0205
Weight: 1.00
SKU: RDDLZ-DCPS-0205

Available Options

Input Voltage

Output Current

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Features

High precision dual adjustable 0-30V output DC power supply
Available with 0-2A/ 0-3A/ 0-5A adjustable current for selection
Optional 110V/220V AC input voltage and equipped with fixed 5V/2A output
Constant voltage and constant current operation mode (C.C and C.V automatic conversion)
Independent, series and parallel modes
Voltage and current continuously variable within nominal value
LED display allows you to see the voltage and current in an easy-to-read interface

Specifications

Model	RDDLZ-302D-Ⅱ	RDDLZ-303D-Ⅱ	RDDLZ-303D-Ⅱ
Output Voltage	0-30V	0-30V	0-30V
Output Current* (Optional)	0-2A	0-3A	0-5A
Output Power	60W	90W	150W
Input Voltage	110V or 220V AC (+/- 10%)
Frequency	50Hz/60Hz
Output Type	Dual channel
Display	4-digit voltage and current LED display
Source Regulation	CV≤0.01%+2mV, CC≤0.2%+2mV
Load Regulation	CV≤0.02%+3mV, CC≤0.2%+3mV
Ripple & Noise	≤2mV (rms)
Temperature Coefficient	≤3000PPM/℃
Fixed Output	5V/2A
Overall Protection	Yes
Operating Condition	-10℃~40℃, Moisture<90%
Storage Condition	-20℃~80℃, Moisture<80%
Certification	CE, RoHS
Warranty	12 months
Other	Independent, series, and parallel modes
Size	260 (W) x 165 (H) x 300 (D) mm
Weight	Appro 10kg

Details

Tips:

DC power supply generally has multiple outputs: For example, one fixed output is 5V, 2A, two adjustable outputs (CH1, CH2) are 0-30V, 0-5A. The adjustable output generally has two working modes of constant voltage and constant current. These two working modes are automatically converted with the change of load. The LED on the front panel of the instrument shows the CV and CC modes, the green light shows the CV (constant voltage) and the red light shows the CC (constant current). Some regulated power supplies also provide CH1 and CH2 series operation and master-slave tracking mode. If CH1 circuit is the main circuit and CH2 circuit is the slave circuit, the output voltage of the slave circuit will change with the main circuit when tracking the working mode, which is more suitable for occasions requiring symmetrical bipolar power supply. If CH1 and CH2 are connected in series, 0-60V and 0-5A DC power supply can be output. In series tracking mode, 0-±30V and 0-5A DC power supply can be output.
