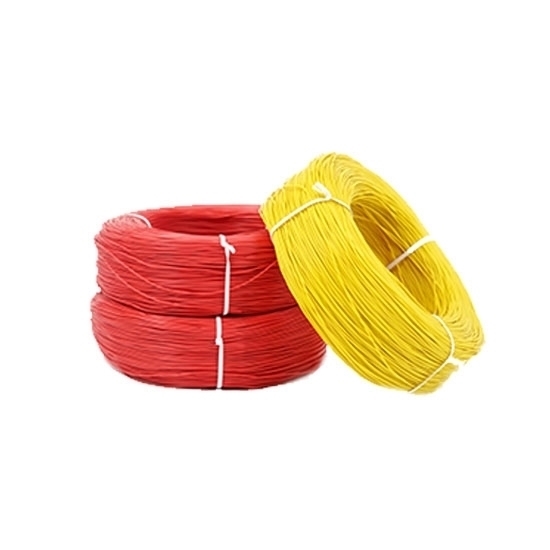

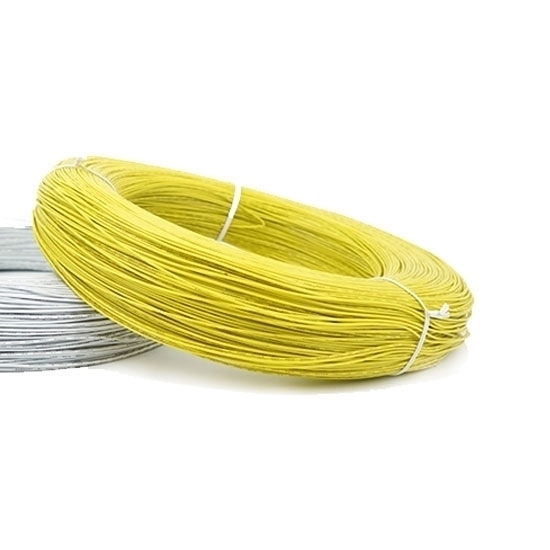

20AWG Hook-Up Wire, UL1007, 300V, 2000 Ft

20AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
20AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
20AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
20AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
20AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
0 reviews • Write a review
from
$209.79
Ex Tax: $209.79
  • Stock: In Stock
  • Model: RDDLZ-UL1007-20
  • Weight: 1.00
  • SKU: RDDLZ-UL1007-20

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

ModelRDDLZ-UL1007-20
UL Style1007
Size20 AWG
Rated Voltage300V
Color (Optional)White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature80 ℃
ConductorTinned/ Bare Copper
Conductor TypeStranded
Conductor Size (±0.005）NO. 21/ 0.18mm
Conductor Resistance 20℃36.70 Ω/km
Conductor Diameter0.95mm
InsulationPVC
Insulation ThicknessNom.0.40mm
Min.0.33mm
Overall DiameterAverage1.75mm
Tolerance±0.1mm
Package2000 ft/roll
Weight7kg

Details

Tips: Difference between cable and wire

A cable is made of several or groups of wires that are insulated from each other, twisted around a central wire and covered with a high insulation layer. The processing starts from the conductor, and the cable products are wrapped with insulation, shielding, cable forming and protective layer. The more complex the product structure is, the more layers it is.

A wire is a conductor of metal that carries an electric current. Wires come in several forms, such as stranded or foil braided. According to the insulation condition, there are two kinds of bare wire and insulated wire. The length of the flexible cylindrical conductor is larger than its cross section size.
