1.5 Hp Piston Air Motor, 360 Rpm, 985 L/min

0 reviews • Write a review

from

$2,214.29

Ex Tax: $2,214.29

Stock: In Stock
Model: RDDLZ-DAM7
Weight: 1.00
SKU: RDDLZ-DAM7

Available Options

Installation

Parameter Shaft

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1.5 hp piston air motor with gear ratio 1:1, starting torque 44.7 Nm, stopping torque 54.1 Nm. The piston type air motor has the advantages of simple structure, small size, light weight, large horsepower, easy operation and long service life.

Specification

Model	RDDLZ-DAM7
Power	1.5 hp
Gear ratio	1:1
Rated speed	360 rpm
Rated torque	28 Nm
Max. no-load speed	560 rpm
Air consumption	985 L/min
Starting torque	44.7 Nm
Stopping torque	54.1 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

Dimension

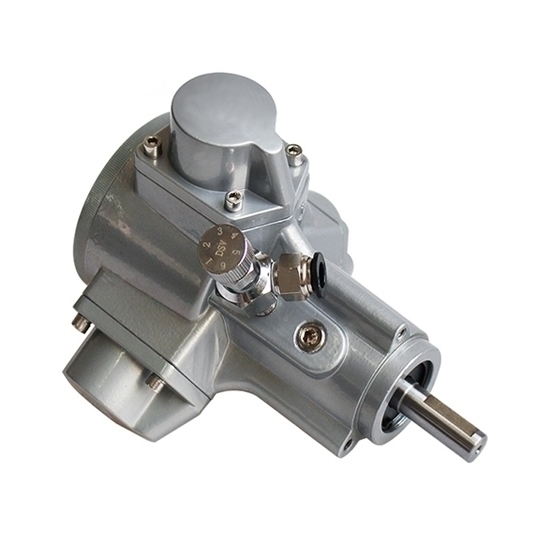

Basic type

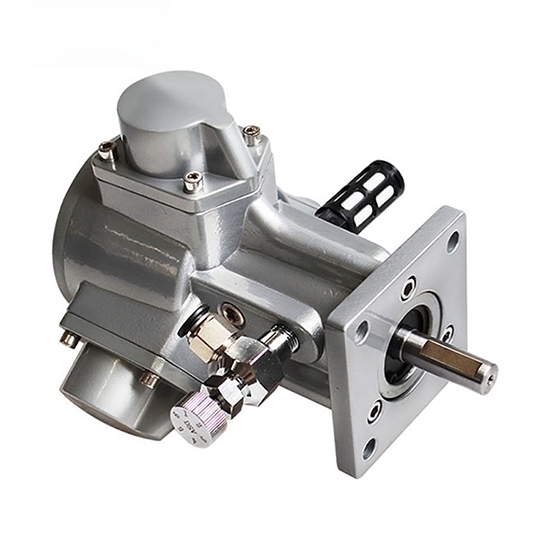

Flange type

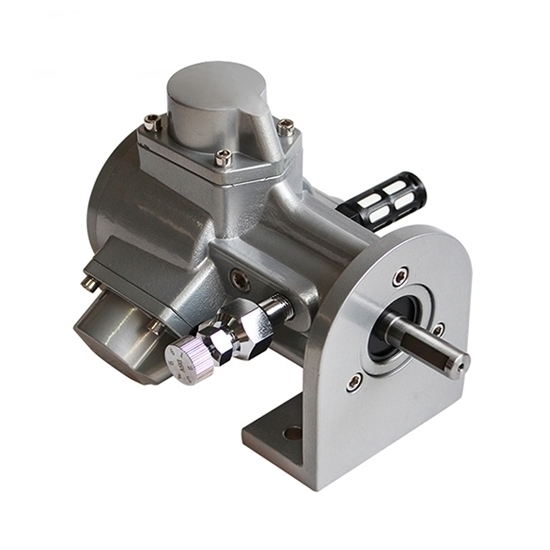

Foot type

Model

Dimension (mm)

RDDLZ-DAM7

288

275

260

275

220

24/19

100

80h7

200

165

185

150

110

30.9

140

Details

Tips: Faults and troubleshooting methods of Piston Air Motor.

Increased air consumption.
1. Reason analysis.
(1) The cylinder, piston ring, and valve sleeve are worn.
(2) Air leakage in the piping system.
2. Elimination method.
(1) Replace parts.
(2) Check and repair the gas circuit.
