1/2 Hp Piston Air Motor, 750 Rpm, 397 L/min

0 reviews • Write a review

from

$1,029.37

Ex Tax: $1,029.37

Stock: In Stock
Model: RDDLZ-DAM5
Weight: 1.00
SKU: RDDLZ-DAM5

Available Options

Installation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Good price piston air motor with max. no-load speed 1500 rpm, starting torque 4.71 Nm, stopping torque 5.88 Nm, free shipping and manufacturer direct sale. Cheap pneumatic piston motor offers low noise, light weight and long service life advantages.

Specification

Model	RDDLZ-DAM5
Power	1/2 hp
Gear ratio	1:1
Rated speed	750 rpm
Rated torque	2.94 Nm
Max. no-load speed	1500 rpm
Air consumption	397 L/min
Starting torque	4.71 Nm
Stopping torque	5.88 Nm
Mounting type	Basic type/ flange type/ foot type
Certificate	CE
Warranty	12 months

Dimension

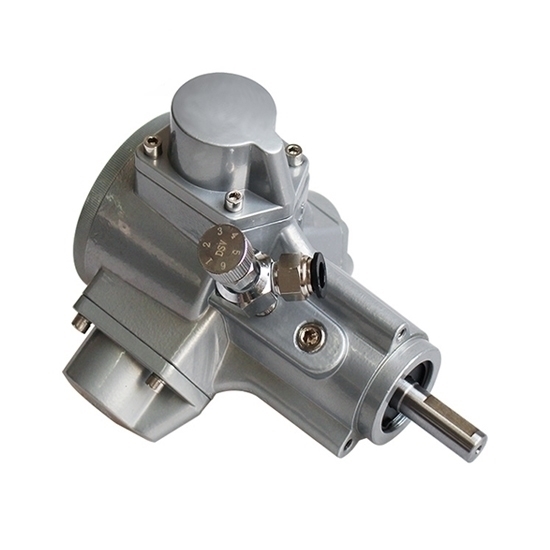

Basic type

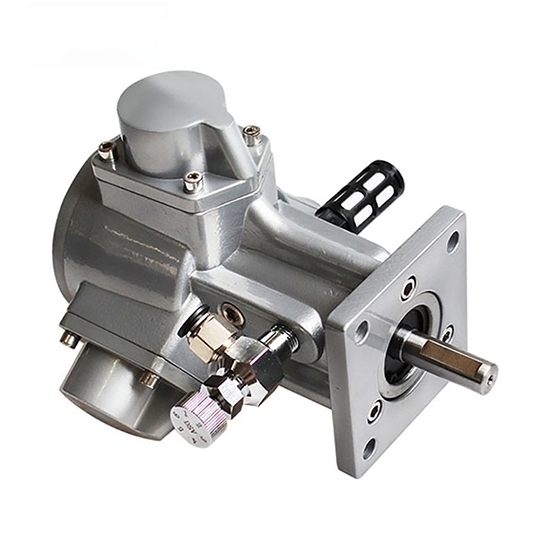

Flange type

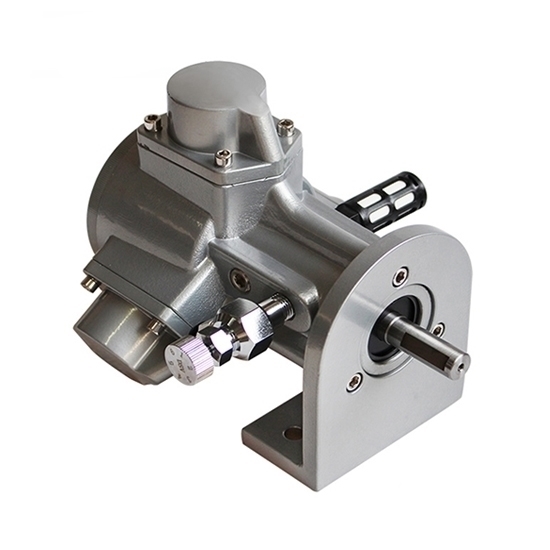

Foot type

Model	Dimension (mm)
Model	A1	A2	A3	A4	B	C	C1	D	E	F	G	H	J	M	N	M1	N1	M2	N2	Q	Q1	P
RDDLZ-DAM5	237	196	190	195	175	16	80	14	4	46	M6	62h7	30	106	80.5	130	100	70	42	9	9	95

Details

Tips: Faults and Troubleshooting Methods of Piston Air Motor.

Suddenly slow down or not rotate during operation.
1. Reason analysis.
(1) Poor lubrication.
(2) The valve is stuck and burned.
(3) The crankshaft, connecting rod, and bearing are damaged.
(4) The cylinder screw is loose.
(5) The gas valve is blocked and desoldered.
2. Elimination method.
(1) Refueling.
(2) Replacement.
(3) Tighten.
(4) Resoldering.
